Scotsman CU50PA1C - Cabinet Layout

CU50
Service Manual
March 2010
Page 3

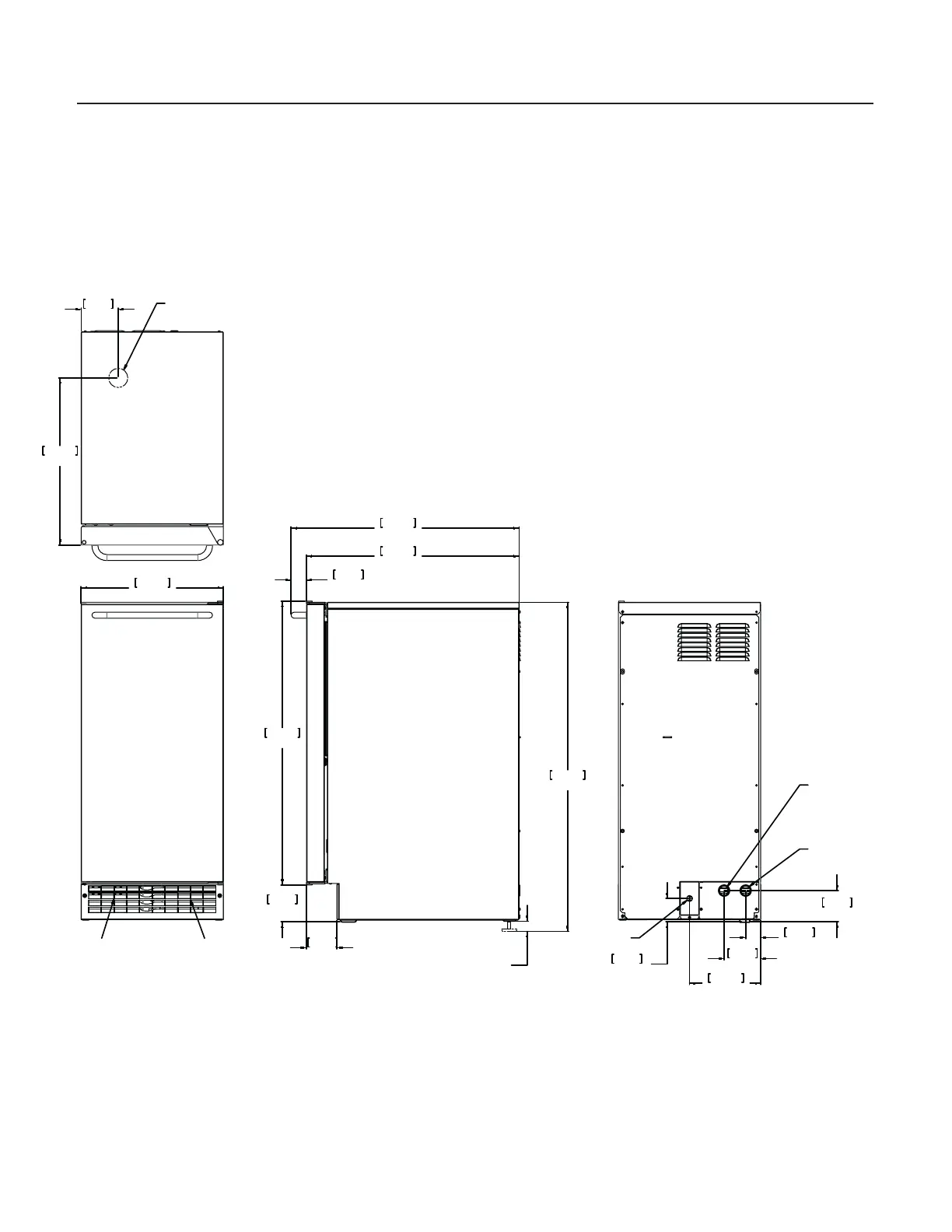

Cabinet Layout
1.00
LEG
ADJUSTMENT
[25.40]
14.88
377.95
AIR OUT
AIR IN
3.88
98.55
17.45
443.23
FLOOR DRAIN
ACCESS HOLE
34.38
873.25
3.85
97.79
29.66
753.24
22.29
566.17
23.89
606.68
1.60
40.51
3.20
81.28
3.27
82.99
2.44
62.04
1.57
39.75
7.44
188.98
3.83
97.16
115 V
POWER CORD
POTABLE WATER INLET
4/1" COMPRESSION FITTING
DRAIN
FLEXIBLE TUBING
8/3 I.D. PUMP MODEL (INCLUDED)
8/5 I.D. GRAVITY MODEL (NOT INCLUDED)
