NUDE 2 SHOCK AND TWINLOC XL REMOTE
CONTROL LEVER

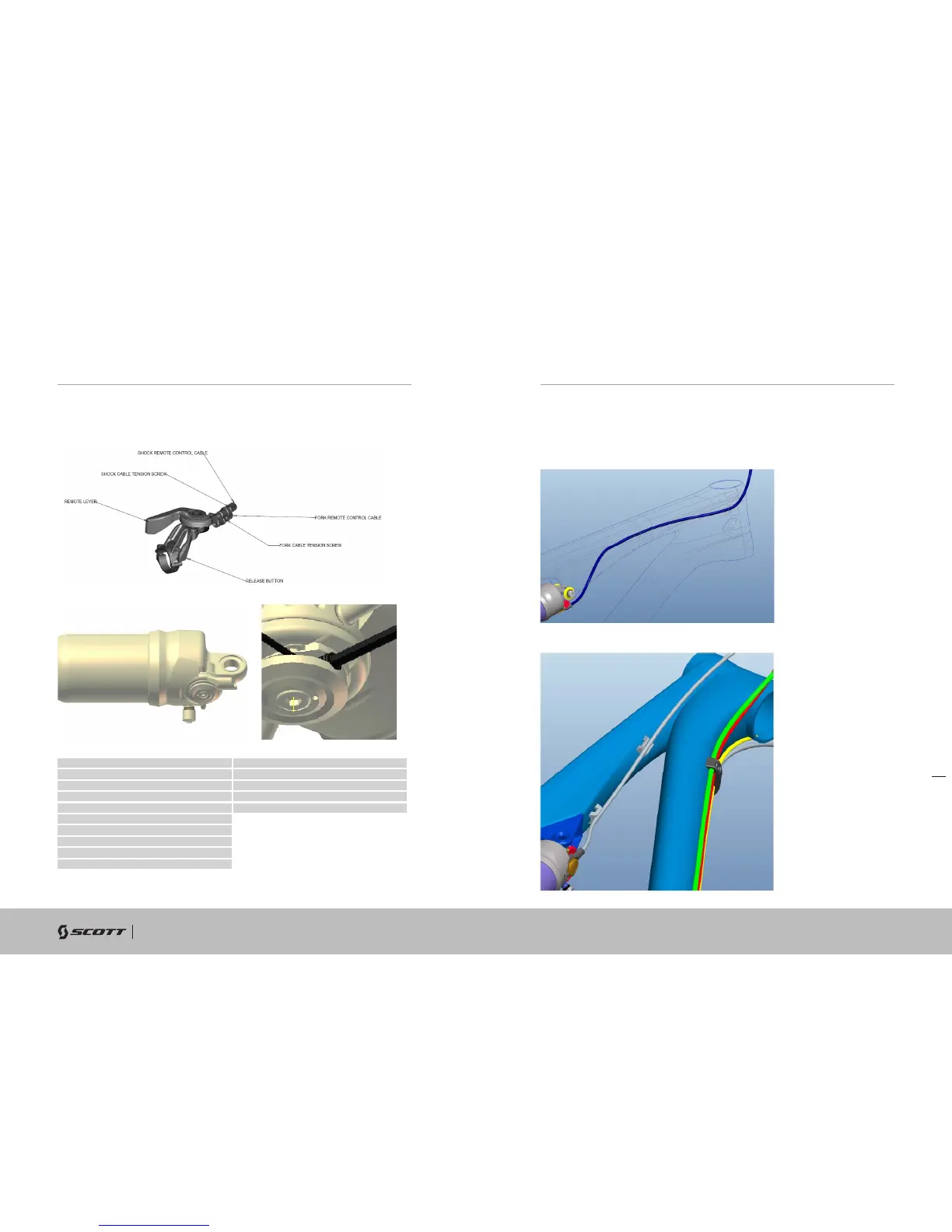

In the drawing of the shock and remote lever, shown below, you will see the parts
indicated with numbers which will be used in the manual for the adjustment and set-
up.
BASIC SET-UP OF THE TWINLOC XL REMOTE
CONTROL OF NUDE 2 SHOCK
To ensure perfect function of the Nude 2 TC shock it is very important to follow the
steps shown below exactly.
On Genius Carbon frames you will find an internal cable routing.
Push the inner cable first through the remote lever in the upper cable routing of the
lever and then through the cable housing as shown below inside the toptube.
On Genius alloy frames a regular outside cable routing, the outer cable housing is fixed
on cable mount ports with cable zippers.
S1 Front eyelet/ Shock Bolt L1 Remote Lever
S5 Positive Chamber Valve
S8 Shock Piston
S3 Shock Housing L3 Remote Control Cables
S7 Cable Fixing Screw (hidden behind remote
S2 Rear eyelet/ Shock Bolt L2 Release button
S6 Remote Control Wheel
S4 Rebound-Adjuster Knob L4 Cable Tension Screw Fork Remote
wheel)
L5 Cable Tension Screw Shock Remote
S9 SAG Indicator (o-ring on piston)
