Open 2.0
EN
KIT CONTENTS
OPEN 2.0 SCRIGNO is a complete automation kit for sliding interior doors, suitable for installation on Scrigno Base, Essential
Pro and Doortech frames; it can be easily installed on existing doors, and does not require masonry work.
It is characterized by minimal overall dimensions (only 55mm in width) and allows easily moving any sliding door up to a
maximum weight of 80kg.
OPEN 2.0 SCRIGNO is the ideal solution for all openings where intensive use is not required, but the absolute invisibility of
the system is a must; the motorization, in fact, is fully integrated into the Scrigno frame.
Main functions:
• Travel self-learning
• SOFT START/STOP, to move the door smoothly, making it slow down and gently rest against the opening and closing
upright.
• Manual operation by means of 1 or 2 buttons.
• PULL & GO operation: just pull lightly on the door to activate automatic operation.
• Automatic operation by radar or other opening device providing a Normally Open (NO) contact.
• Automatic door reclosing, with predefined delay (2, 5 or 10 seconds).
• Input for safety photocell.
• 4 presets for door weights from 15 to 80kg.
• Electric lock input.

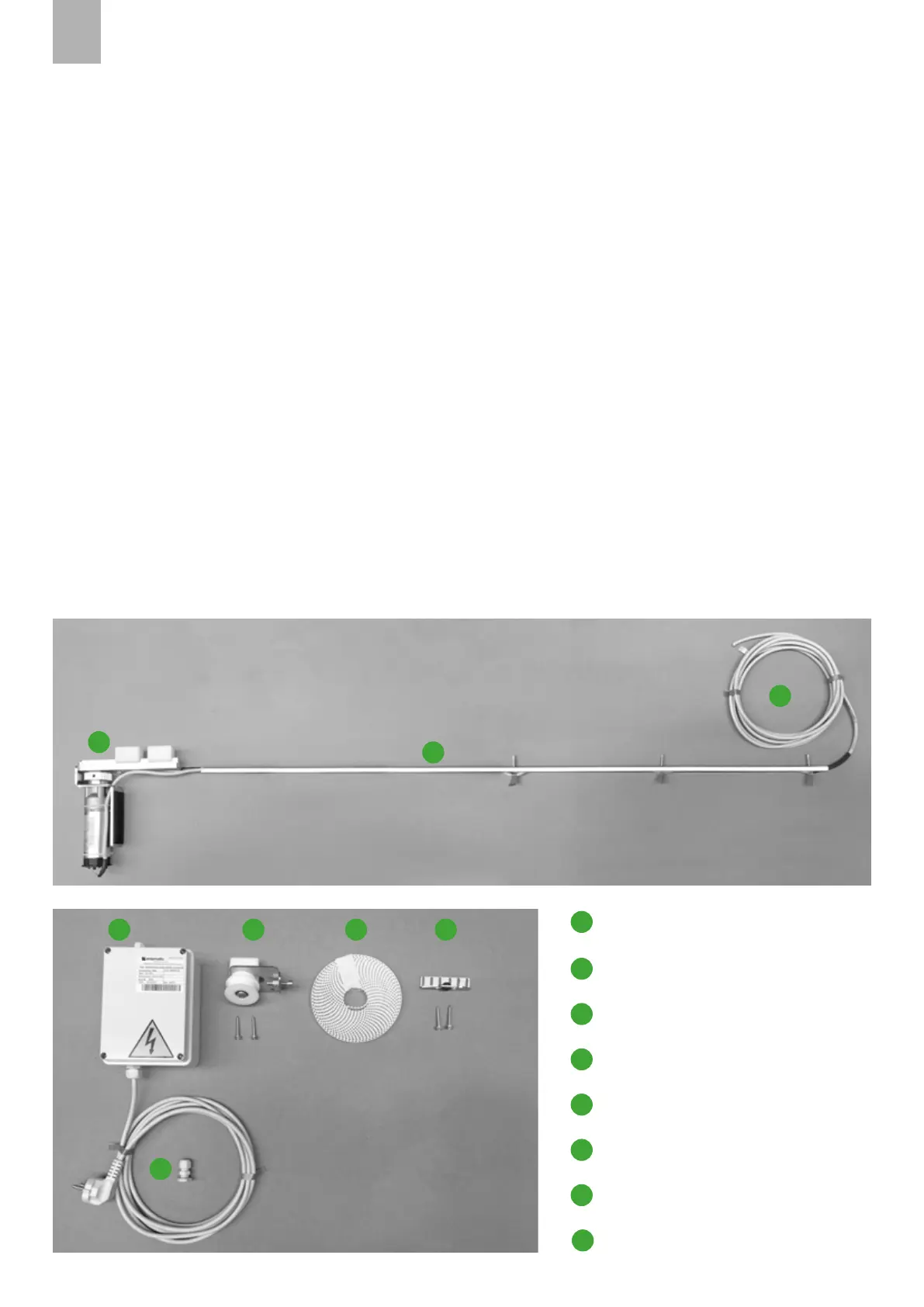

KIT DESCRIPTION
A
Gearmotor with bracket for fastening to
the rail
A
Motor cable L. 4.5m
B
Locking rod with screws
C
C
Control unit with 2 metre power cable
D
B
D
H
Watertight PG connector
H
L-shaped joining and movement bracket
G
E F
Driven pulley with belt tensioner
E
G
Drive belt L. 4.90m
F
To Next Page
