Open 2.0
EN

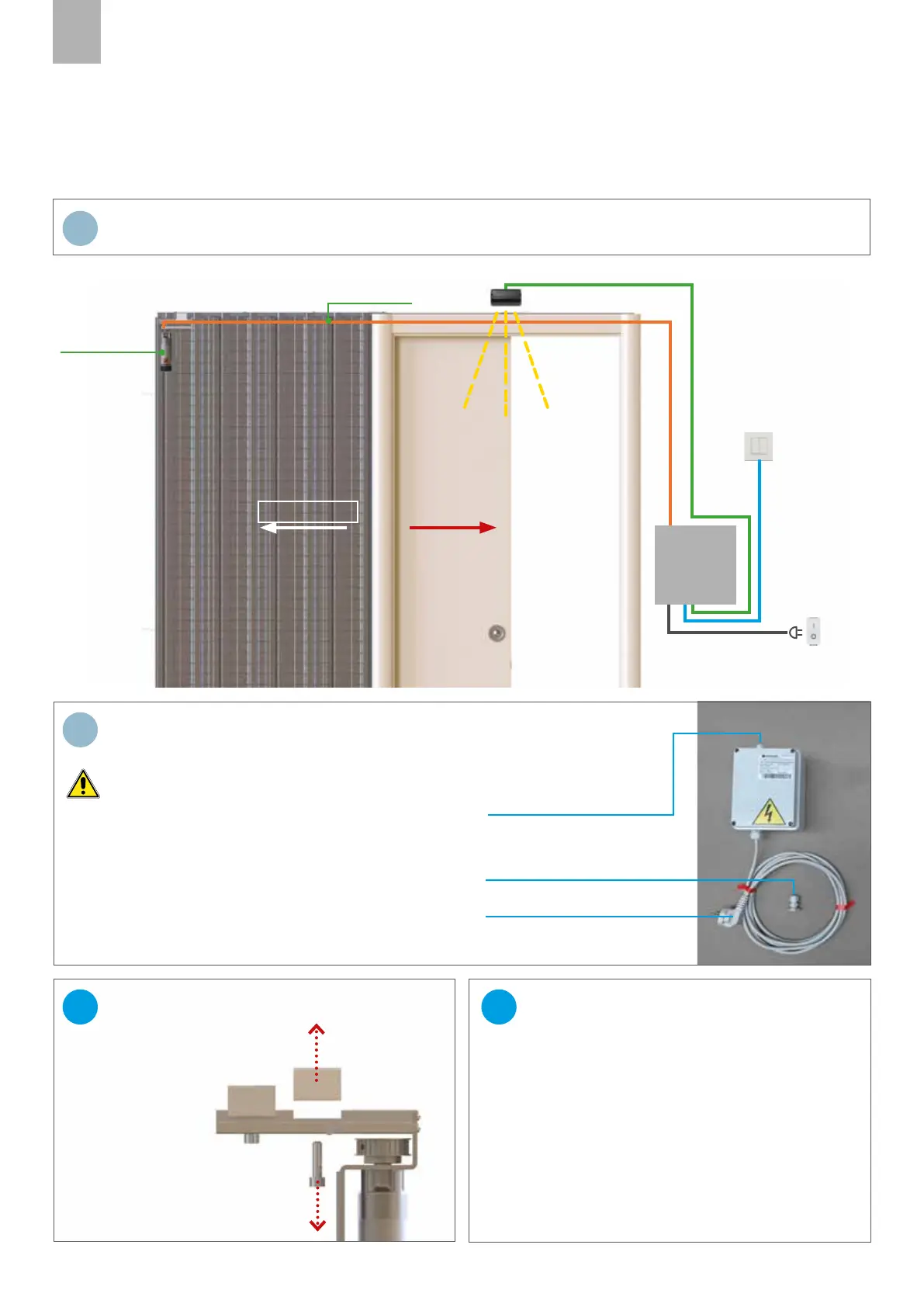

INSTALLATION STEPS
The motor must be installed in the rail head where the door opening upright is located.
Remove the door, the hangers and the upright (if fitted), before starting to install the kit
G
DOORTECH version:
Remove both blocks and replace them with
those for the Doortech version.
Fit the front block back on.
Pushbuttons
(optional)
230V
Radar detector (optional)
OPENING
Motor cable
Motor
Electronics
1a
Bipolar
Switch
ELECTRICAL PREPARATION
PG CONNECTOR for BUTTON
CABLE (not supplied)
Note: The cable outlet position may dier from the one
shown alongside.
Caution: the electrical preparation operations must
only be performed by skilled personnel
Position the junction box in an accessible position, in the
door closing upright area, making sure that the motor
cable length is sucient.
The cable may not be extended or spliced!
MOTOR CABLE INLET
230V POWER CABLE
H
2
Remove the rear block.
1
CLOSING
