__________________ Vortex M6
10

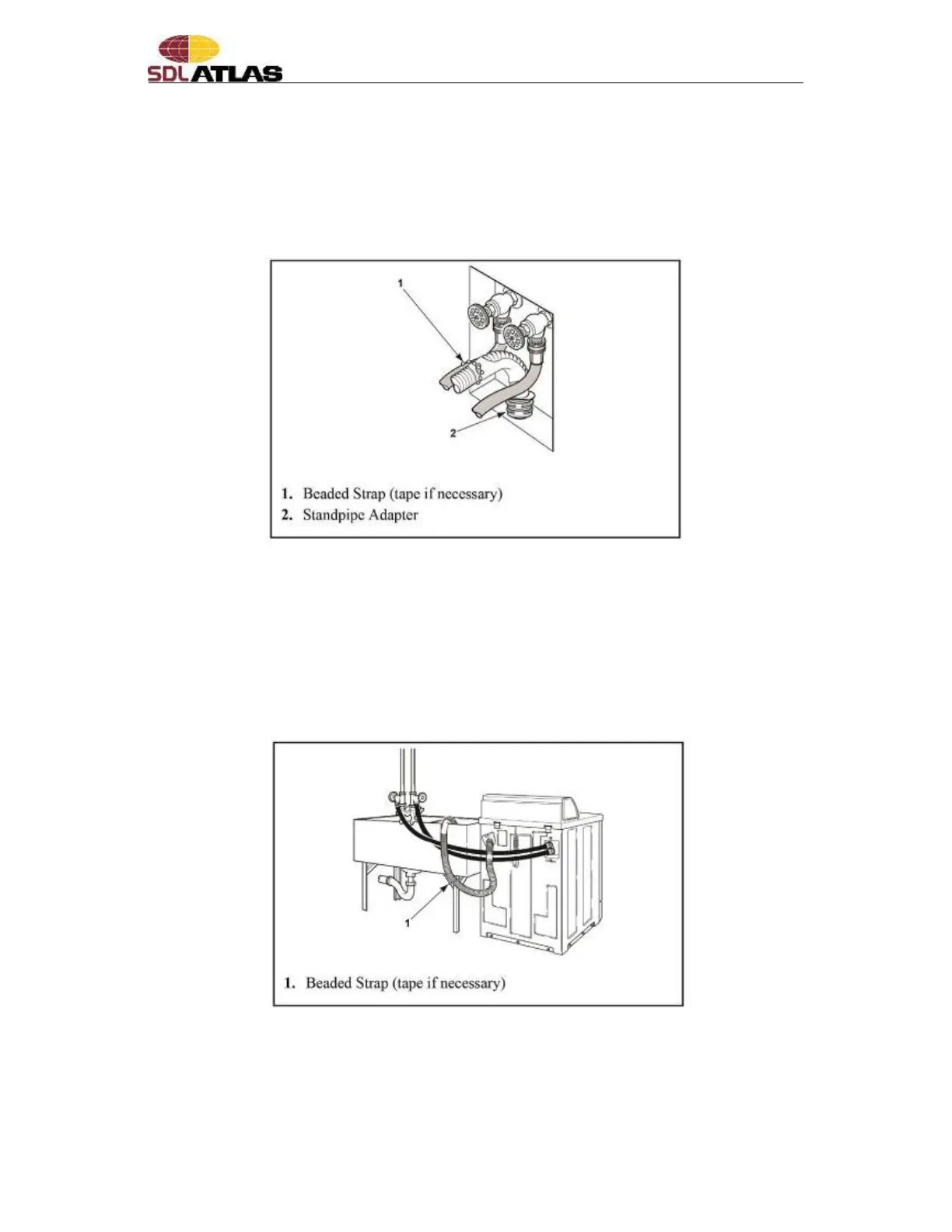

WallInstallation

Forinstallationsofthistype,thedrainhoseMUSTbesecuredtooneofthefillhosesusing
thebeadedstrapfromaccessoriesbag.

NOTE:Endofdrainhosemustnotbebelowheightofcabinettop




LaundryTubInstallation

Forthistypeofinstallation,thedrainhoseMUSTbesecuredtothestationarytubtoprevent
hose from dislodging during use.  Use the beaded strap (supplied in accessories bag) to
securehose.Werecommendleavingthestandpipeadapteronthedrainhoseforthistype
ofinstallation




