SDL Atlas Vortex M6 - Instrument Positioning and Leveling

__________________ Vortex M6
11

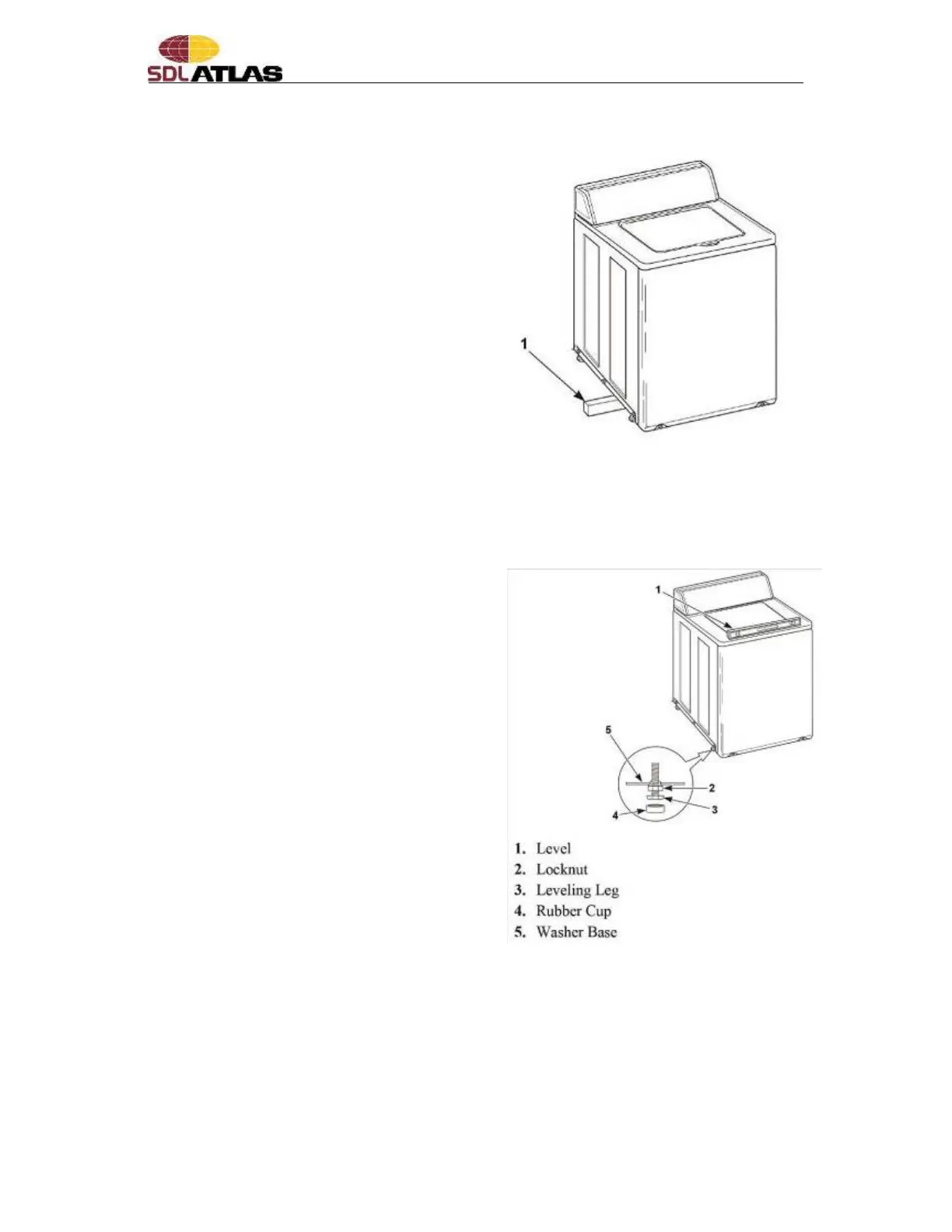

3.4.5 PositionandleveltheVortexM6.

3.4.5.1 Positiontheinstrumentsoit
has sufficient clearance for
installationandservicing.

3.4.5.2 Place the instrument in
positiononaclean,dry,and
reasonably firm floor.
Installing the Vortex M6 on
anytypeofcarpetingisnot
recommended.

3.4.5.3 Foreasieraccesstoleveling
legs,propuptheinstrument
withawoodenblock


3.4.5.4 Placerubbercups(fromaccessoriesbag)onallfourlevelinglegs.

3.4.5.5 Place a level on the
cabinet top and check if
theVortexM6islevel
fromsidetosideandfront
toback.

3.4.5.6 If the instrument is not
level, tilt it back to access
the front leveling legs.
Loosenthelocknutsand
adjust legs by screwing
intooroutofthebase.

3.4.5.7 Once adjusted, tilt the
instrument forward on
front legs and lower back
down into position to set
therearself‐levelinglegs.

3.4.5.8 TheVortexM6mustnotrock.Whentheinstrumentislevelanddoes
notrock,tightenlocknutssecurelyagainstbottomofitsbase.Ifthese
locknuts are not tight, the instrument will not remain stationary
duringoperation.

