Carburetor and Oil Injection Pump

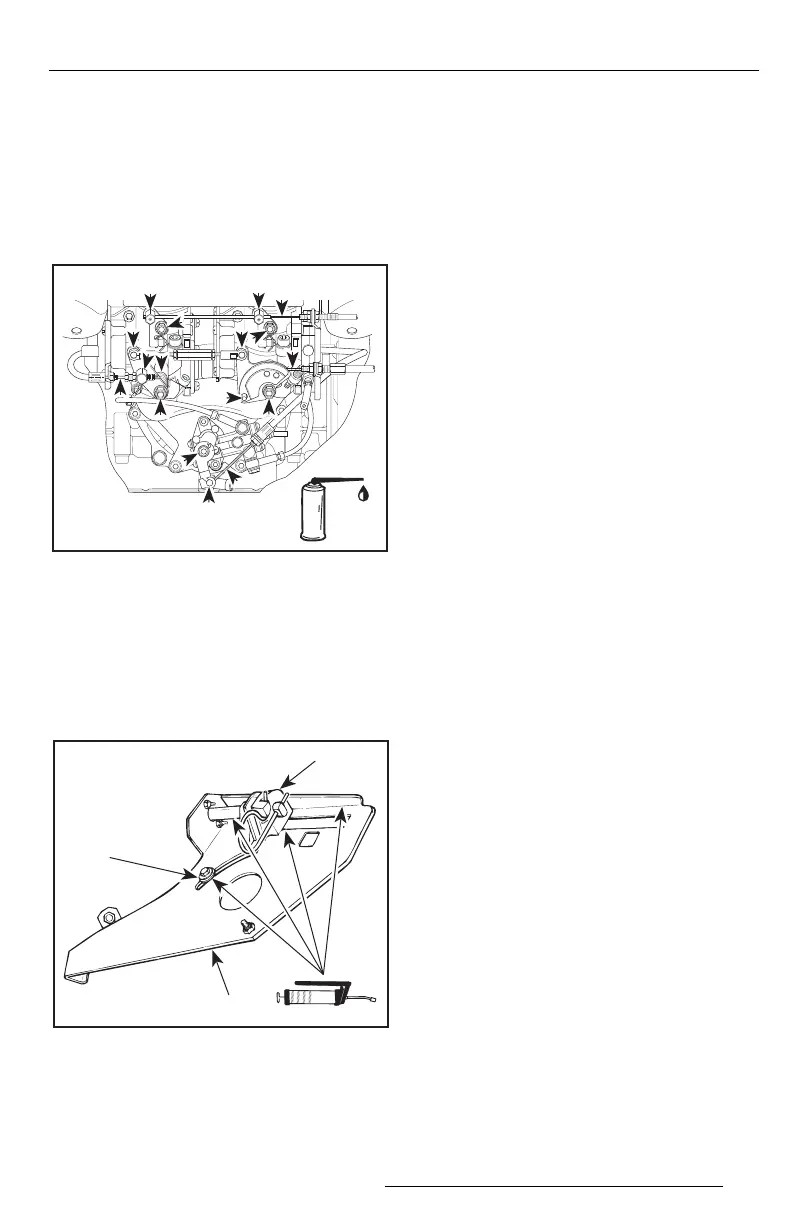

Lubricate springs, shafts and exposed
portion of cables.
NOTE: Grease carburetor linkage
with synthetic grease (twin
carbs).
TYPICAL
Reverse System (GTS Model)
Lubricate support plate sliding area of
sliding block and triangular lever with
synthetic grease.
Also lubricate sliding washer and se-
lector lever stem.
1. Sliding block
2. Sliding washer
3. Support plate
Periodic Inspection
Routine maintenance is necessary for
all mechanized products. A periodic in-
spection contributes to the product’s
life span.
The following maintenance chart
gives guidelines for regular watercraft
servicing scheduled to be performed
by you and/or by an authorized dealer.
The schedule can be adjusted accord-
ing to operating conditions and use.
IMPORTANT: Schedule for water-
craft rental operations or higher
number of hour use, will require
greater frequency of inspection and
maintenance.
'
