75

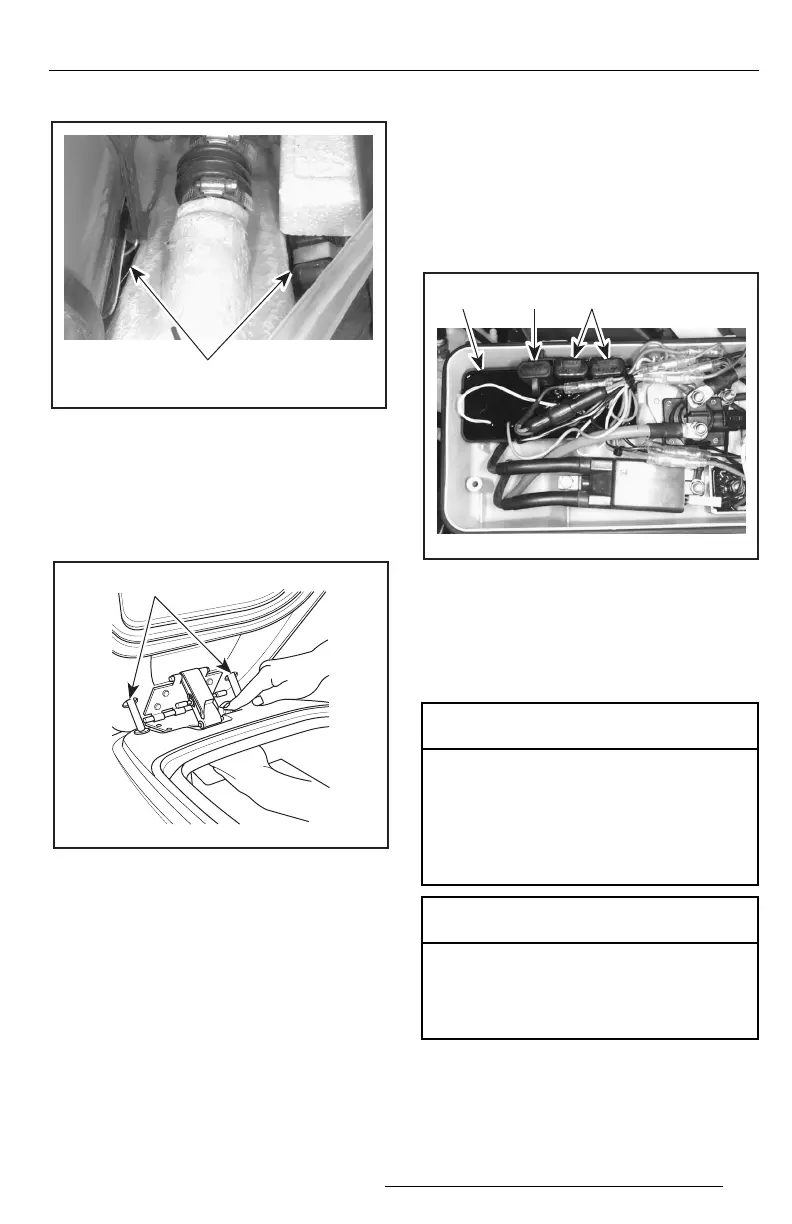

1. Vacuum bailer pick-ups location
Water Tank Trap Drains
(GTS Model)
Open storage cover and check for
possible obstructions at drain outlets.
1. Outlets
Fuses
All Models Except SPX
The electrical system is protected
with 2 fuses.
A 15 A fuse protects the charging sys-
tem. If the battery is regularly dis-
charged, check fuse condition.
A 5 A fuse protects the starting sys-
tem, accessories and controls. If start-
er does not operate, check fuse condi-
tion.
All fuses are located in the electrical
box.
To access fuses, unclip and move
away electrical box from its seat.
Open the electrical box.
Remove fuse caps.
1. Fuse caps
2. Spare fuse holder
3. MPEM
If defective, replace the fuse by one of
the same rating. Make sure to proper-
ly close the fuse cap.
Properly close the electrical box cover
making sure its seal is well positioned.
F05L12Y
1
F02L0ZY
1
-
CAUTION
Do not use a higher rated fuse as
this can cause severe damage.
Refer to SPECIFICATIONS section
for recommended fuse rating. If a
fuse is regularly burnt, see an au-
thorized dealer.
◆
WARNING
If any water is found in the elec-
trical box, immediately refer to
an authorized dealer before oper-
ating the watercraft.
F01H5IY
123
