74
TYPICAL

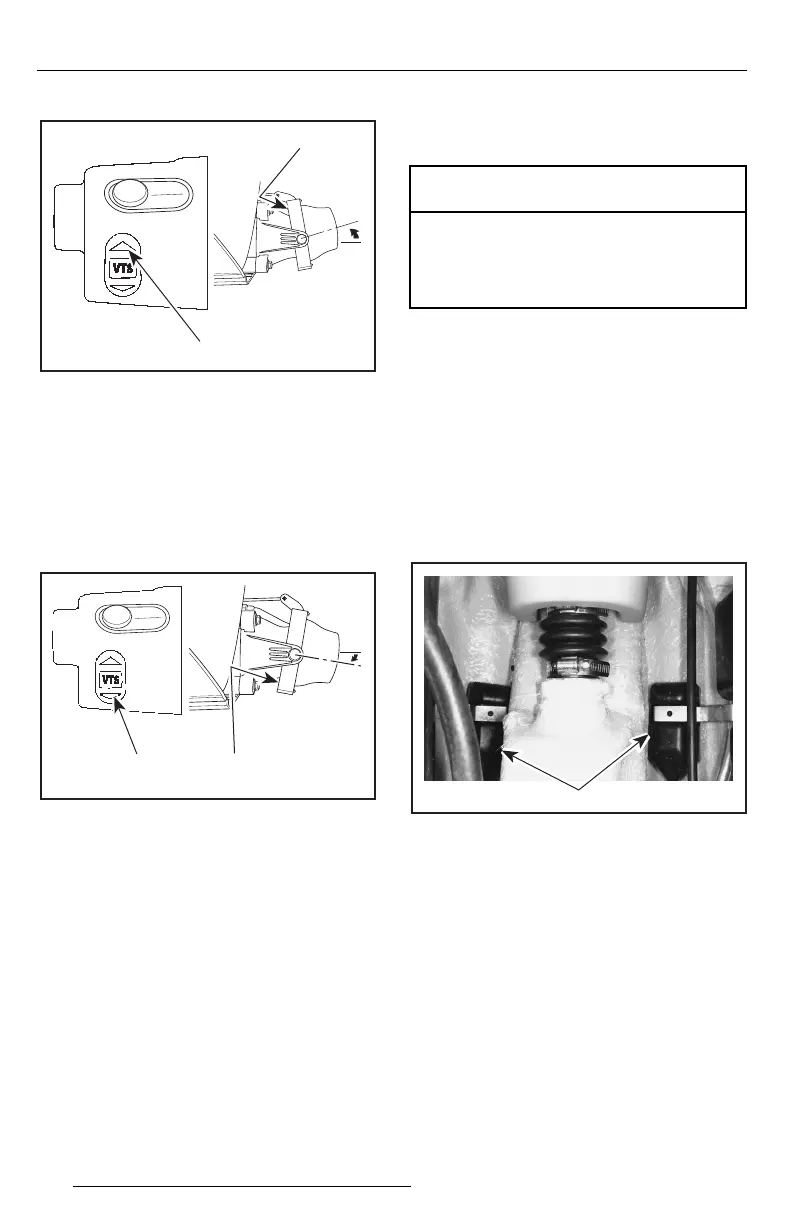

1. Push on arrow pointing upward on VTS
button
2. No interference
3. Nozzle up
Push on arrow pointing downward on
VTS button until VTS stops. The nozzle
must be down (10°) and it must not in-
terfere with venturi housing.
1. Push on arrow pointing downward on VTS
button
2. No interference
3. Nozzle down
If VTS needs to be readjusted, refer to
an authorized dealer.
Vacuum Bailer Pick-Ups
They are located each side of the drive
shaft tunnel.
Two pick-ups use a low pressure area
in the jet pump to syphon the water
out of the bilge.
Inspect each pick-up screen for ob-
structions, clean as necessary.
All Models Except HX/XP
1. Vacuum bailer pick-ups
HX/XP Models Only
NOTE: Remove the access cover
at rear of watercraft to access
bailer pick-ups.
START
STOP
F01J5CY
1
2
3
START
STOP
F01J5BY
3
2
1
-
CAUTION
Trim ring and/or nozzle must not
interfere at any position. Damage
will occur if adjustments are not
done adequately.
F01L7RY
1
'
smo9701a.bk : smo9701b.fm5 Page 74 Monday, November 3, 1997 9:54 AM
