Section 04 ENGINE (2-STROKE)
Subsection 05 (BOTTOM END)
F00D0TA
947 DI Engines

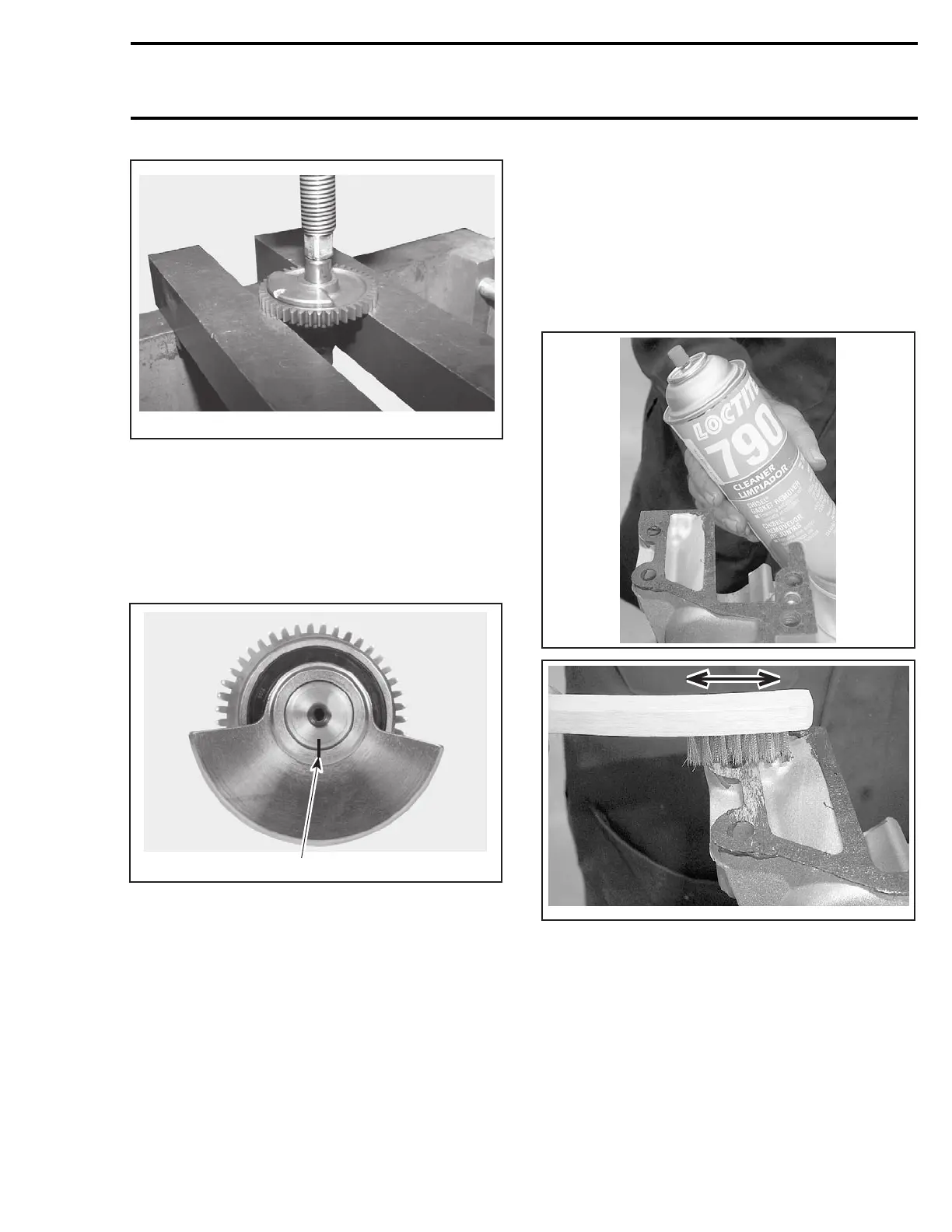

Use a press to remove counterweights no. 16 and
bearings no. 15.
CAUTION: There is no woodruff key to position
the counterweights. An index mark must be
traced to retain the proper position of the coun-
terweight.
F06D1HA
1
1. Trace an index mark
Remove seals no. 17.
Remove bearing no. 31 and washer no. 32.
Use a press to remove gear no. 14.
CLEANING
All Models
Discard all oil seals, gaskets, O-rings and sealing
rings.
Clean oil passages and make sure they are not
clogged.
Clean all metal components in a solvent.
Crankcase mating surfaces are best cleaned us-
ing a combination of the chisel gasket remover
(P/N 413 708 500) and a brass brush. Brush a first
pass in one direction then make the final brushing
perpendicularly (90°) to the first pass cross (hatch).
CAUTION: Do not wipe with rags. Use a new
clean hand towel only.
F00D2BA
F00D2CA
FIRST PASS
smr2004-Complete Line Up 139
