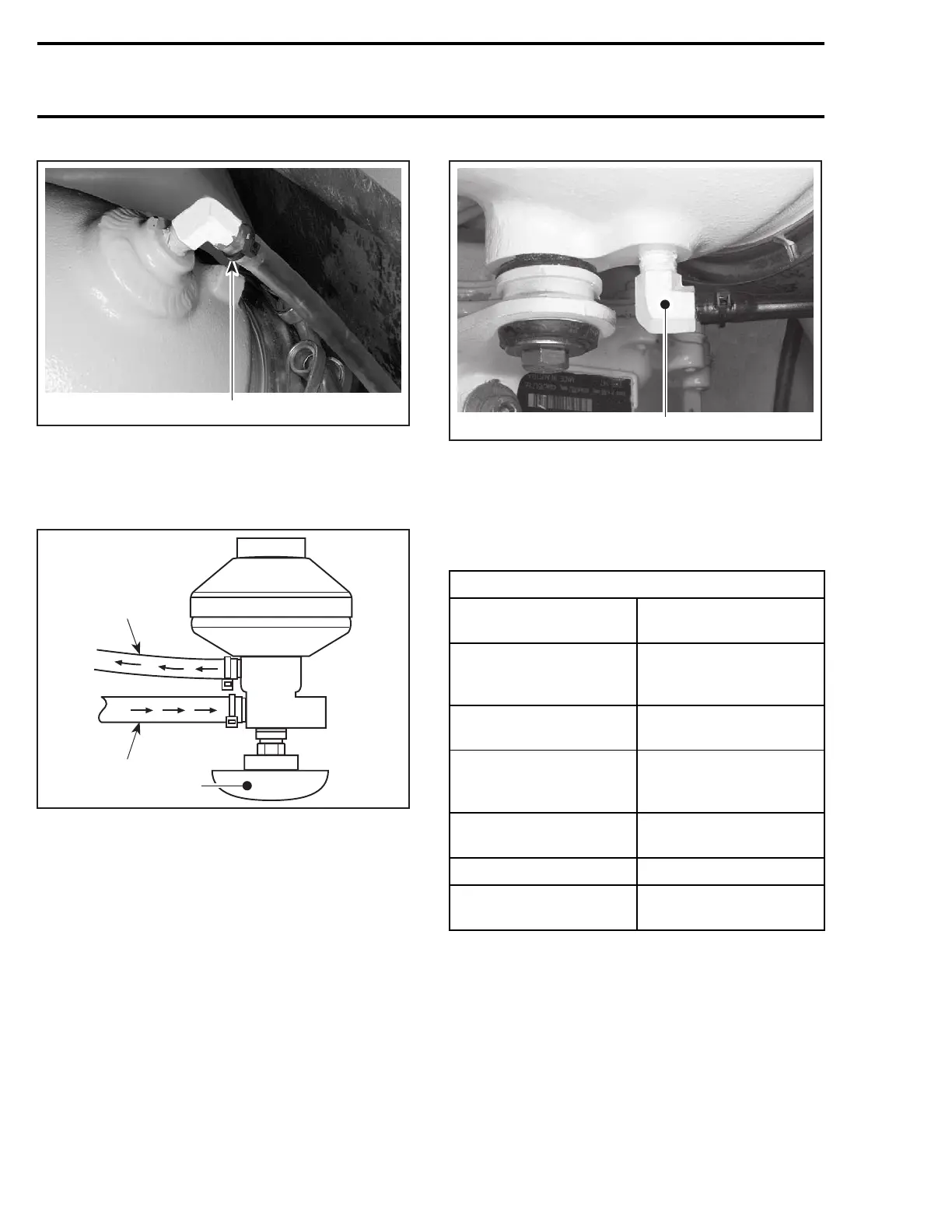

Section 09 COOLING SYSTEM
Subsection 01 (CIRCUIT, COMPONENTS AND CARE)
1
F06E09A
1. Water flow going to CSI
The lower hose of the valve is the water supply
and the upper hose is the regulated injection water
for the tuned pipe.
F06E0CA
2
1
3
1. Water from engine water supply hose
2. Regulated injection water to the tuned pipe
3. Muffler
Regulated water is injected in the tuned pipe by a
calibrated fitting.
1
F06E0AA
1. Injection fitting
All 2-Stroke Engines
CAUTION: Never modify cooling system ar-
rangement, otherwise serious engine damage
could occur.
TECHNICAL DATA
TYPE
TLCS (Total Loss Cooling
System).
COOLANT FLOW Flow from impeller
housing (no water
pump).
TEMPERATURE
CONTROL
Calibrated outlet fittings
(no thermostat).
SYSTEM BLEEDING
Self-bleed type (hose
at uppermost point of
circuit).
SYSTEM DRAINING
Self-drain type (hose at
lowest point of circuit).
SYSTEM FLUSHING
Fitting hose adapter.
MONITORING BEEPER
Turnsonat86-94°C
(187 - 201°F).
COMPONENTS
Clamp
To cut or secure non-reusable Oetiker clamps of
cooling system hoses, use pliers (P/N 295 000
070).
476 smr2004-Complete Line Up
