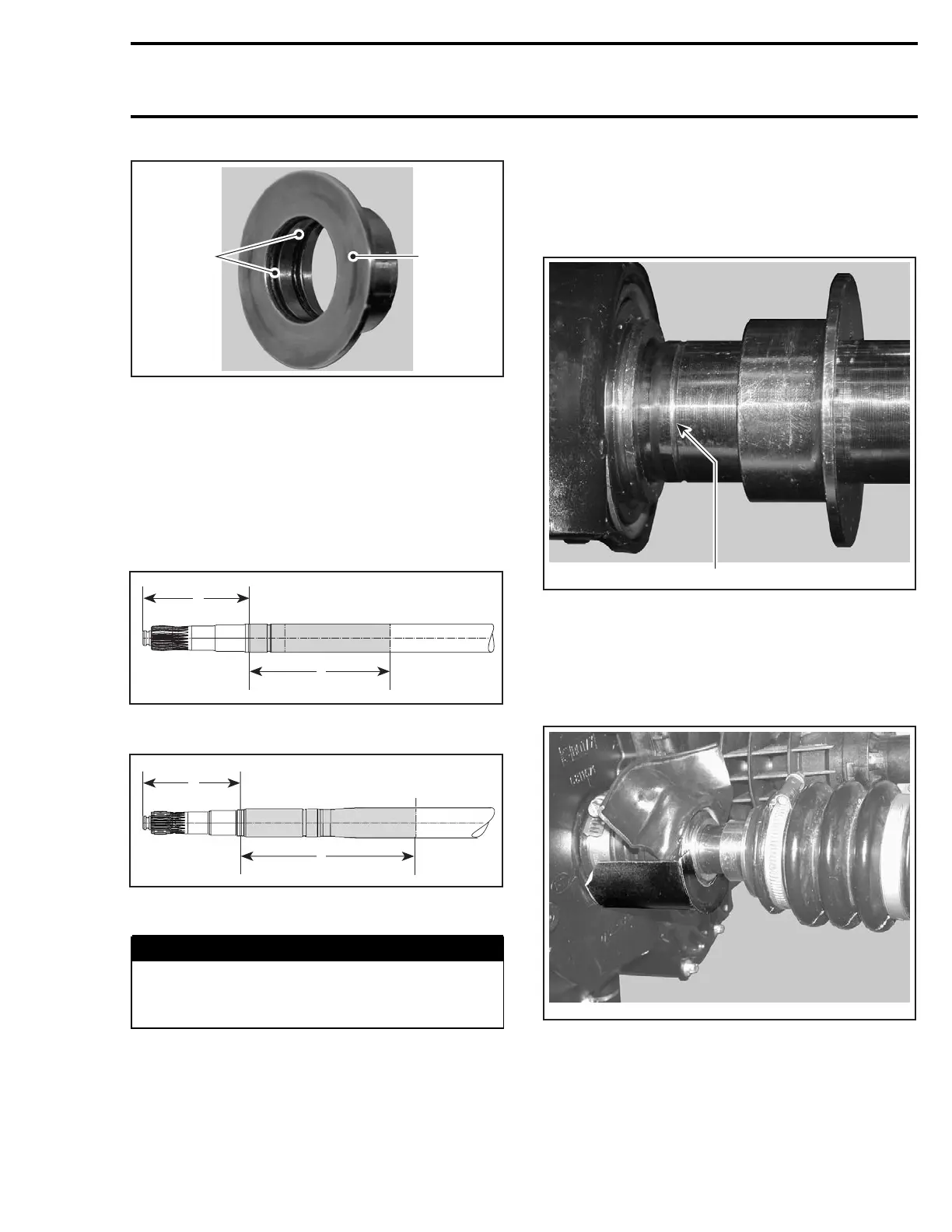

Section13PROPULSION
Subsection 02 (DRIVE SYSTEM)
1
F18I0KA
2
1. Synthetic grease
2. No lubrication
To prevent possible drive shaft corrosion, apply
anti-corrosion spray (P/N 219 700 304) drive shaft
where shown.
NOTE: Drive shaft should be dry and clean prior
to applying the corrosion protectant. If the drive
shaft is corroded, a rotating wire brush may be
used.
A
F18J25A
B
A. 89 mm (3.3 in)
B. 131 mm (5.2 in) — zone to apply primer
F19J0BA
A
B
A. 101 mm (4 in)
B. 180 mm (7.1 in) — zone to apply primer
WARNING
Always work in a well ventilated area. Care-
fully read application instructions on product
can.
Wait 2 hours prior to using the watercraft to allow
protectant to dry.
CAUTION: Note that drive shaft features a tell
tale groove. If exposed after installation, the
installation is wrong and PTO seal assembly
will be pressed into crankshaft splines which
could rub a hole in seal thus creating an oil leak.
F18I0QA
1
1. Tell tale groove
Install PTO seal assembly.
Install PTO seal support tool (P/N 529 035 842) on
PTO seal assembly.
Slide drive shaft far enough to install floating ring.
F18I02A
Continue pushing drive shaft towards engine care-
fully guiding it in the PTO seal then in crankshaft
splines.
Then, push drive shaft until it bottoms against the
engine.
smr2004-Complete Line Up 671
