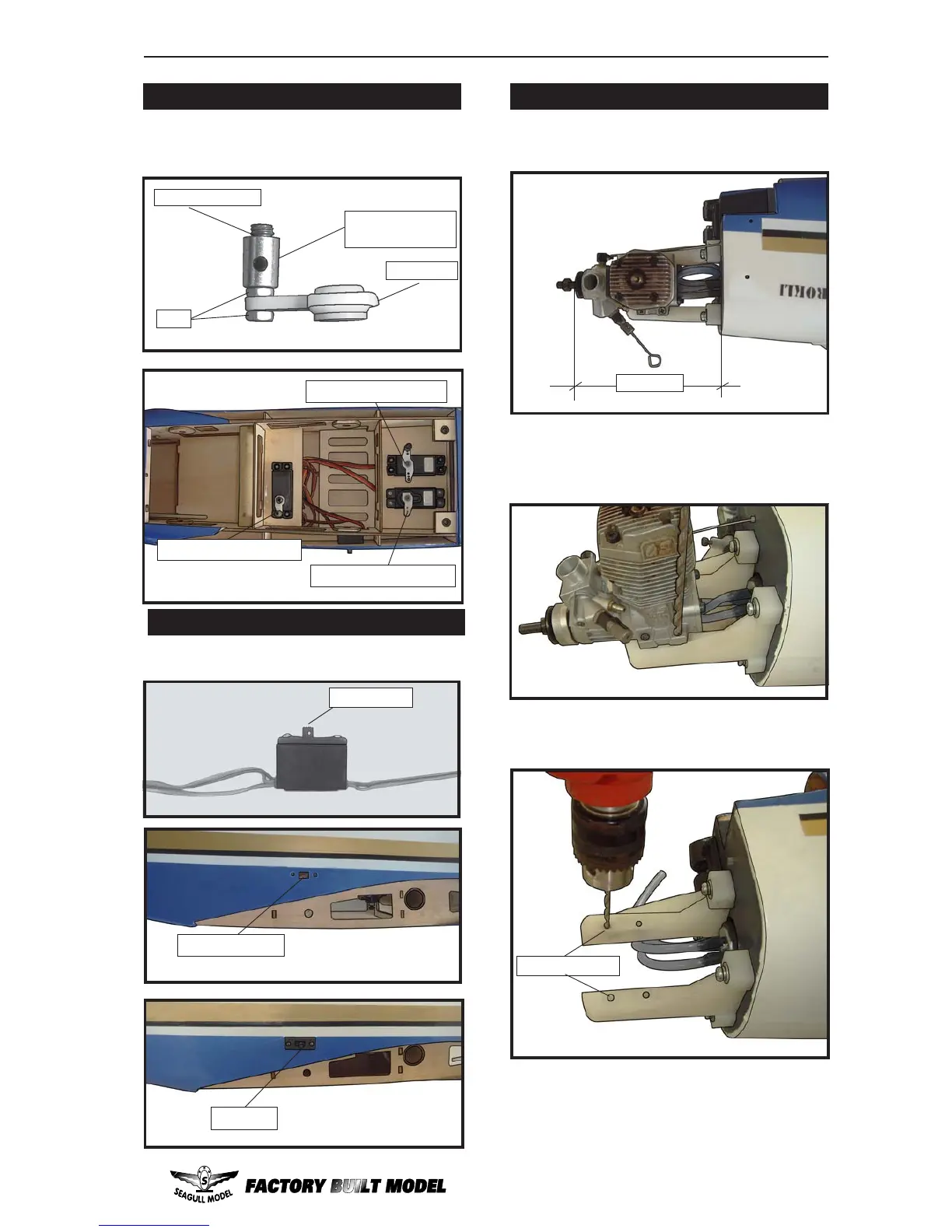

Seagull Models CHEROKEE - Mounting the Engine; Installing the Switch

11
www.seagullmodels.com
THROTTLE SERVO ARM INSTALLATION.
Install adjustable servo connector in the servo
arm as same as picture below:
Adjustable Servo
connector.
Servo arm.
Loctite secure.
Nut.
2) Use a pin drill and 2mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.
3) Use a drill to drill the four holes in the engine
mount rails.
4) On the fire wall has the location for the
throttle pusshrod tube (pre-drill).
2mm diameter.
110mm.
MOUNTING THE ENGINE.
 1) Position the engine with the drive washer
(110mm) forward of the firewall as shown.
INSTALLING THE SWITCH.
3/ 32” Hole.
Trim and cut.
Elevator servo arm.
Throttle servo arm.
Rudder servo arm.
Switch.
Install the switch into the precut hole in the
side, in the fuselage.
