CHEROKEE Instruction Manual.
20
2mm.
1
2
1
Pencil.
Cut.
MAIN LANDING GEAR
INSTALLATION.
INSTALLING THE MAIN GEAR WIRES.
4
7
1
2
6
3
5
M3x10mm.

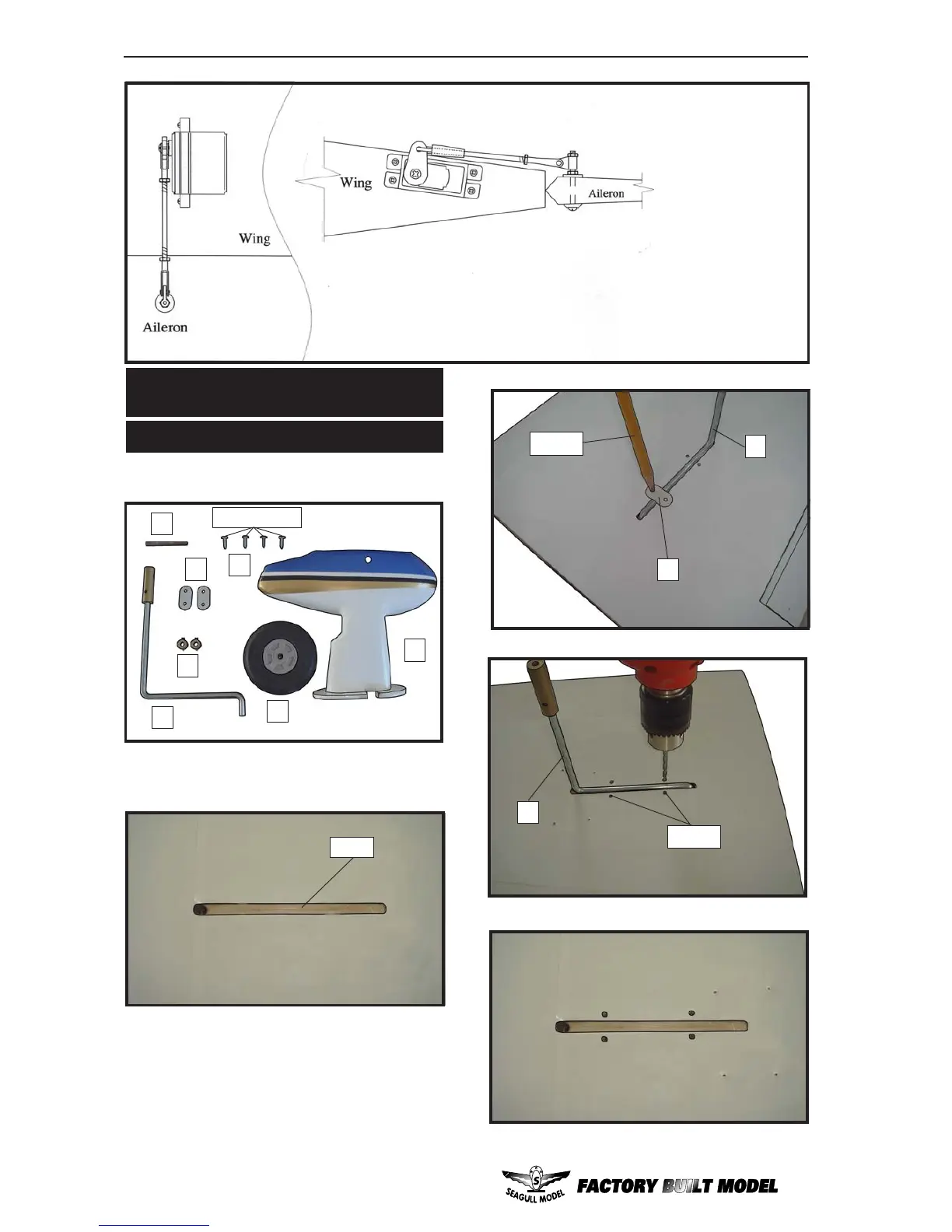

2) Remove the covering from over two main
landing gear mounting slots located in the
bottom of the wing.
3) Fit the main landing gear legs into the slots
in the underside of the wing panels. Position
two nylon landing gear straps over each landing
gear leg as shown. Mark the location of the screw
holes onto the wing and drill holes at your marks
using a drill bit. Secure the landing gear legs to
the wing panels using the nylon landing gear
straps and self-tapping screws as shown.
1) Locate the items necessary to attach the
main landing gear.
Repeat the procedure for the other aileron servo.
