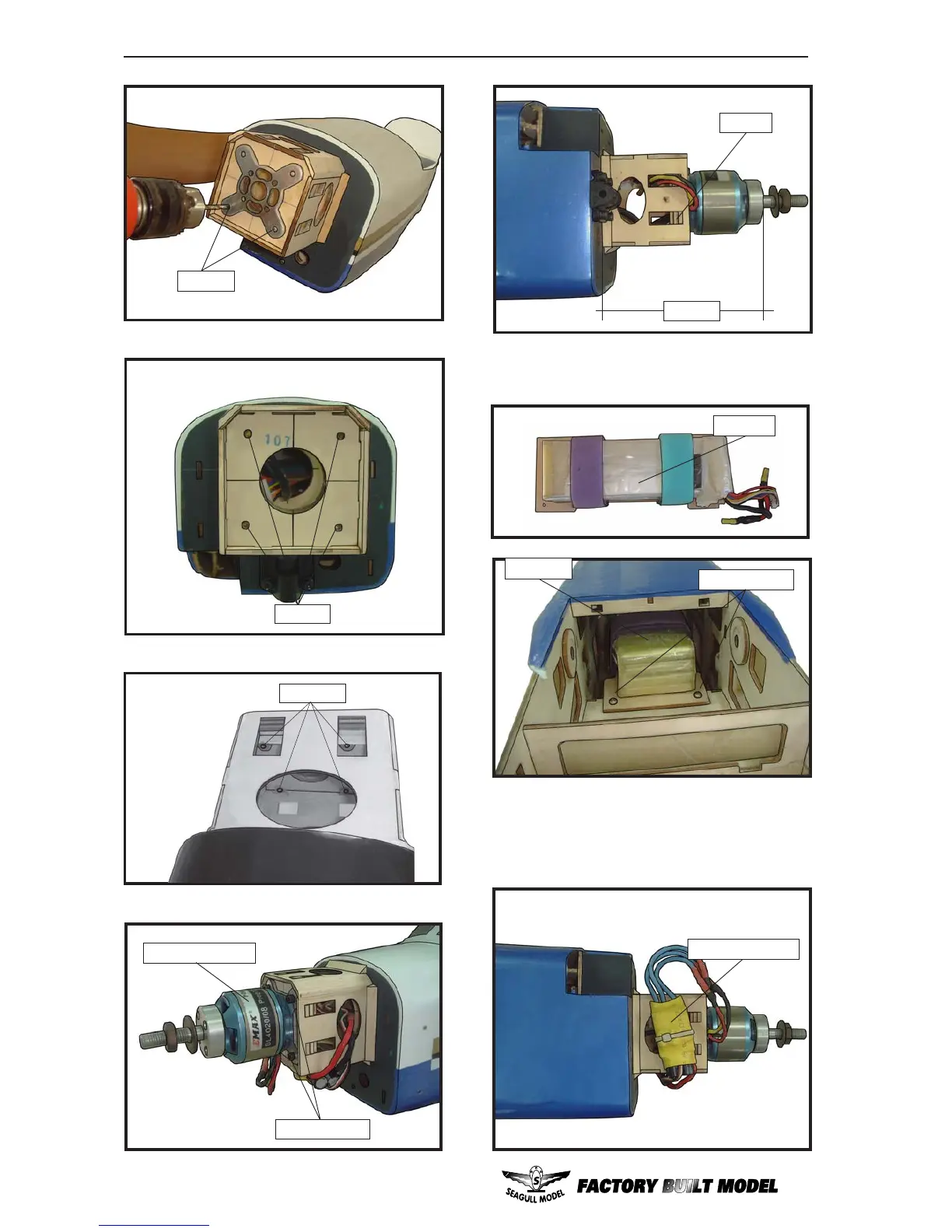

CHEROKEE Instruction Manual.
16
M3 x 15mm.
Battery.
Speed control.
Battery.
Blind nut.
M4 x 15mm.
Electric motor.
Epoxy.
110mm.
5.2mm.
5.2mm.
4) Locate the plywood battery tray to the
fuselage. Tighten the screws using machine
screws M3x15mm to secure the tray in position.
5) Attach the speed control to the side of the
motor box using two-sided tape and tie wraps.
Connect the appropriate leads from the speed
control to the motor. Make sure the leads will
not interfere with the operation of the motor.
