8mm.
M2 lock nut .
M2 clevis.

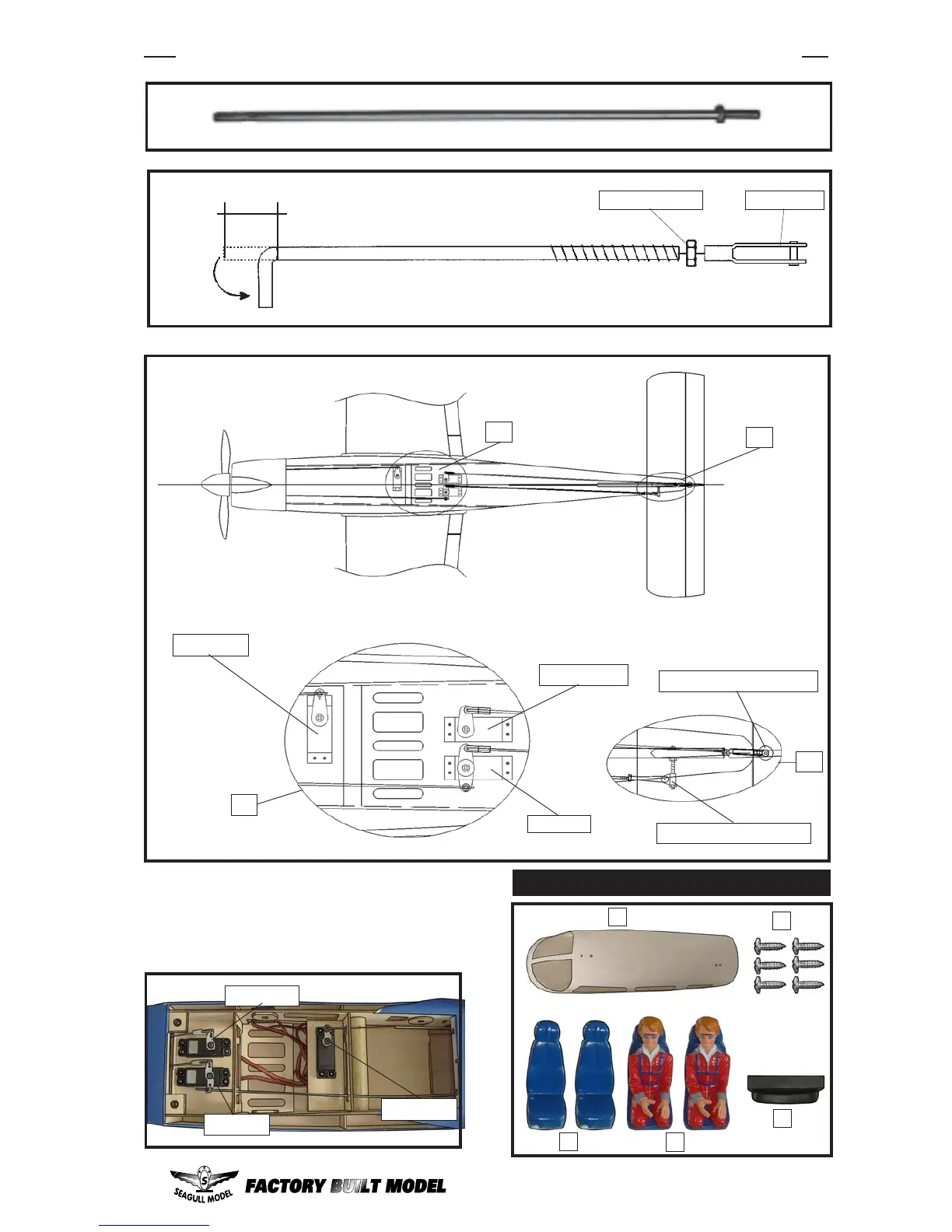

 7) Elevator and rudder pushrods assembly follow pictures below.
Elevator.
Rudder.
Throttle.
Rudder control horn.
Elevator control horn.
1
2
2
1
INSTALLATION PILOT.
1.
3.
2.
Rudder.
Elevator.
 8) Install servos arm to servos. Notice the
position of the servo arms on the servos. See
picture below.
4.
5.
Throttle.
