DUAL ACE. Instruction Manual.
9
2mmx20mm.
3mmx30mm.

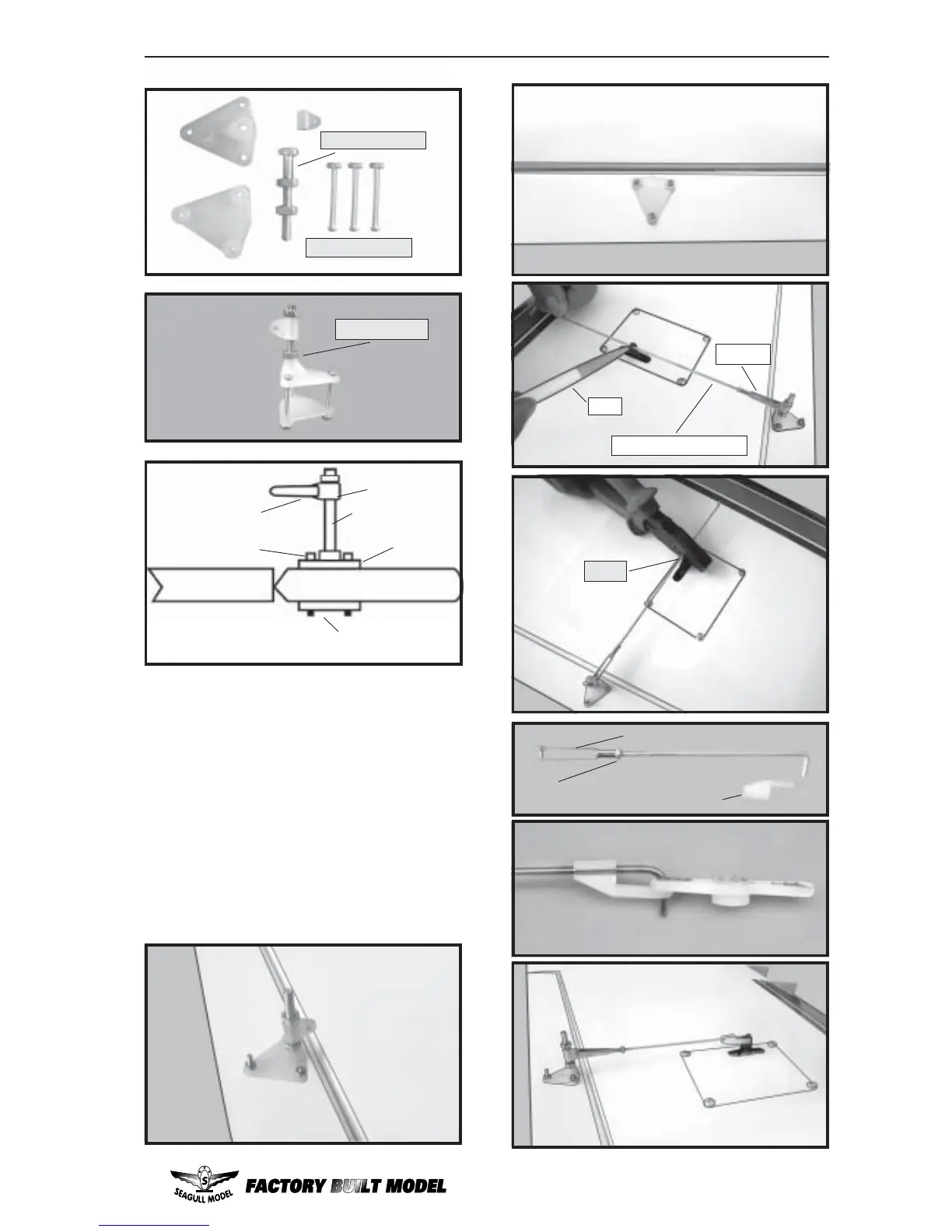

! 4) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the aileron halves.
!
5) Mount the control horns by inserting the
bolts through the control horn bases and
aileron halves, then into the mounting
backplates. Do not overtighten the nuts or the
backplates may crush the wood.
Control Horn.
Mounting Screws.
Mounting Plate.
3MM x 30mm.
2MM x 20mm.
C/A glue attach.
! 6)Thread one nylon adjustable control horn
on to each aileron control rod. Thread the
horns on until they are flush with the ends of
the control rods.
M2 lock nut.
Snap keeper.
M2 clevis.
Aileron torque rod.
Clevis.
Pen.
Cut.
M3 lock nut.
