Seagull Models DUAL ACE - Installing the Aileron Linkage

DUAL ACE. Instruction Manual.
8

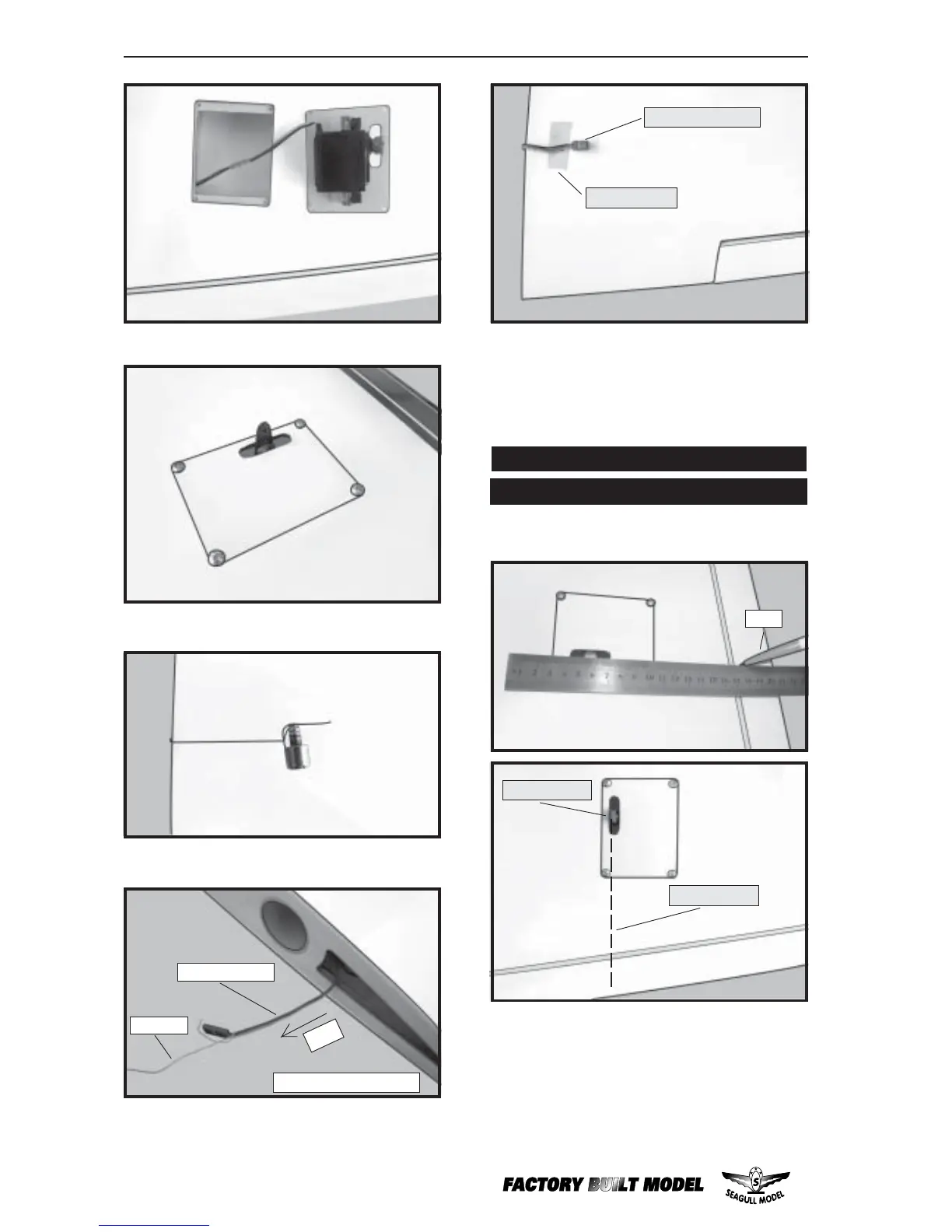

AILERON LINKAGE.
INSTALLING THE AILERON LINKAGE.
! 1) Using a ruler & pen to draw a straight
line as below picture.
Install the aileron servo tray into the servo
mount.
Repeat the procedure for orther wing
haft.
!
!!
!!
!2) Locate the nylon control horns,nylon
control horn backplates and three machine
screws.
!
!!
!!
!3) Position the aileron horn on the bottom
side of aileron. The clevis attachment holes
should be positioned over the hinge line.
Aileron electric.
Plastic tape.
Wing panel bottom.
Pull.
Electric wire.
Thread.
Pen.
Servo arm.
Straigh line.
