Seagull Models Extra 300S - Installing Receiver and Battery; Connect Receiver and Battery Leads; Secure Receiver and Battery Pack; Route Antenna and Secure

EXTRA 300S Instruction Manual
18
! !
! !
! 1) Plug the five servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
!!
!!
! 2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration

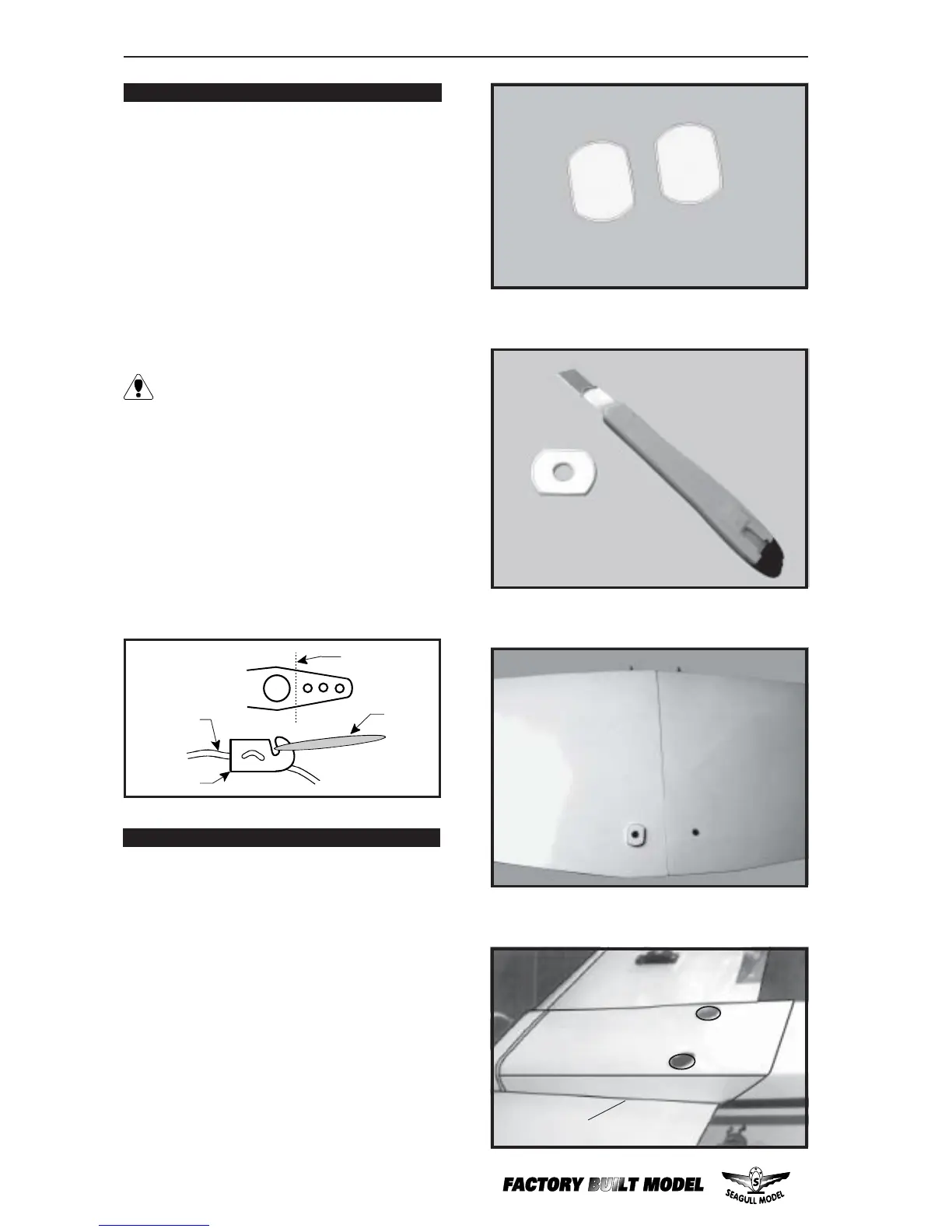

INSTALLING THE RECEIVER AND BATTERY
! !
! !
! 3)Position the battery pack in the fuel
tank compartment and the receiver just be-
hind the fuel tank . Use extra foam pieces to
hold them in position.
When balancing the airplane you may
need to move the battery or receiver for-
ward or after to achieve proper balance.
! !
! !
! 4) Using a 1/16” drill bit, drill a hole through
the side of the fuselage, near the receiver, for
the antenna to exit. Route the antenna out of
the fuselage and secure it to the vertical stabi-
lizer using a rubber band and a modified servo
arm. See picture as below.
Antenna
Rubber
Band
Modified
Servo Arm
Cut
BELLY PAN INSTALLATION
!!
!!
! 1) Bolt the wing to fuselage.
!!
!!
! 2) Place the belly pan into its positon un-
der the wing centre section, Trim where nec-
essary, marking sure it aligns with the wing
and fuselage.
!!
!!
! 3) Remove the covering where the belly
pan contacts the wing. Do not cut into the wing
when removing the covering. Glue into posi-
tion onto the wing with C/A glue.
C/A glue
