EXTRA 300S Instruction Manual
6

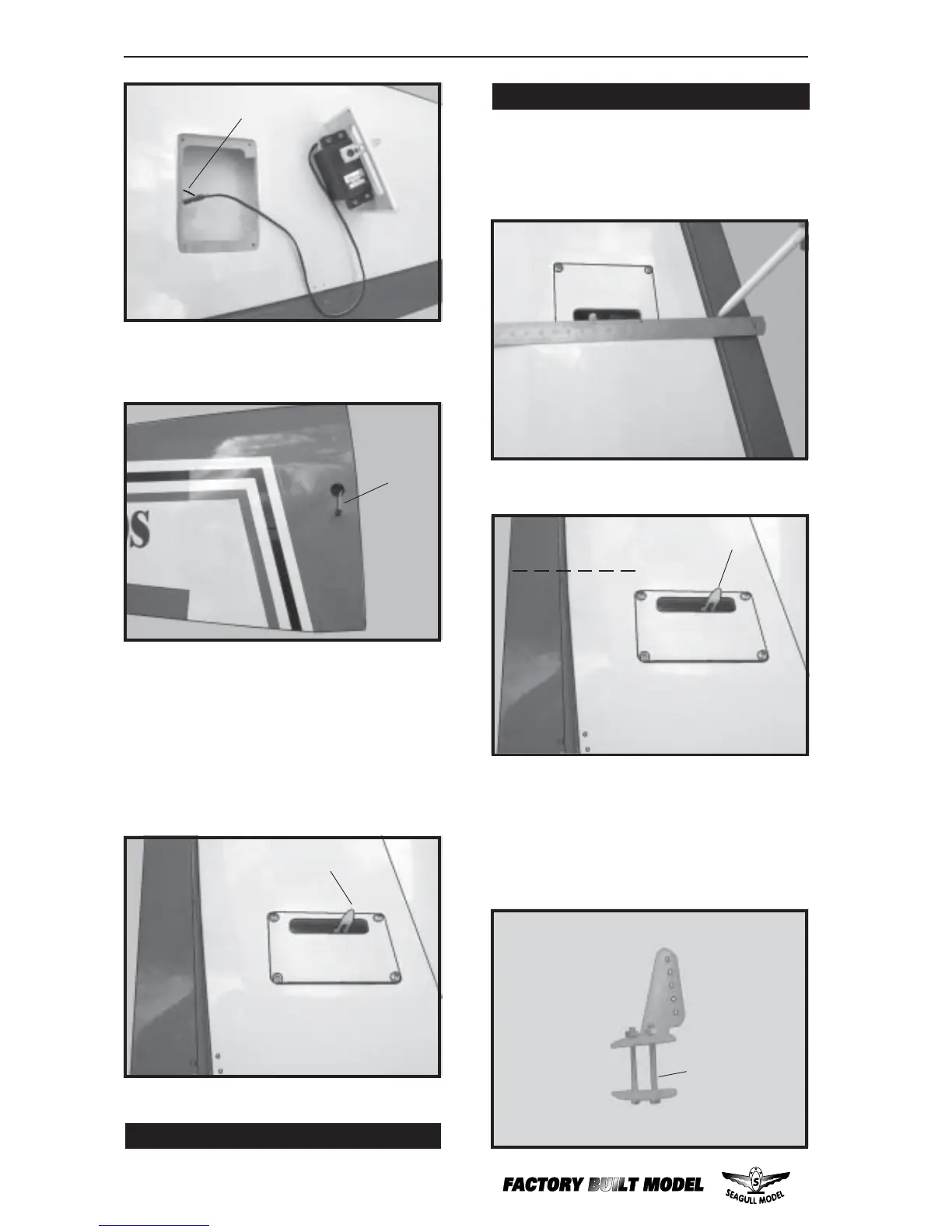

! 3) Install the aileron servo tray into the
servo mount.
Repeat the procedure for the other wing
half.
AILERON LINKAGE
INSTALLING THE AILERON LINKAGE
! 1) Using a ruler & pen to draw a straight
line as below picture.
! 2) Locate nylon control horns, nylon con-
trol horn backplates and 2 machine screws.
Servo arm
Servo
electric
wire
Thread
Servo arm
2MM x 20MM
