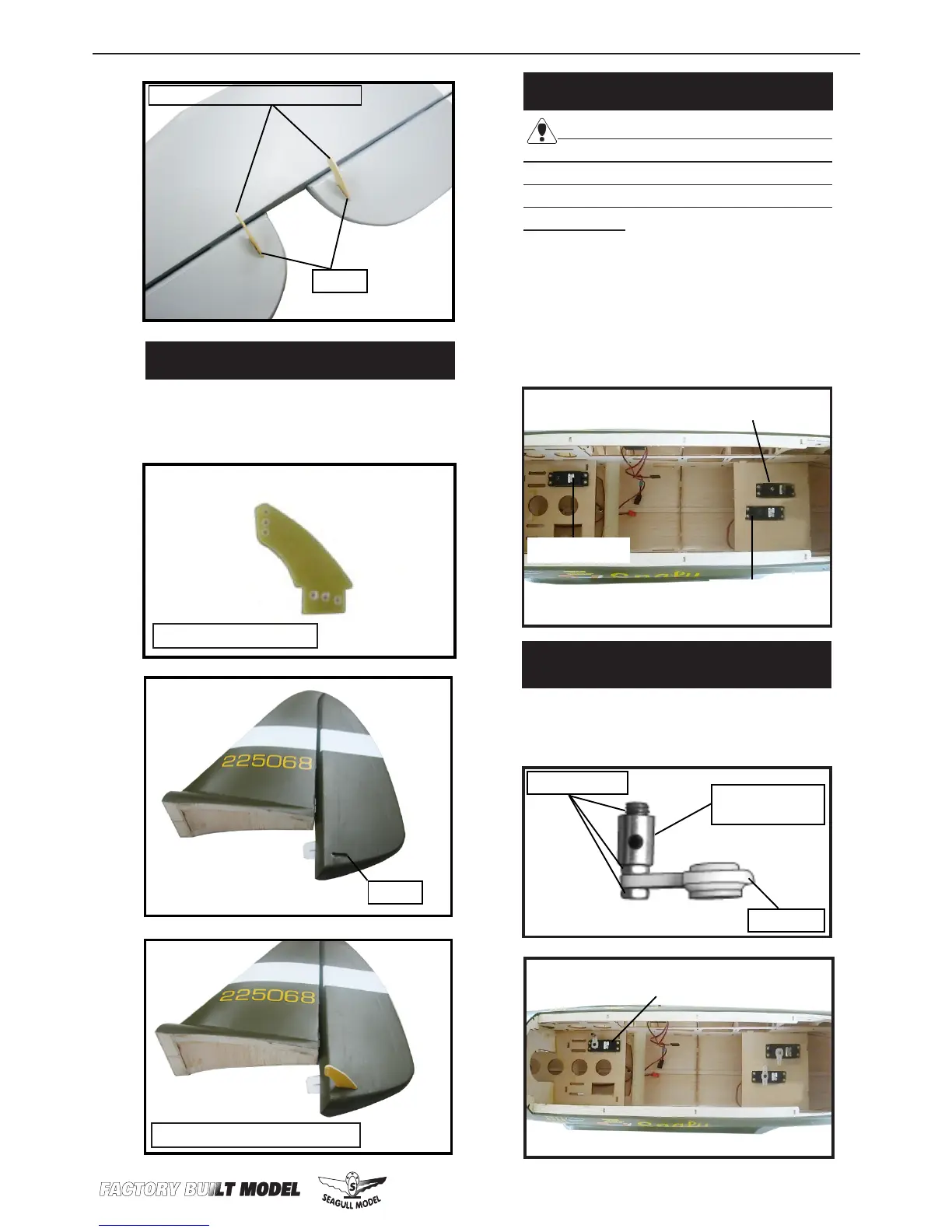

7
Elevator berglass control horn.
Epoxy.
INSTALL RUDDER CONTROL HORN.
Repeat steps to install the rudder control
horn as same as steps done for ailerons.
Fiberglass control horn
Epoxy.
Rudder berglass control horn.
INSTALLING THE FUSELAGE SERVOS.
.
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test t the
servo into the aileron servo mount.
2) Secure the servos with the screws pro-
vided with your radio system.
Rudder servo.
Elevator servo.
rottle servo.
THROTTLE SERVO ARM
INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
Servo arm.
Adjustable servo
connector.
Loctite secure.
rottle servo arm.
