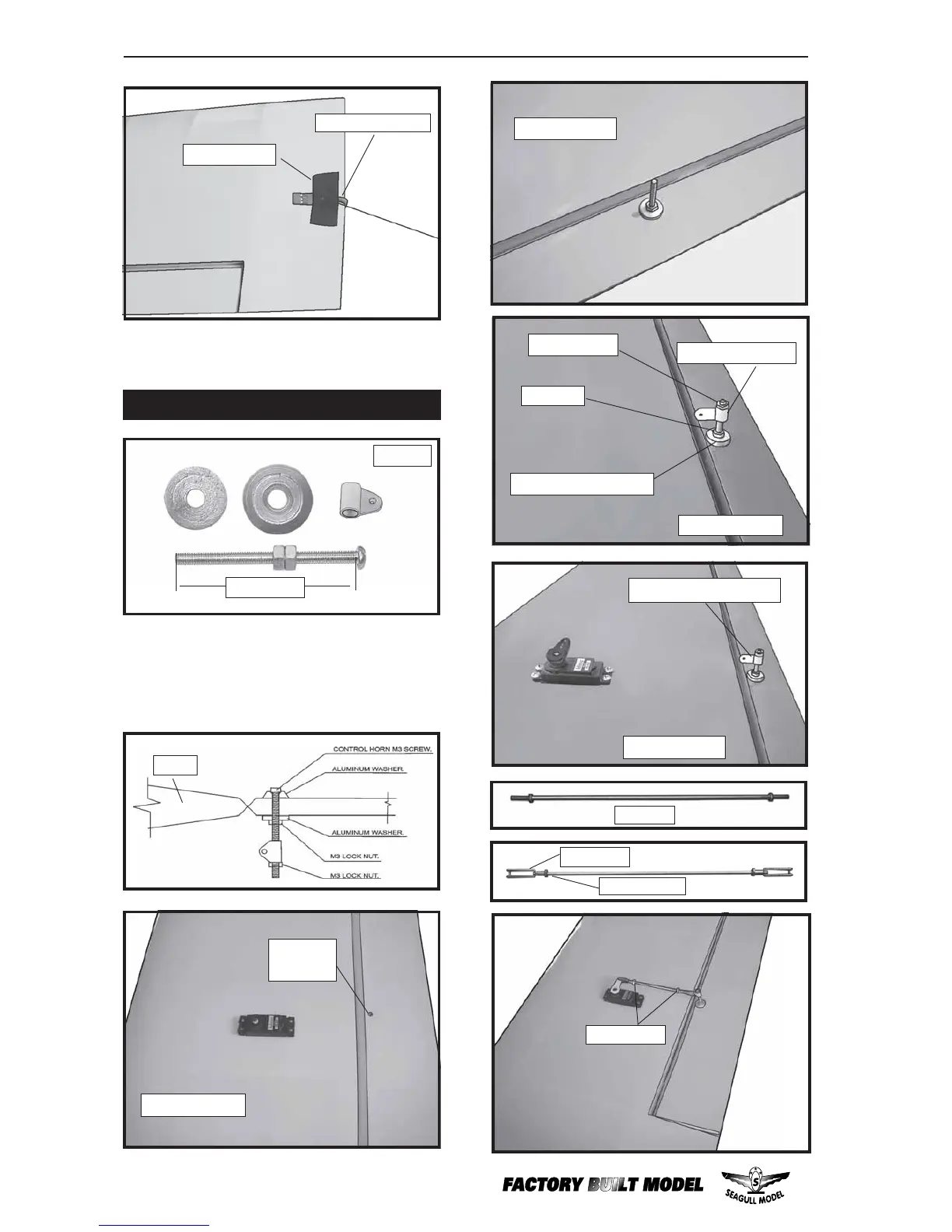

Seagull Models SPACE WALKER II - Aileron Control Horn Installation

SPACE WALKER II Instruction Manual
14
M2 lock nut.
M3 lock nut.
M3 nut.
Aluminium washer.
M3 control horn.
Wing bottom.
Wing bottom.
Aileron control horn.
M2 lock nut.
M2 clevis.
75mm.
Wing bottom.

1) Aileron control horn:
Mix a small amount of 30 minute epoxy and
lightly coat the inside of the hole in the aileron
and the control horn screw.
AILERON CONTROL HORN INSTALLATION
Wing.
Aileron.
2 sets.
3x40mm.
Wing bottom.
drill hole
3.2mm.
Repeat the procedure for orther wing
haft.
Plastic tape.
Aileron electric.
