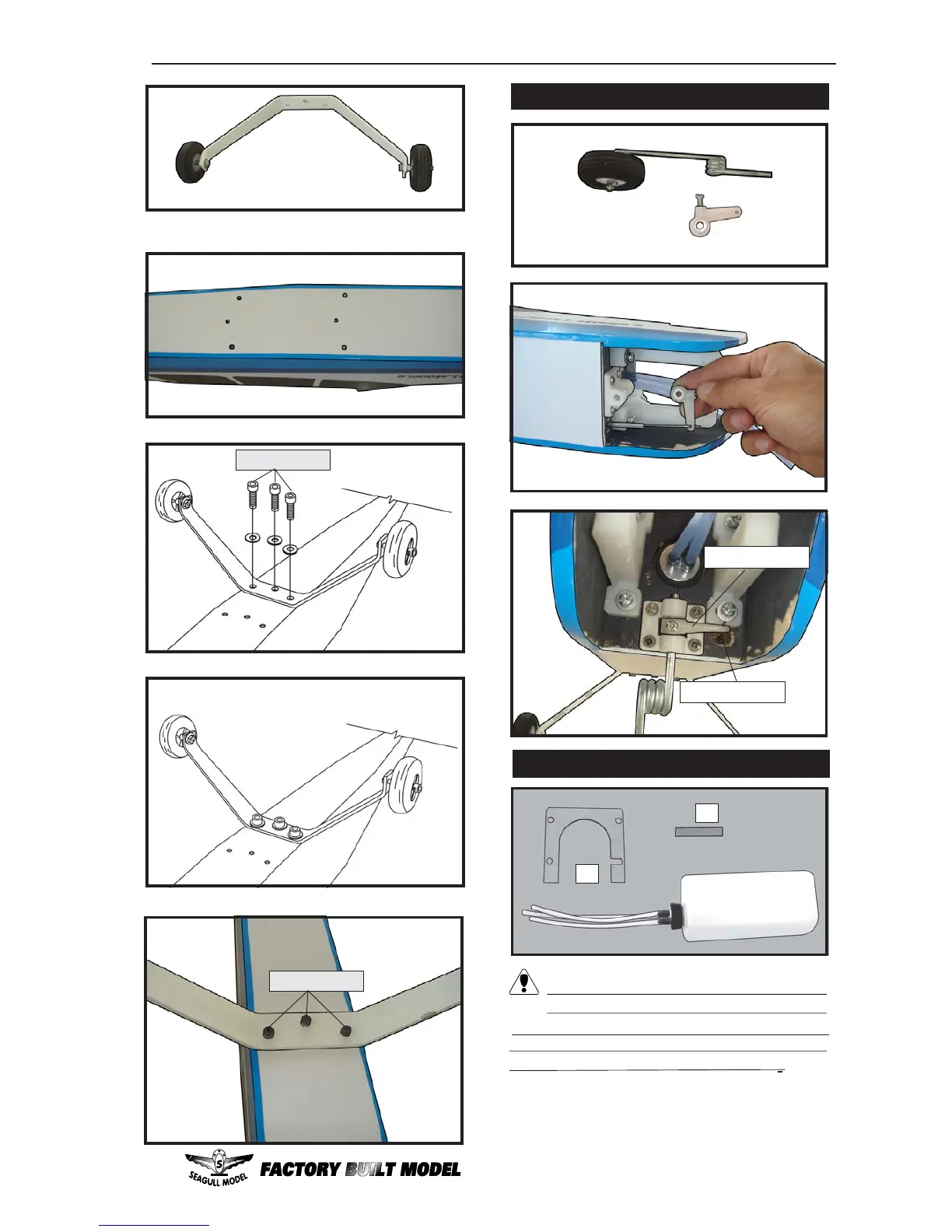

NOSE GEAR INSTALLATION.
1) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in the
firewall.
Steering arm.
Pushrod wire.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be difficult to determine which is which.
