INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 26 GYRO
90265
2
3 of 12
Section 2: ELECTRICAL INSTALLATION
2.2 Electrical Equipment Power Connections
1. 230 VAC POWER SOURCE REQUIREMENTS
a. 230 VAC (nominal), 1 Phase, 50/60 Hz, 20 Amps.
b. A separate circuit breaker should be used for each Drive Box.
2. DRIVE BOX AC POWER INPUT CONNECTION INSTRUCTIONS
a. Cable: 3 x 10AWG (3 x 6mm
2
CSA), 10’ (3m) length, Seakeeper supplied pre-installed.
i. Locate CABLE 2 for AC power input to the Drive Box at the outward of three cable
glands.

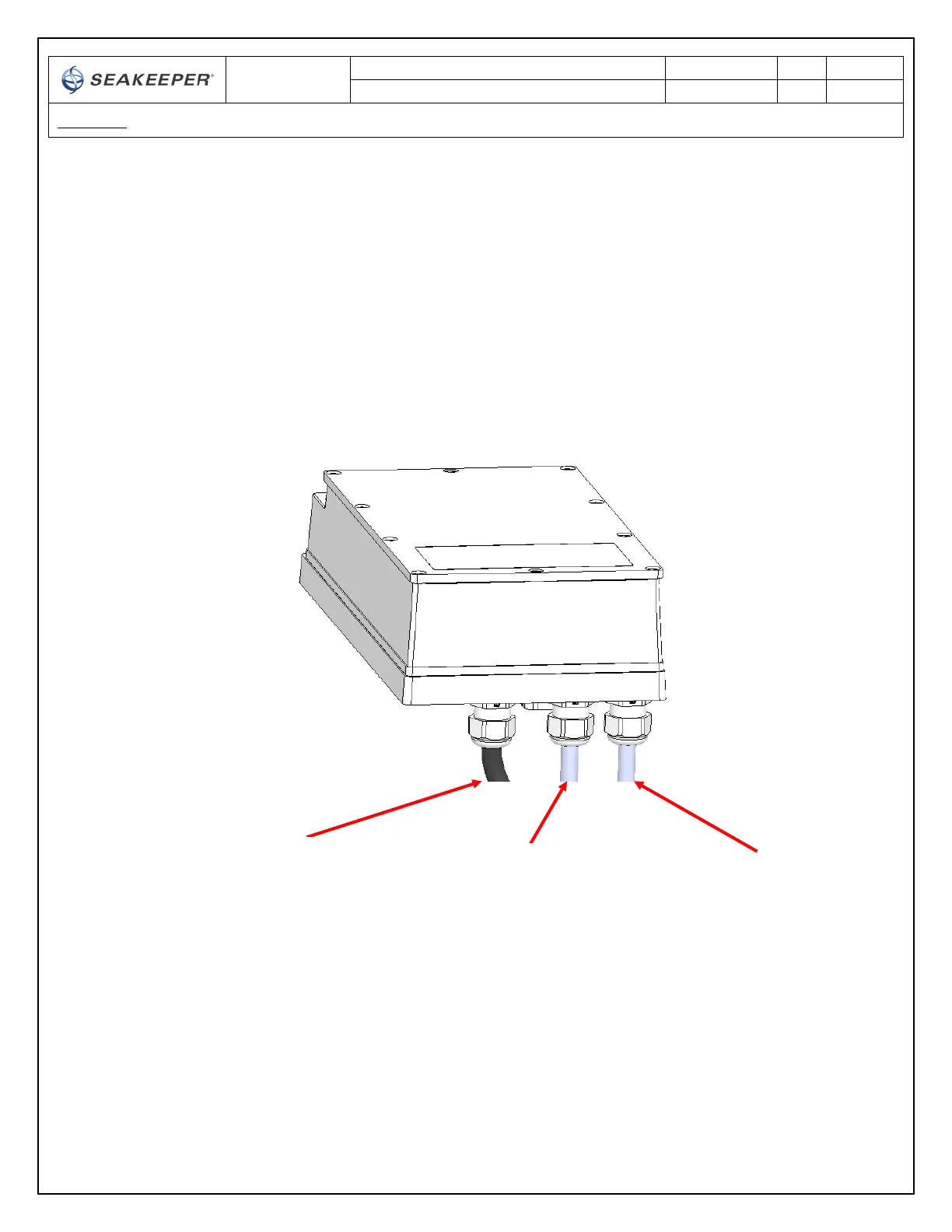

FIGURE 2 – DRIVE BOX AC POWER INPUT & OUTPUT CABLE GLANDS
OUTWARD CABLE GLAND
FOR AC POWER INPUT
(CABLE 2)
MIDDLE CABLE GLAND
FOR AC POWER OUTPUT
TO SEAWATER PUMP
(CABLE 5)
INWARD CABLE GLAND
FOR DRIVE POWER
OUTPUT TO GYRO
MOTOR
