Seakeeper 26 GYRO - Page 35

INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 26 GYRO
90265
2
5 of 12
Section 2: ELECTRICAL INSTALLATION

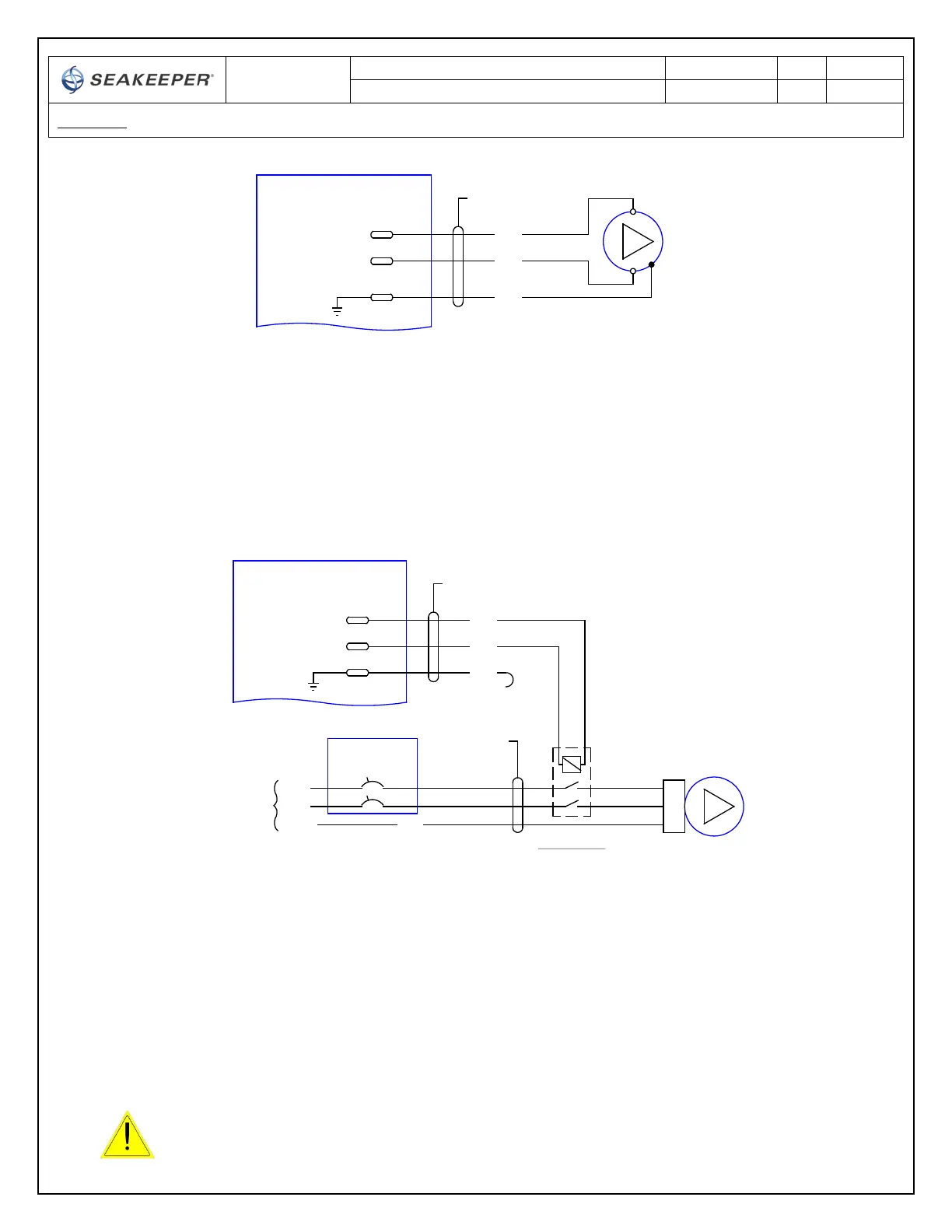

FIGURE 5 – CABLE 5, WIRE CONNECTIONS TO SEAWATER PUMP
c. If the customer-supplied Seawater Pump is not rated for 230 VAC, the CABLE 5 output may
be used to switch a customer-supplied relay.
i. Locate CABLE 5 for AC power output to the Seawater Pump from the Drive Box at the
middle of three cable glands as shown in Figure 2.
ii. The recommended wiring is shown in Figure 6. Refer to Figure 4 for Cable 5 wire
connections.
FIGURE 6 – RECOMMENDED WIRING FOR SEAWATER PUMPS NOT 230 VAC
d. If CABLE 5 is not used, bundle cable and secure to rear of gyro or other area nearby which
will not come in contact with moving parts during gyro operation. Do NOT cut CABLE 5 as
it contains live voltage when gyro is in operation. Gyro ships with CABLE 5 permanently
sealed at end of cable with protective cap in the event it is not used. Do NOT remove
CABLE 5 from Drive Box as moisture will be free to enter box through open cable gland and
corrode internal electronic components.
DRIVE BOX
BK
WH
GN
BLACK
WHITE
GREEN
SEA WATER
PUMP,
CUSTOMER
SUPPLIED
SEAWATER PUMP
POWER OUTPUT,
208-230 VAC,
5A, 1Ø, 50/60 Hz
CABLE 5
3x14AWG or 3x2.0mm
2
,
SEAKEEPER SUPPLIED,
3m LENGTH
RELAY,
CUSTOMER
SUPPLIED
PE
+V
-V
SEAWATER
PUMP
POWER
SEAWATER PUMP
AC DISCONNECT
SWITCH
+V
-V
EARTH
GRN
CUSTOMER
SUPPLIED
CIRCUIT BREAKER
SEAWATER PUMP
POWER CABLE,
CUSTOMER
SUPPLIED
DRIVE BOX
BK
WH
GN
BLACK
WHITE
GREEN
SEA WATER
PUMP,
CUSTOMER
SUPPLIED
SEAWATER PUMP
POWER OUTPUT,
208-230 VAC,
5A, 1Ø, 50/60 Hz
CABLE 5
3x14AWG or 3x2.0mm
2
,
SEAKEEPER SUPPLIED,
3m LENGTH
RELAY SELECTION
COIL: 230 VAC
CONTACTS: FOR SEAWATER
PUMP CURRENT
Cable 5 contains live voltage when gyro is in operation. Do NOT cut
Cable 5. Do not remove Cable 5 from Drive Box.
