Seakeeper 26 GYRO - Page 37

INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 26 GYRO
90265
2
7 of 12
Section 2: ELECTRICAL INSTALLATION
2.3 Electrical Equipment Ground Connections
1. GYRO TO VESSEL GROUND CONNECTION INSTRUCTIONS
a. Connect the Gyro foundation to vessel ground.
i. Install CABLE 6 (4AWG or 22.0mm
2
, Customer supplied) from the M6 brass
ground stud on the Gyro rear brace to a suitable vessel ground.

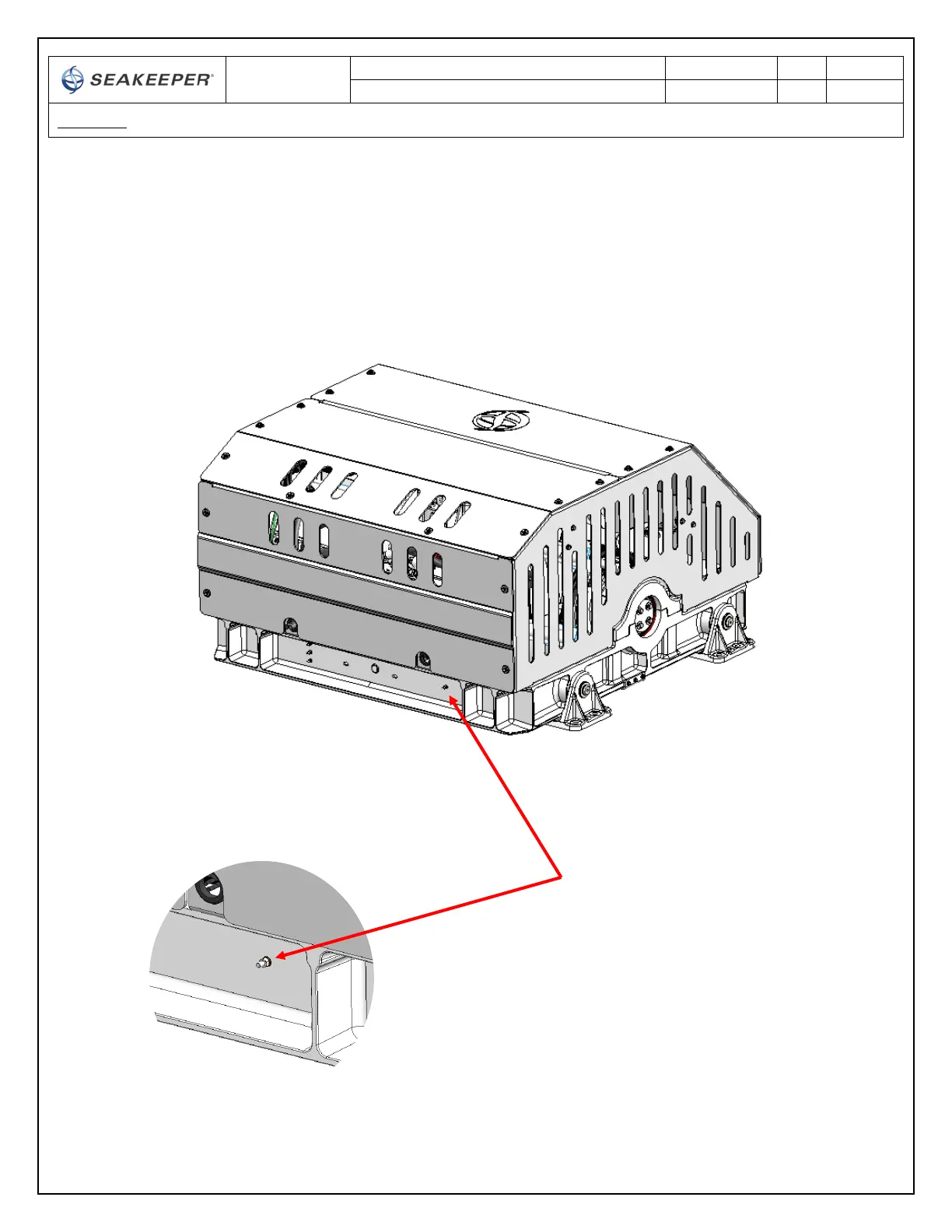

FIGURE 9 – GYRO GROUND STUD ON REAR BRACE
GROUND
STUD
