OPERATION
MANUAL
Product: Document #: Rev: Page:
SEAKEEPER 6 90403 1 6 of 6
Section 1: SYSTEM OVERVIEW
1.3 Drive Box
The Drive Box contains the electronic components that take 110-230 VAC at 50/60 Hz from the
boat’s generator or shore power and supply current to the flywheel motor according to
commands from the Electronic Control Module (ECM). The glycol/water mix that cools the
Seakeeper is also circulated through a cold plate inside the Drive Box to remove heat from high-
power electronic components.
The Drive Box contains high voltage electronics and the
cover should not be removed while the flywheel is spinning
except by an authorized technician. This high voltage exists
even if the flywheel is coasting down and the supply voltage
has been shut off.

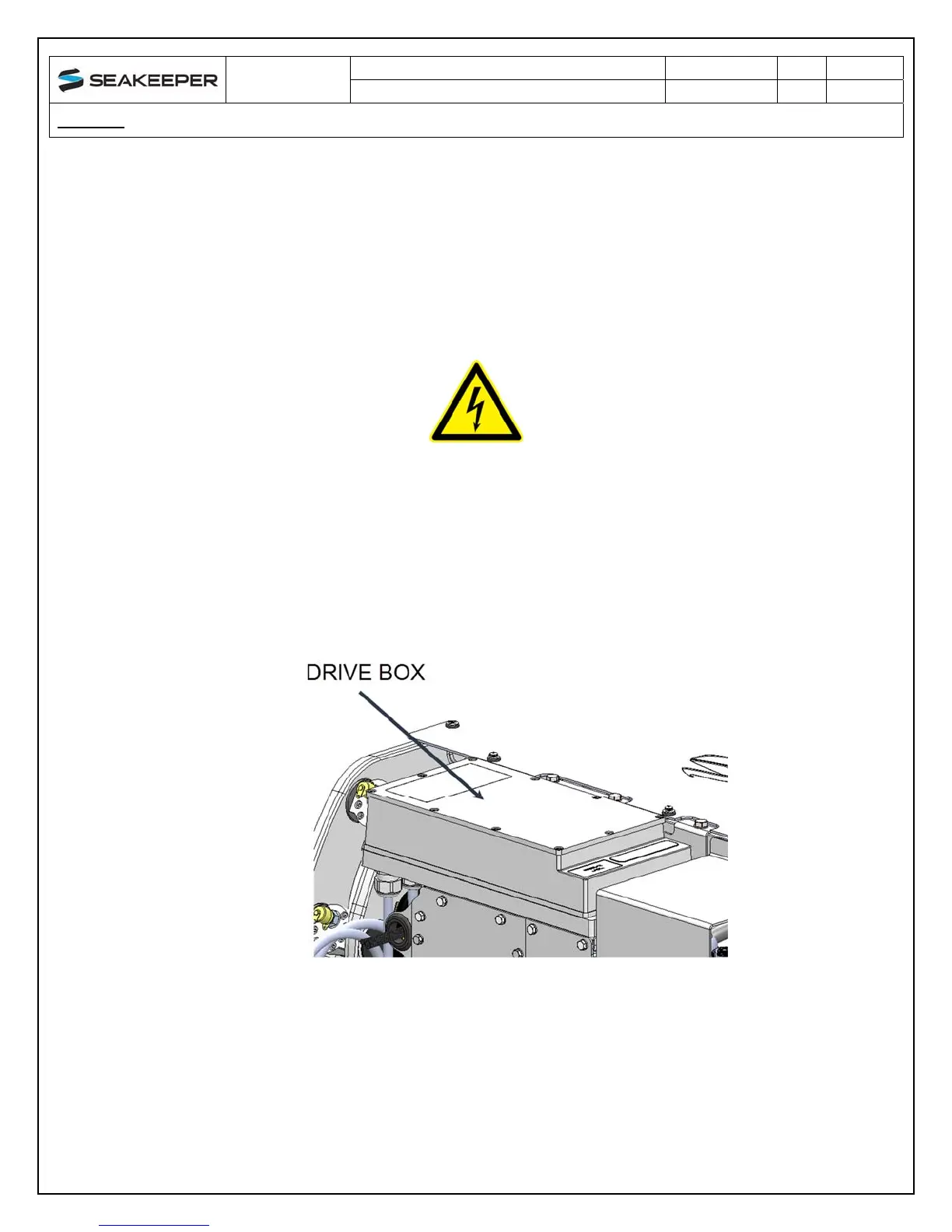

FIGURE 5 – DRIVE BOX
