36

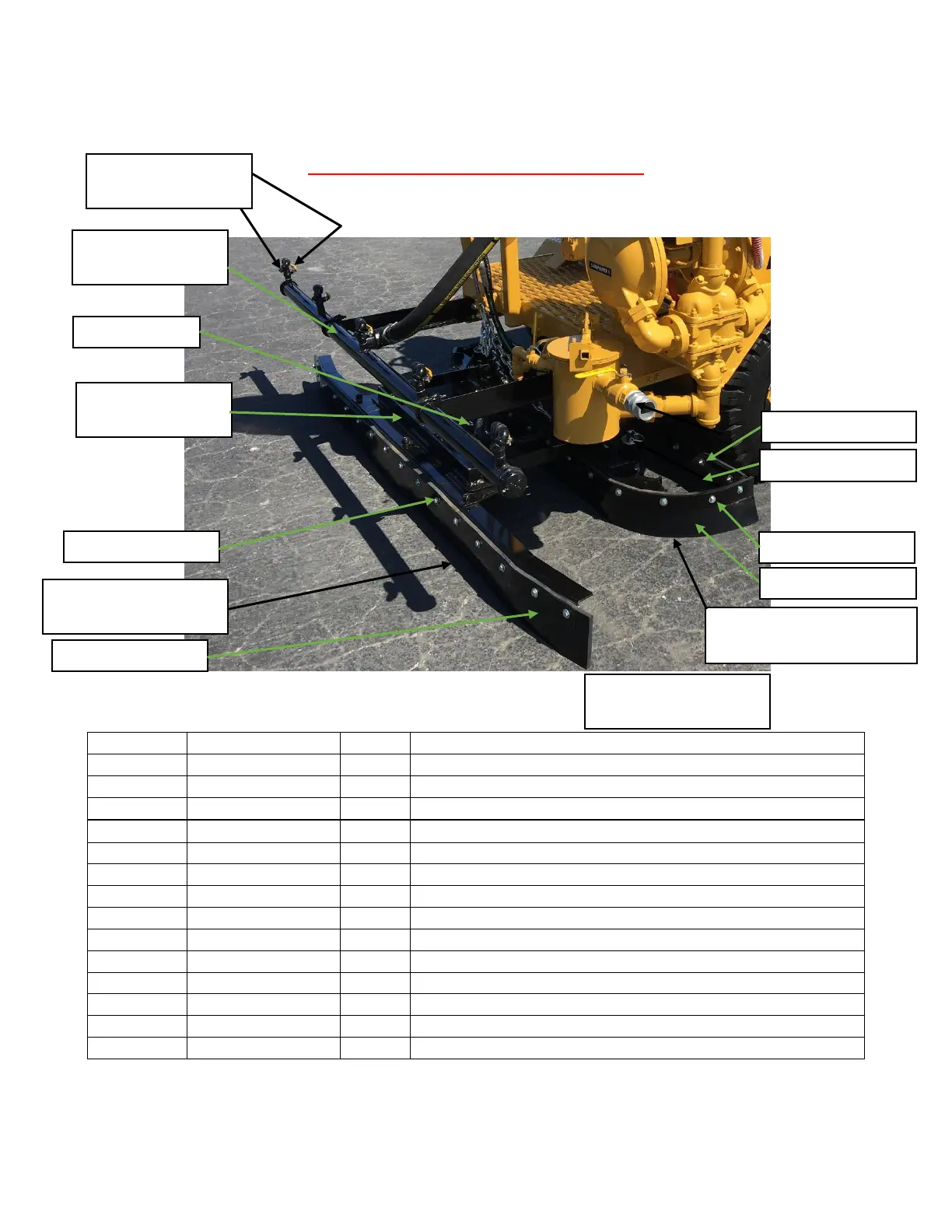

SQUEEGEE SP300 DUAL/SPRAY
APPLIES TO: SP 300 DUAL/SPRAY
PARTS LIST
ITEM #
PART#
QTY.
DESCRIPTION
19
P70023E
1
REAR END COMPLETE ASSEMBLY
P459A024
2
NEOPRENE 1/2” X 6” X 94”
P459A023
1
NEOPRENE 1/2” X 6” X 74”
20
P600A005
1
CYLINDER – HYD. 1-3/4” X 6” STROKE
41
P50246AW
1
SPRAY BAR ASSEMBLY
42
P397A009
5
1/2” BALL VALVE – SPRAY BAR
43
P449A004
5
SPRAY TIP 80/70 – 3/8 NPT STEEL
91
P70001G
1
BOX FRAME ASSEMBLY
92
P70001F
1
DRAG BOX ASSEMBLY
93
P109D
1
BACKING STRIP 91-3/4”
94
P109B
1
BACKING STRIP 70”
95
P70021C
1
SWIVEL FRAME ASSEMBLY
96
P70003
1
BOTTOM FRAME ASSEMBLY
97
109C
1
BACKING STRIP 90-5/8”
19 REAR END
COMPLETE ASSEMBLY
20 CYLINDER
96 BOTTOM FRAME
ASSEMBLY
95 SWIVEL FRAME
ASSEMBLY
91 BOX FRAME ASSEMBLY
92 DRAG BOX ASSEMBLY
93 BACKING STRIP
19 NEOPRENE 94”
19 NEOPRENE 74”
94 BACKING STRIP
19 NEOPRENE 94”
97 BACKING STRIP
41 SPRAY-BAR
ASSEMBLY
43 SPRAY TIP 80/70
42 1/2" BALL VALVE
