king/cal king installation
STEP 1 STEP 3
STEP 2

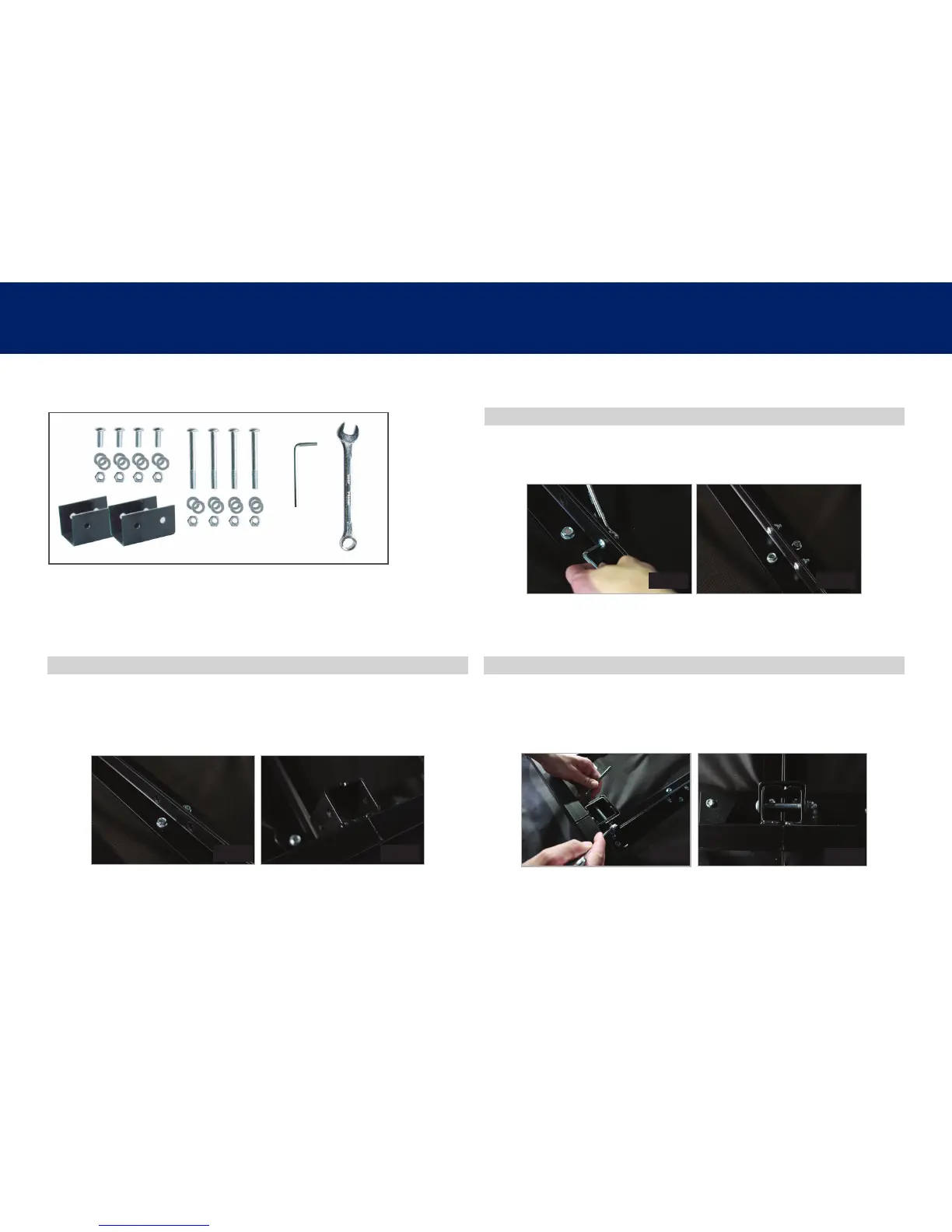

Always use two people when setting up the base.
Push and align the head and foot sections together. Make sure to align
the bolt holes as seen in Fig. A. The frames also need to be aligned as
seen in Fig. B.
Once aligned, locate 4 bolts in the middle frame. Secure bolts with
nuts and washers as seen in Fig. C and D.
Slide C-Clamp over frame connections from Fig. B. Use 2 long
bolts, washers and nuts to secure frames together using provided
wrenches. Repeat this step for the other side of the base.
For customer support, call Customer Service: U.S. 1-800-499-1965 | Canada 1-800-268-4414
Fig. A Fig. B
Fig. C Fig. D
Fig. E
Fig. F
C-Clamps (2)
Long and Short Bolts (4 of each)
Nuts (8) and Washers (16)
5mm Hex Wrench (1)
13mm Wrench (1)
