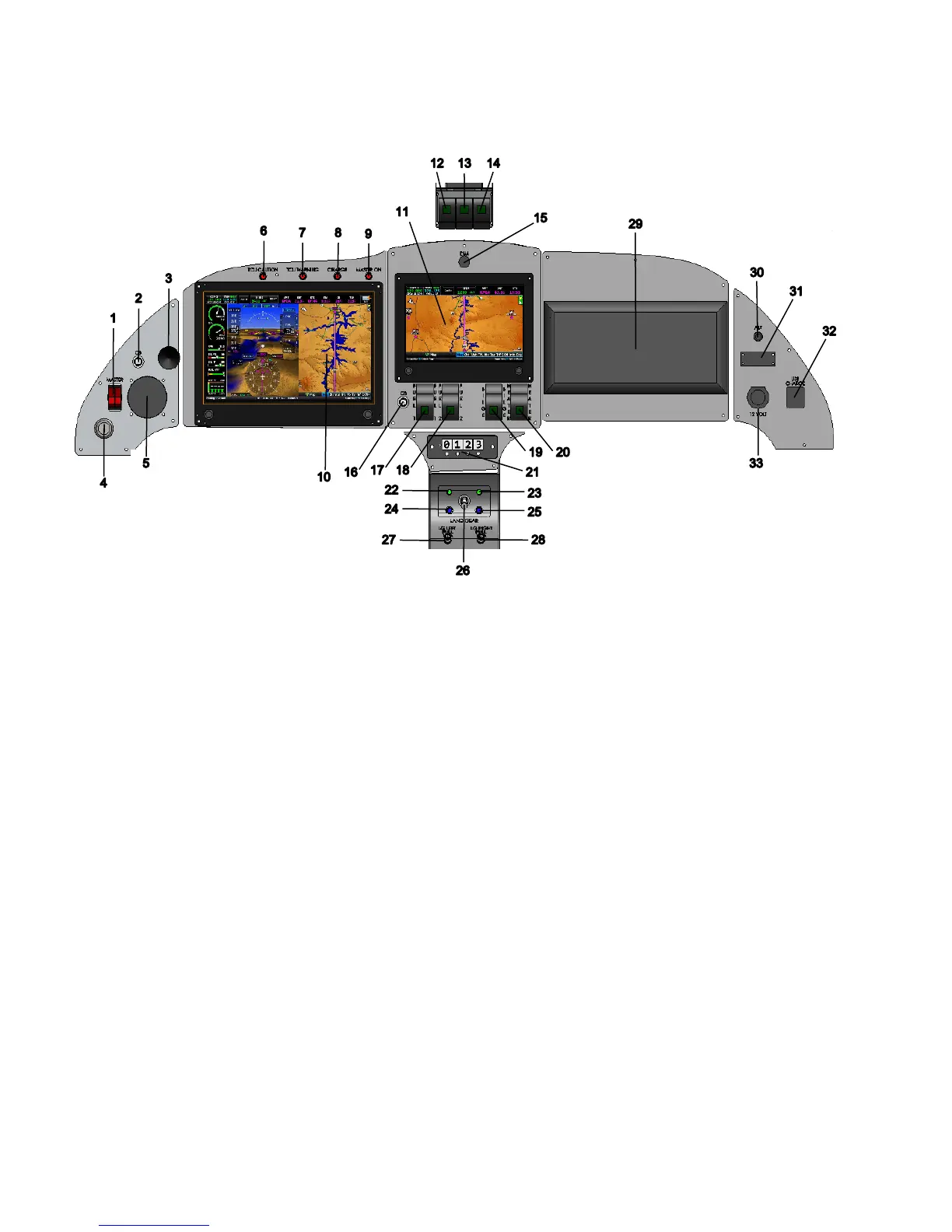

7.4 INSTRUMENT PANEL
914 Elite Searey
1. Split Master Switch
2. Master Solenoid Breaker
3. Parking Brake
4. Ignition & Start Switch
5. Air Speed Indicator
6. Turbo Control Unit Caution Indicator
7. Turbo Control Unit Warning Indicator
8. Battery Charge Indicator
9. Master Switch Indicator
10. EFIS & EMS Screen
11. GPS Screen
12. Navigation Lights Switch
13. Strobe Light Switch
14. Landing Light Switch
15. Dimmer Switch
16. Fuel Pump 1 breaker
17. Fuel Pump 1 Switch
18. Fuel Pump 2 Switch
19. Bilge Pump Switch
20. Heater Switch
21. Flap Control Unit
22. Left Landing Gear Up Indicator
23. Right Landing Gear Up Indicator
24. Left Landing Gear Down Indicator
25. Right Landing Gear Down Indicator
