COMPONENT ACCESS
Kenmore Elite 2013 Stainless Steel Tall Tub Dishwasher
n
3-17
Figure 8
Figure 9

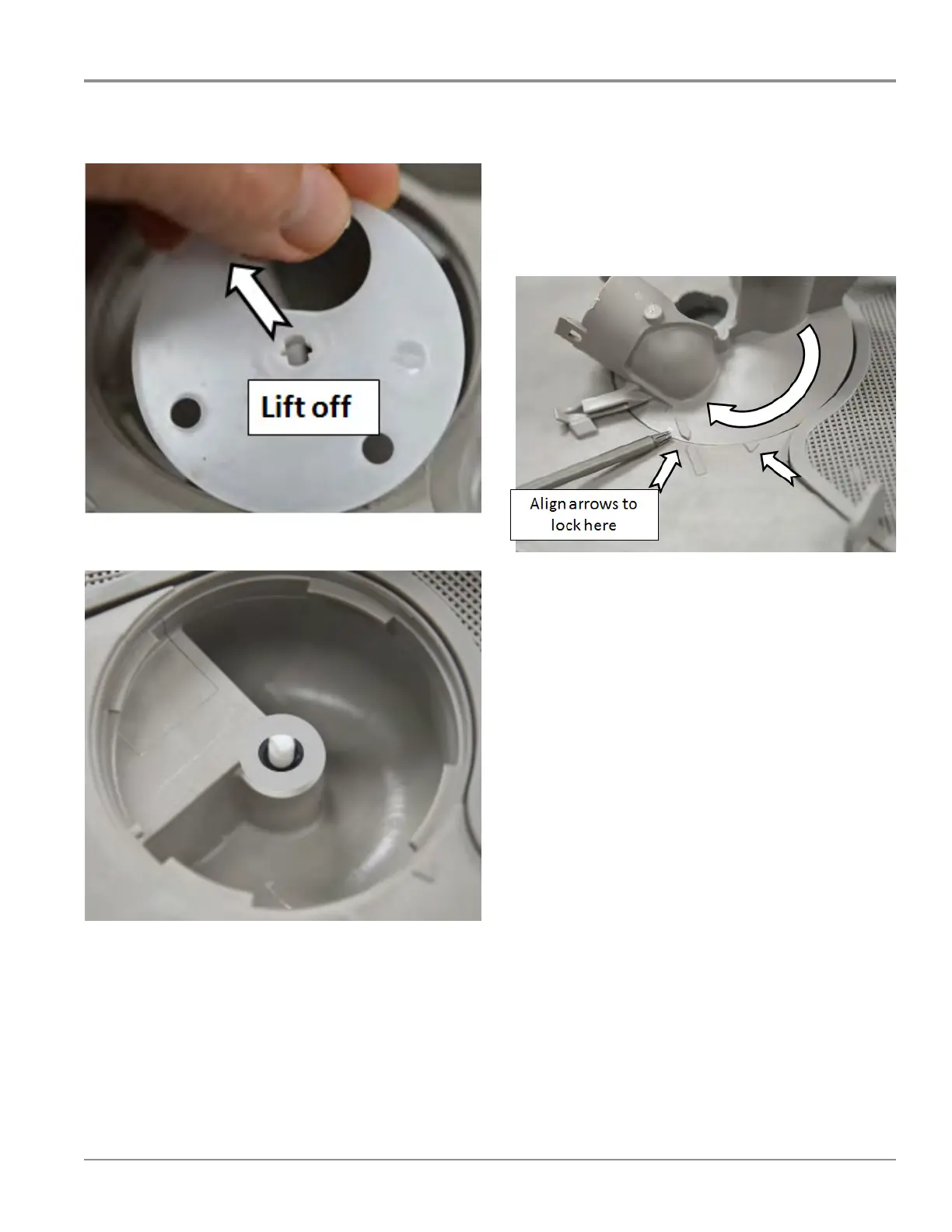

Installing Diverter Housing
1. Align the arrow on the diverter housing to the lower
arrow on the sump.
2. Rotate the housing clock wise unl the diverter housing
locks in place, see gure 1.
Figure 1
Removing Diverter Disk (continued)
7. Lift off the disc, see figures 8 and 9.
