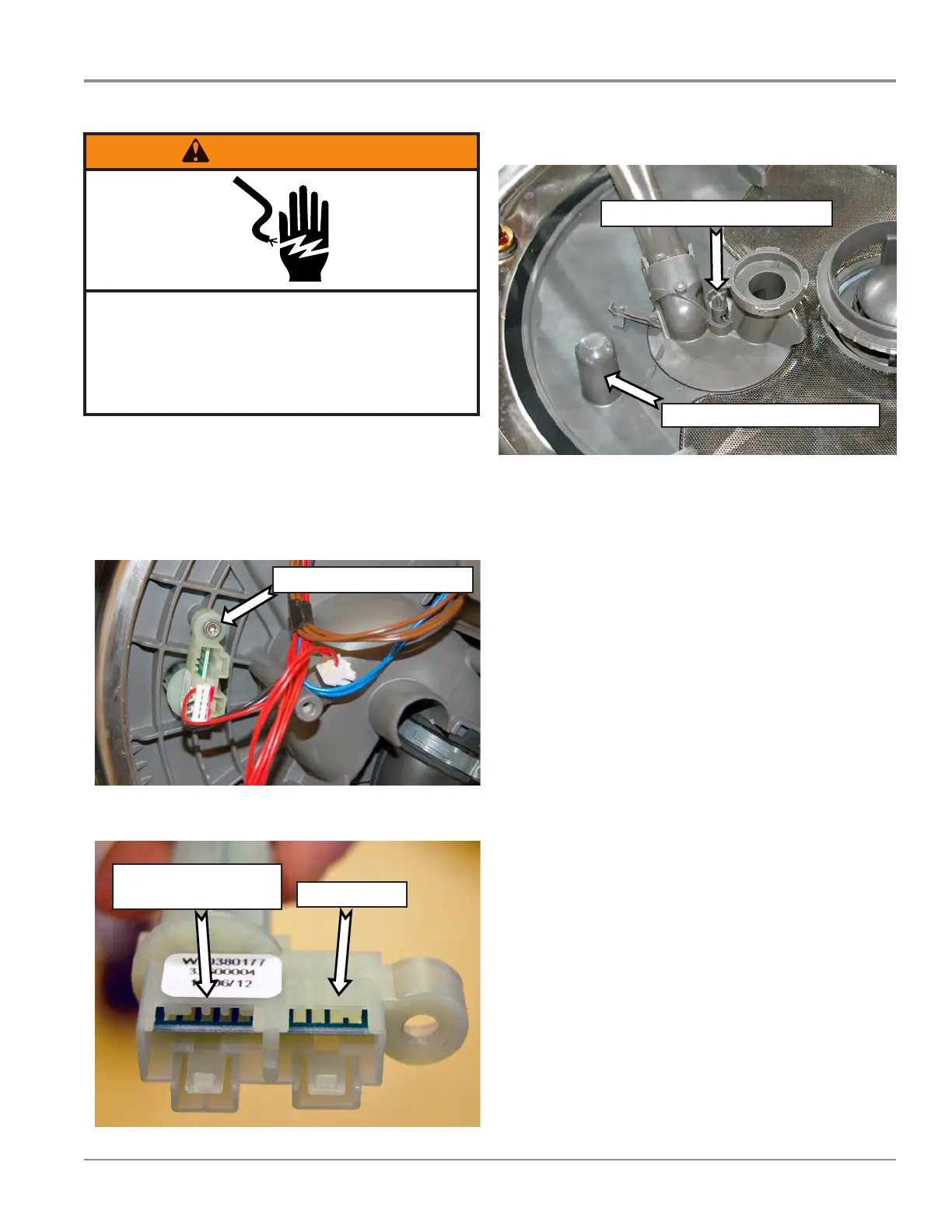

COMPONENT ACCESS
Kenmore Elite 2013 Stainless Steel Tall Tub Dishwasher
n
3-25
To remove the Lower Spray Arm Sensor
(Available on models with the controlled lower spray arm.)
1. Unplug dishwasher or disconnect power.
2. Disconnect the harness from controlled lower spray arm
sensor.
3. Remove 1 Torx screw, see gure 1. (Diverter assembly
removed for open view of sensor.
4. Li out and remove from sump, see gure 2.
Figure 1
Figure 2
Removing Lower Spray Arm Sensor
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Controlled Spray Arm Sha and Sensor
Controlled Spray Arm Shaft
Spray Arm Sensor Housing
Remove 1 #10 Torx screw
Not Used
Connects to Control
P11 & P13
Figure 3
