3-24
n
Kenmore Elite 2013 Stainless Steel Tall Tub Dishwasher
COMPONENT ACCESS
3. Remove 2 Torx screws, see gure 2. (Diverter assembly
shown without lower wash arm motor.)
4. Li out, see gure 2.

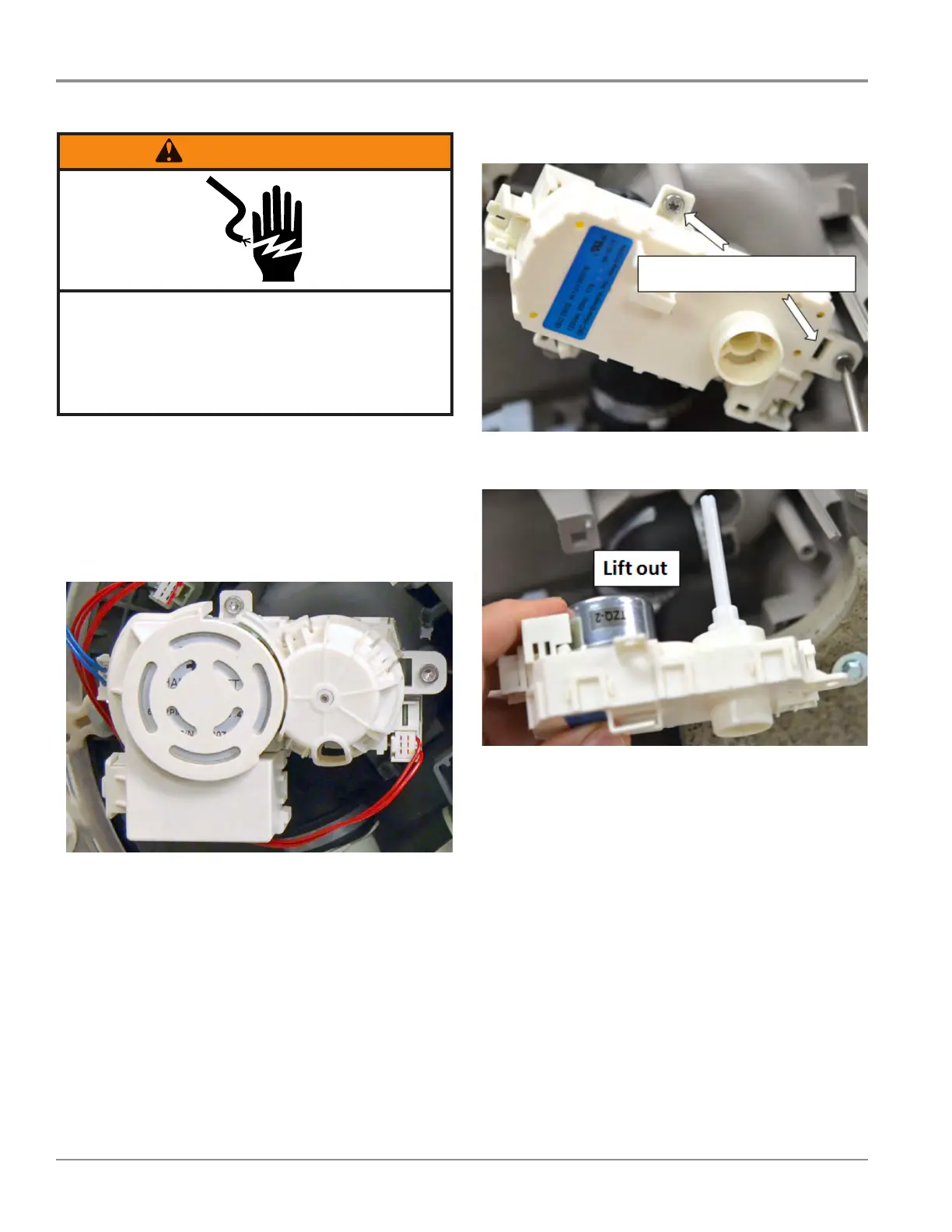

To remove the Diverter Assembly:
1. Unplug dishwasher or disconnect power.
2. If not done already, disconnect the diverter motor and
sensor harnesses; and if available, the lower wash arm
motor harness*. (See gure 1.)
*Note: The lower spray arm motor, which is incorporated
into the diverter assembly (see gure 1), is available on
models that have the controlled lower spray arm.
Figure 1 - Diverter assembly w/spray arm motor
Note: The diverter disc is keyed onto the motor sha. The
diverter motor can be removed with out removing the diverter
disc rst but to install the diverter motor, the diverter housing
must be removed to align the diverter disc to the motor sha.
Remove 2 #10 Torx screws
Removing Diverter Assembly
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Figure 3
Figure 2 - Diverter assembly w/o spray arm motor
