Sears Elite 665.12779K310 - Removing Diverter Disk

3-16
n
Kenmore Elite 2013 Stainless Steel Tall Tub Dishwasher
COMPONENT ACCESS
Figure 4
Figure 6
Figure 7
Figure 5
Diverter Disk

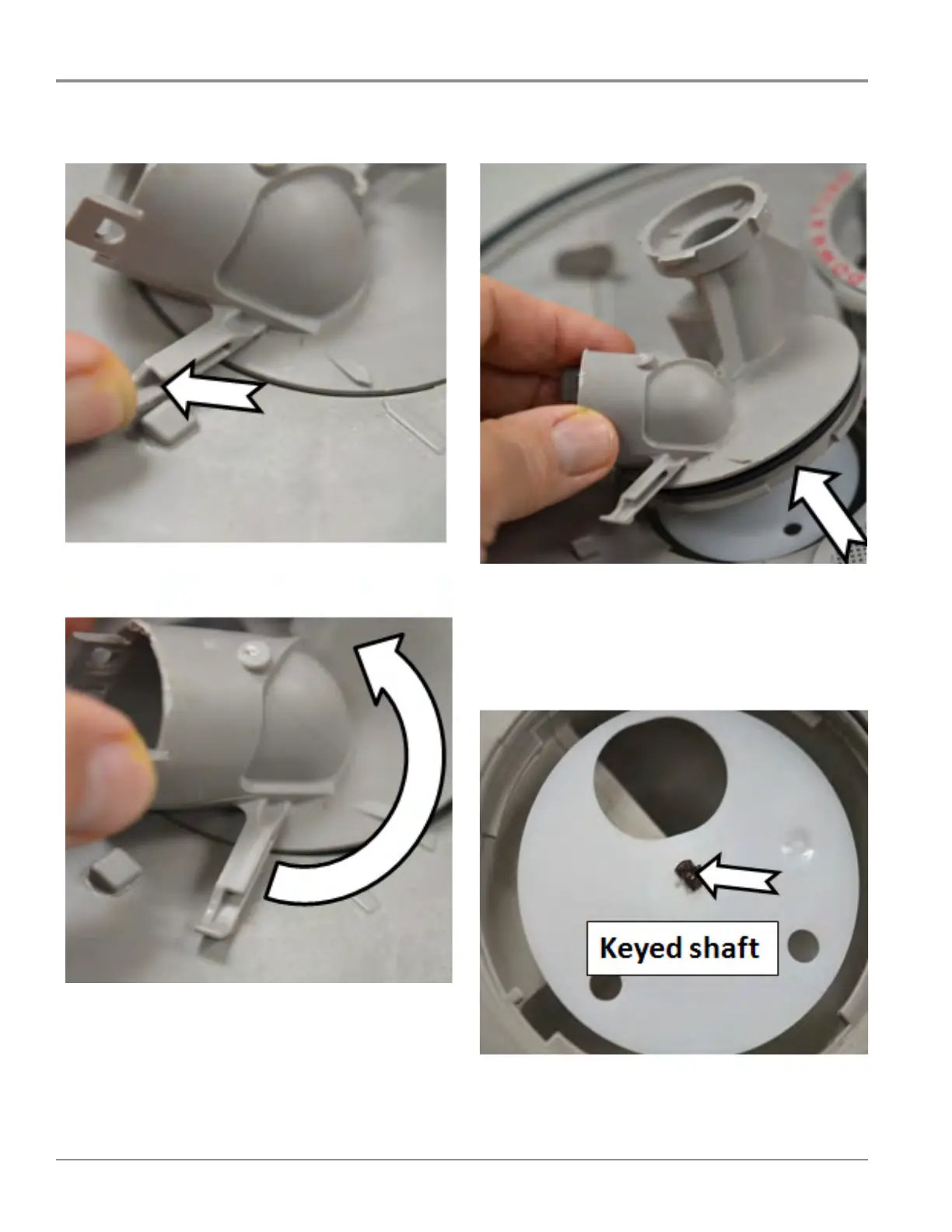

6. The diverter disc aaches to a keyed sha, see gure 7.
3. Release the lock on the diverter housing, see gure 4.
Removing Diverter Disk (continued)
connued next page . . .
4. Rotate the housing counterclockwise, see gure 5.
5. Li out the housing, see gure 6.
