Kenmore Elite 2013 Stainless Steel Tall Tub Dishwasher
COMPONENT ACCESS
Figure 12

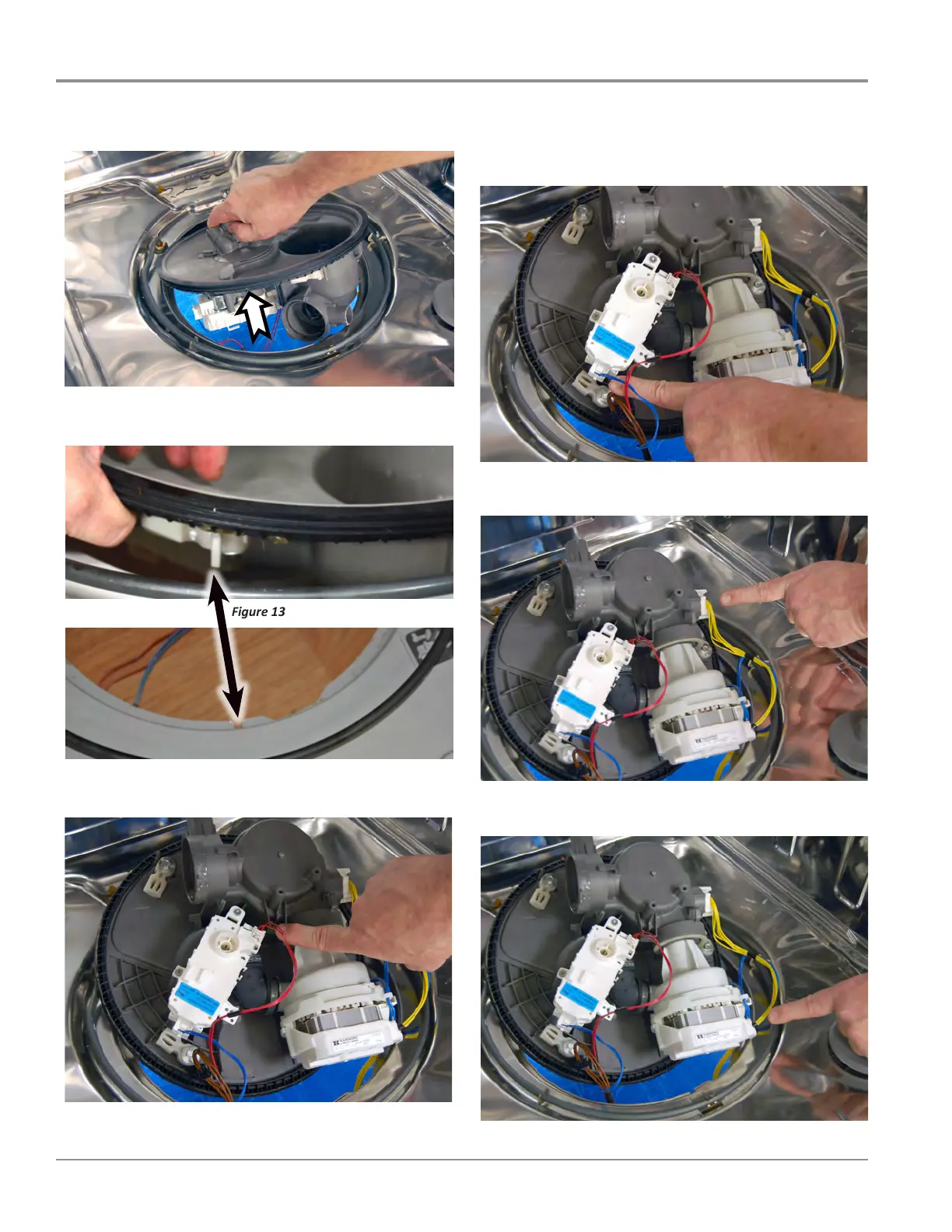

9. Tilt the assembly and li out to remove, see gures 12.
10. Unplug the diverter posion switch harness, see gure 15.
Figure 13
Figure 14
NOTE: When installing the sump assembly, align the tab on the
assembly with the slot in the tub, see gures 13 and 14.
Removing Sump Assembly & Drain Pump (continued)
Figure 15
11. Unplug the diverter motor harness, see gure 16.
NOTE: Also disconnect the lower spray arm motor harness
on models that have the controlled lower spray arm.
Figure 16
12. Unplug the OWI / NTC harness, see gure 17.
Figure 17
13. Unplug the wash motor harness, see gure 18 .
Figure 18
