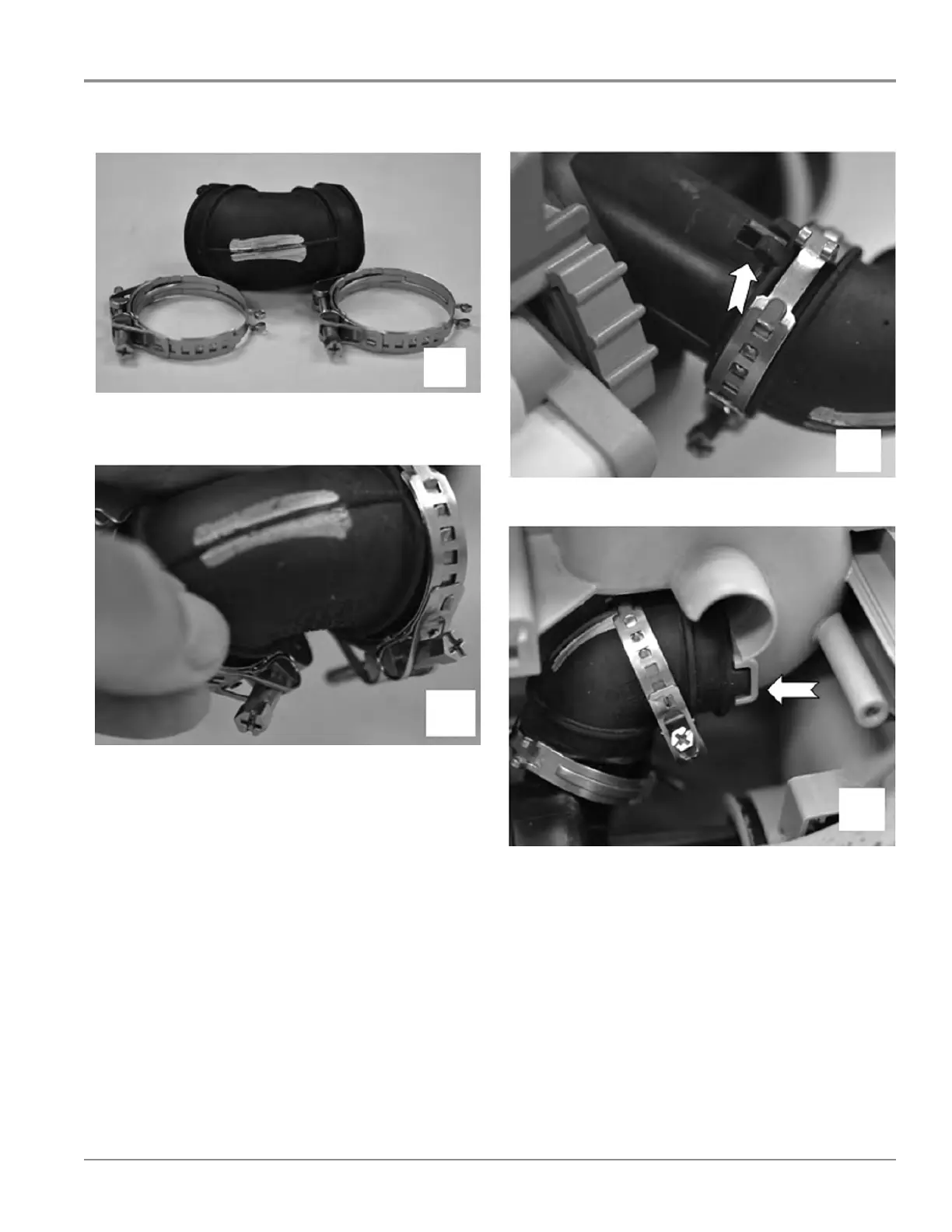

5. Wash motor hose and clamps, see gure 5.
6. Install clamps with screws toward boom, see gure 6.
6
5
Figure 5
Figure 6
Figure 7
Figure 8
7. Align tabs and ghten clamps, see gures 7 and 8.
8. Install motor and pump assembly. Fill sump with water
and check for leaks.
Steps for Installing New Wash Motor (continued)
7
8
