• INTELLIGENT RESET: If a fault condition is initiated, the 5
minute delay on break time period is initiated and the unit will
restart after these delays expire. During this period the fault LED
will indicate the cause of the fault. If the fault condition still exists
or occurs 2 or 4 times (depending on 2 or 4 setting for Lockout dip
switch) before 60 minutes, the unit will go into a hard lockout and
requires a manual lockout reset.
A single condensate overflow fault will cause the unit to go into a
hard lockout immediately, and will require a manual lockout reset.
START _,,I
NO
RESET ON R
• LOCKOUT RESET: A hard lockout can be reset by turning the
unit thermostat off and then back on when the "RESET" dip
switch is set to "Y" or by shutting off unit power at the circuit
breaker when the "RESET" dip switch is set to "R".
NOTES: The blower motor will remain active during a lockout
condition.
YES
YES
NO
NO
YES NO
YES
NO
NO
LOCKOUT CAN BE SET
TO 4 VIA DIP SWITCH
YES
YES
YES
YES
YES
NO
NO

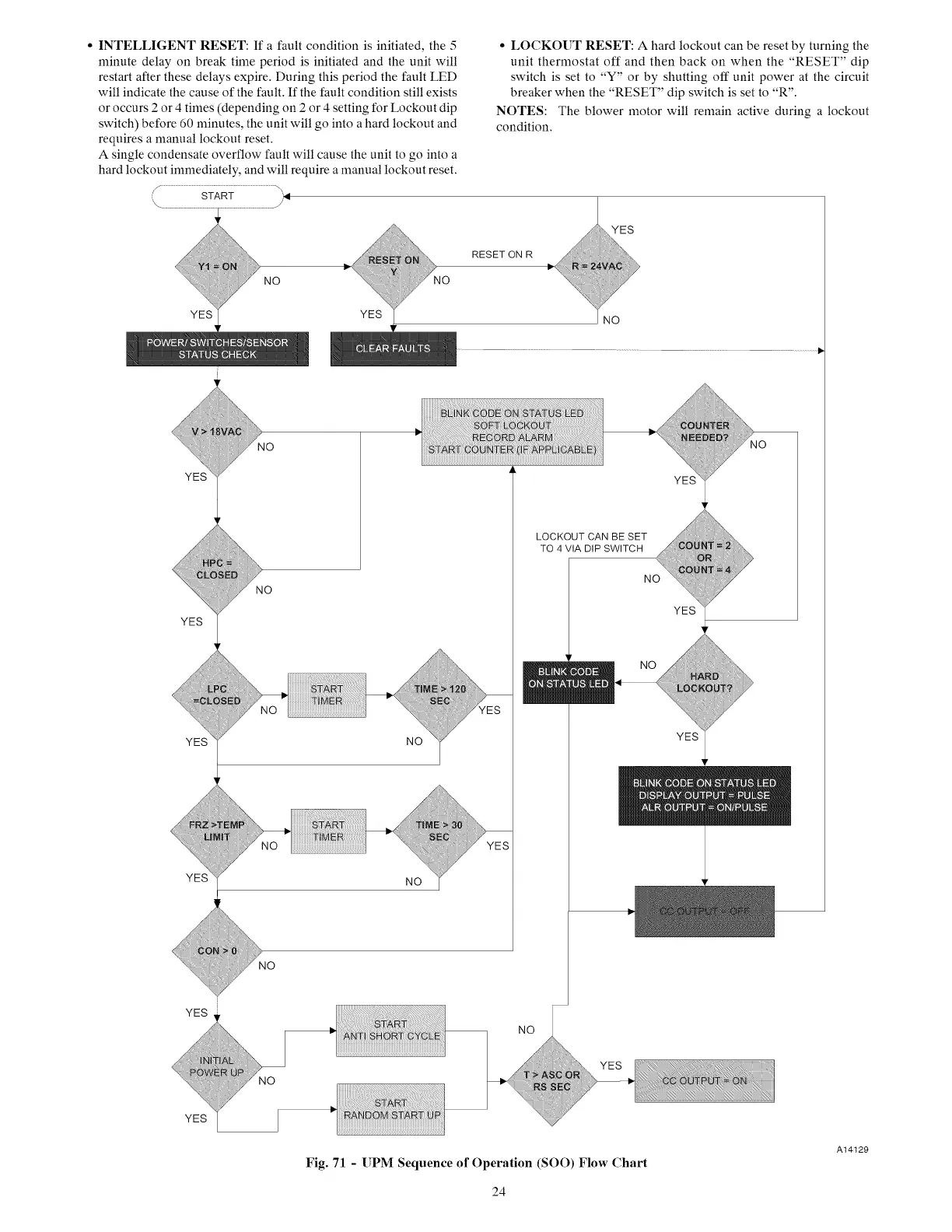

Fig. 71 - UPM Sequence of Operation (SOO) Flow Chart
24
A14129

Sears GT Series Specifications

General

Heating Capacity	Varies by model, typically between 18, 000 BTU/h and 60, 000 BTU/h
Cooling Capacity	Varies by model, typically between 18, 000 BTU/h and 60, 000 BTU/h
SEER Rating	Varies by model, typically between 13 and 16
HSPF Rating	Varies by model, typically between 7.0 and 8.5
Stages	Single-stage or Two-stage (depending on the specific model)
Refrigerant	R-22 or R-410A (depending on the specific model and year of manufacture)
Warranty	Varies, typically 1-year parts and labor, 5-year compressor (check specific model details)
