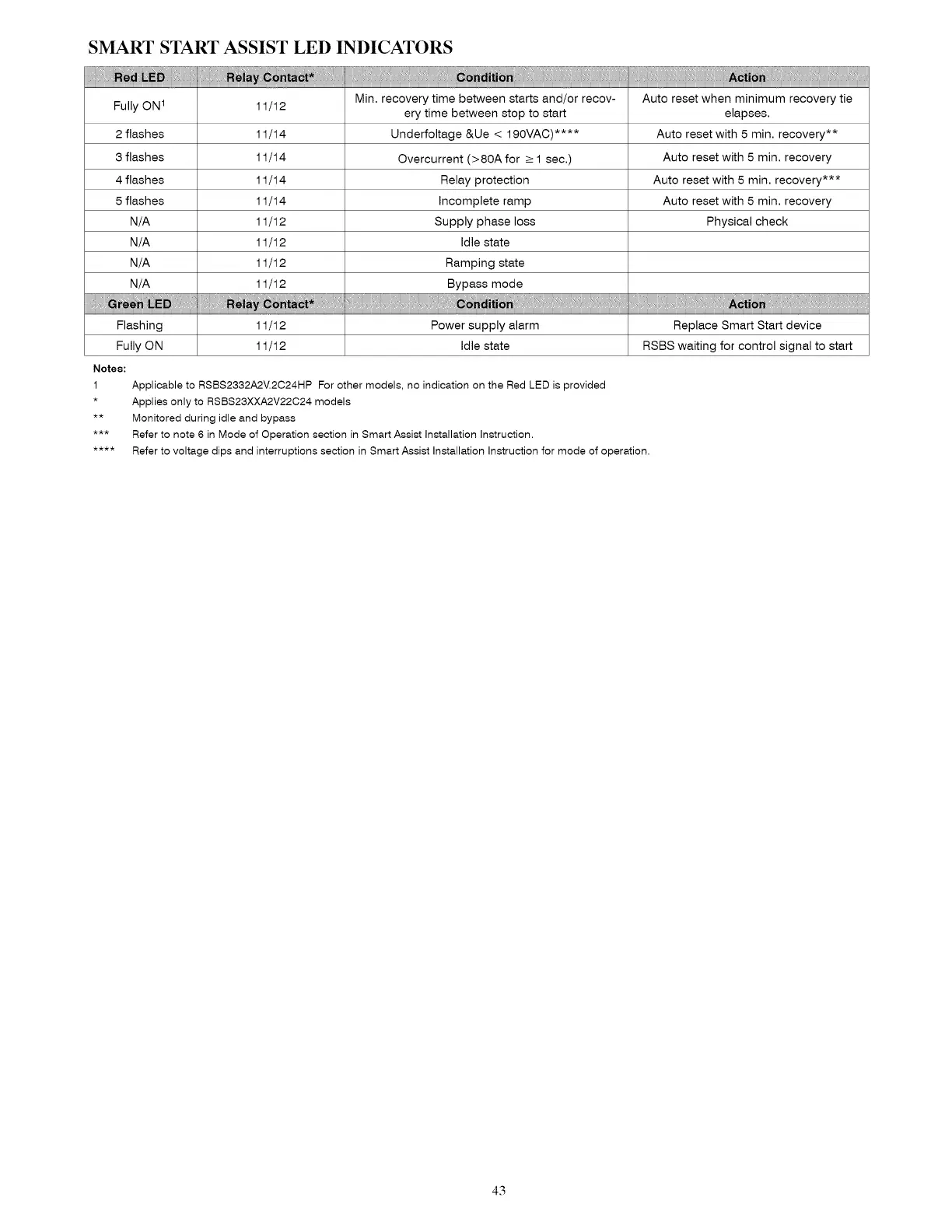

SMART START ASSIST LED INDICATORS
Min. recovery time between starts and/or recov- Auto reset when minimum recovery tie
Fully ON 1 11/12
ery time between stop to start elapses.
2 flashes 11/14 Underfoltage &Ue < 190VAC)**** Auto reset with 5 min. recovery**
3 flashes 11/14 Overcurrent (>80A for _>1 sec.) Auto reset with 5 min. recovery
4 flashes 11/14 Relay protection Auto reset with 5 min. recovery***
5 flashes 11/14 Incomplete ramp Auto reset with 5 min. recovery
N/A 11/12 Supply phase loss Physical check
N/A 11/12 Idle state
N/A 11/12 Ramping state
N/A 11/12 Bypass mode
Flashing 11/12 Power supply alarm Replace Smart Start device
Fully ON 11/12 Idle state RSBS waiting for control signal to start
Notes:
1
Applicable to RSBS2332A2V.2C24HP For other models, no indication on the Red LED is provided
Applies only to RSBS23XXA2V22C24 models
Monitored during idle and bypass
Refer to note 6 in Mode of Operation section in Smart Assist Installation Instruction.
Refer to voltage dips and interruptions section in Smart Assist Installation Instruction for mode of operation.
43

Sears GT Series Specifications

General

Heating Capacity	Varies by model, typically between 18, 000 BTU/h and 60, 000 BTU/h
Cooling Capacity	Varies by model, typically between 18, 000 BTU/h and 60, 000 BTU/h
SEER Rating	Varies by model, typically between 13 and 16
HSPF Rating	Varies by model, typically between 7.0 and 8.5
Stages	Single-stage or Two-stage (depending on the specific model)
Refrigerant	R-22 or R-410A (depending on the specific model and year of manufacture)
Warranty	Varies, typically 1-year parts and labor, 5-year compressor (check specific model details)
