Counter-Flow Configuration
The Counter-Flow Configuration water source heat pump is a
dedicated down flow configuration. Available from the factory in
Left-hand and right-hand return air configurations.
Vertical Configuration
The Vertical (VT) Configuration water source heat pump is
designed to be field configured for various configurations. This is
achieved by relocating Electrical box (E-box), unit panels and
reorienting blower to discharge [JR BACK, OR SIDE. See Fig. 34
Through Fig. 37 for more detail.
NOTE: The unit, as shipped from the factory, is configured in
left-handed return configuration.
UNIT OPERATION HAZARD
Failure to follow this caution may result in equipment
damage or improper operation.
Discharge air configuration change is not possible on Heat
Pumps equipped with Electric Heat Option.
NOTE: Blower E-box and panel configuration changes should be
done prior to unit being installed in the final location,

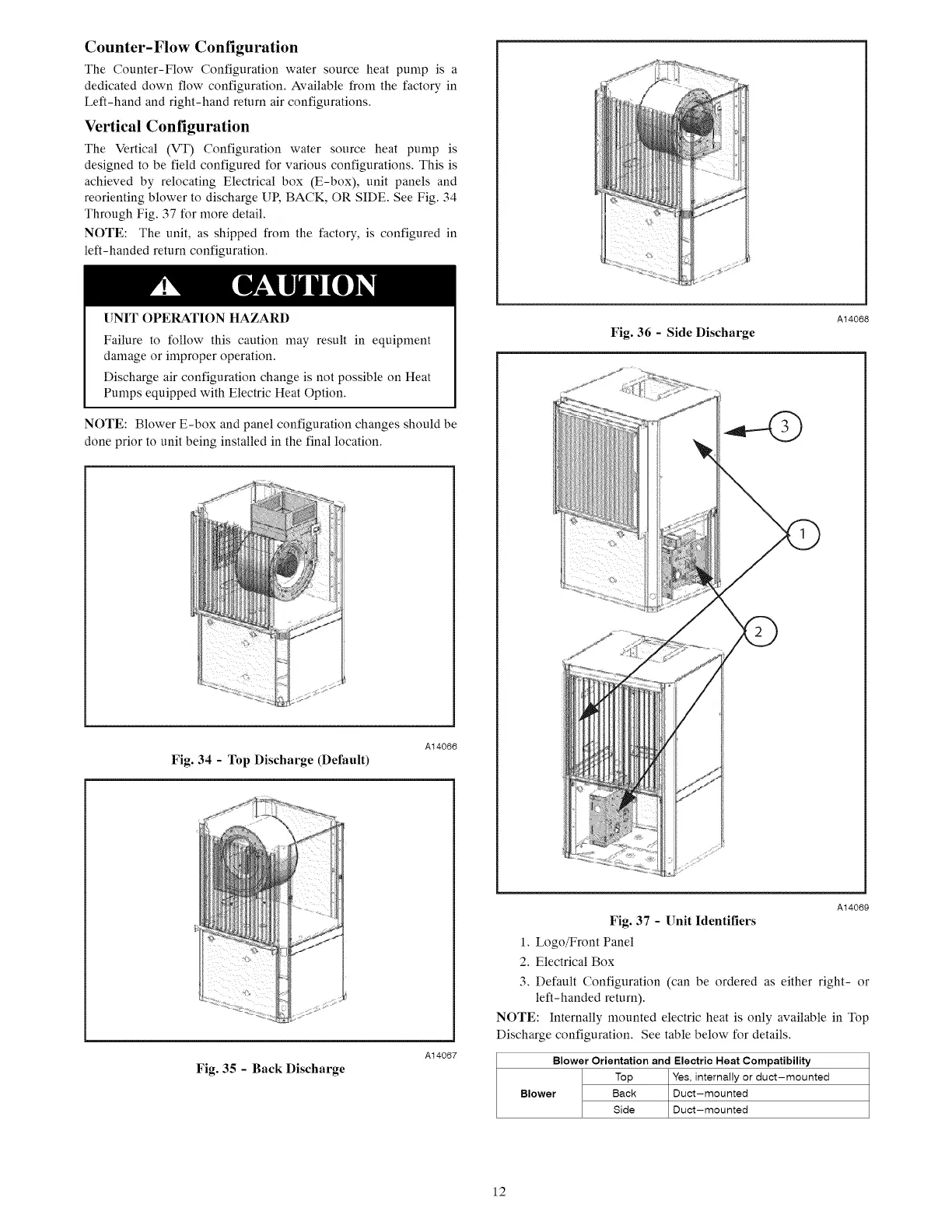

Fig. 34 - Top Discharge (Default)
A14066
Fig. 35 - Back Discharge
A14067
Fig. 36 - Side Discharge
A14068
A14069
Fig. 37 - Unit Identifiers
1. Logo/Front Panel
2. Electrical Box
3. Default Configuration (can be ordered as either right- or
left-handed return).
NOTE: Internally mounted electric heat is only available in Top
Discharge configuration, See table below for details,
Blower Orientation and Electric Heat Compatibility
Top Yes, internally or duct-mounted
Blower Back Duct-mounted
Side Duct-mounted
12

Sears GT Series Specifications

General

Heating Capacity	Varies by model, typically between 18, 000 BTU/h and 60, 000 BTU/h
Cooling Capacity	Varies by model, typically between 18, 000 BTU/h and 60, 000 BTU/h
SEER Rating	Varies by model, typically between 13 and 16
HSPF Rating	Varies by model, typically between 7.0 and 8.5
Stages	Single-stage or Two-stage (depending on the specific model)
Refrigerant	R-22 or R-410A (depending on the specific model and year of manufacture)
Warranty	Varies, typically 1-year parts and labor, 5-year compressor (check specific model details)
