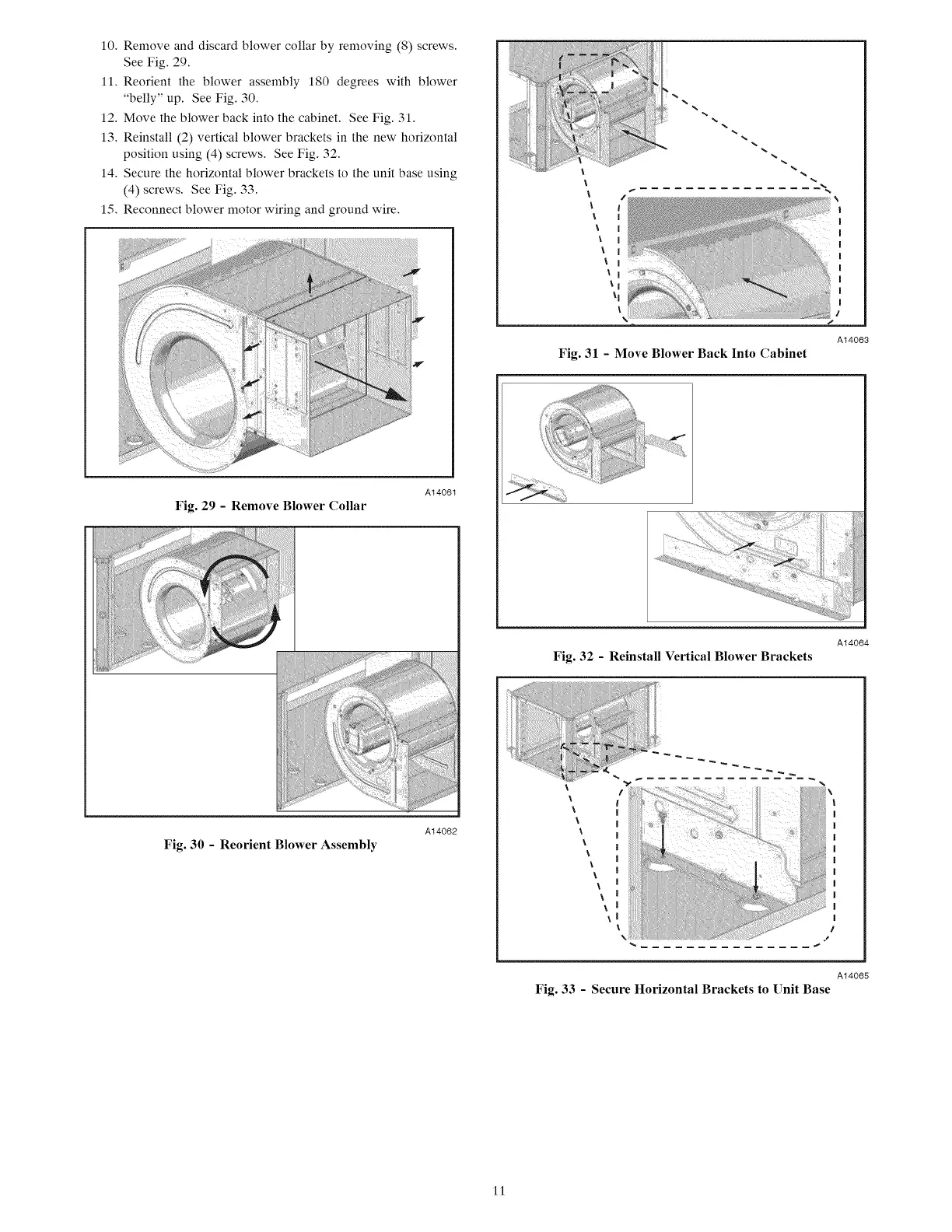

10,Removeanddiscardblowercollarbyremoving(8)screws.
SeeFig.29.
11,Reorienttheblowerassembly180degreeswithblower
"belly"up.SeeFig.30.
12.Movetheblowerbackintothecabinet.SeeFig.31.
13,Reinstall(2)verticalblowerbracketsinthenewhorizontal
positionusing(4)screws.SeeFig.32,
14,Securethehorizontalblowerbracketstotheunitbaseusing
(4)screws.SeeFig.33,
15.Reconnectblowermotorwiringandgroundwire.
,ii@i!i_i]i!i/iiiiiiii//iiiiE_
Fig. 29 - Remove Blower Collar
A14061
Fig. 30 - Reorient Blower Assembly
A14062
Fig. 31 - Move Blower Back Into Cabinet
A14063
i
l t
i
..... ', ; NN,,,_
A14064
Fig. 32 - Reinstall Vertical Blower Brackets
\
\
\
\
\
\
\
A14065
Fig. 33 - Secure Horizontal Brackets to Unit Base
11
