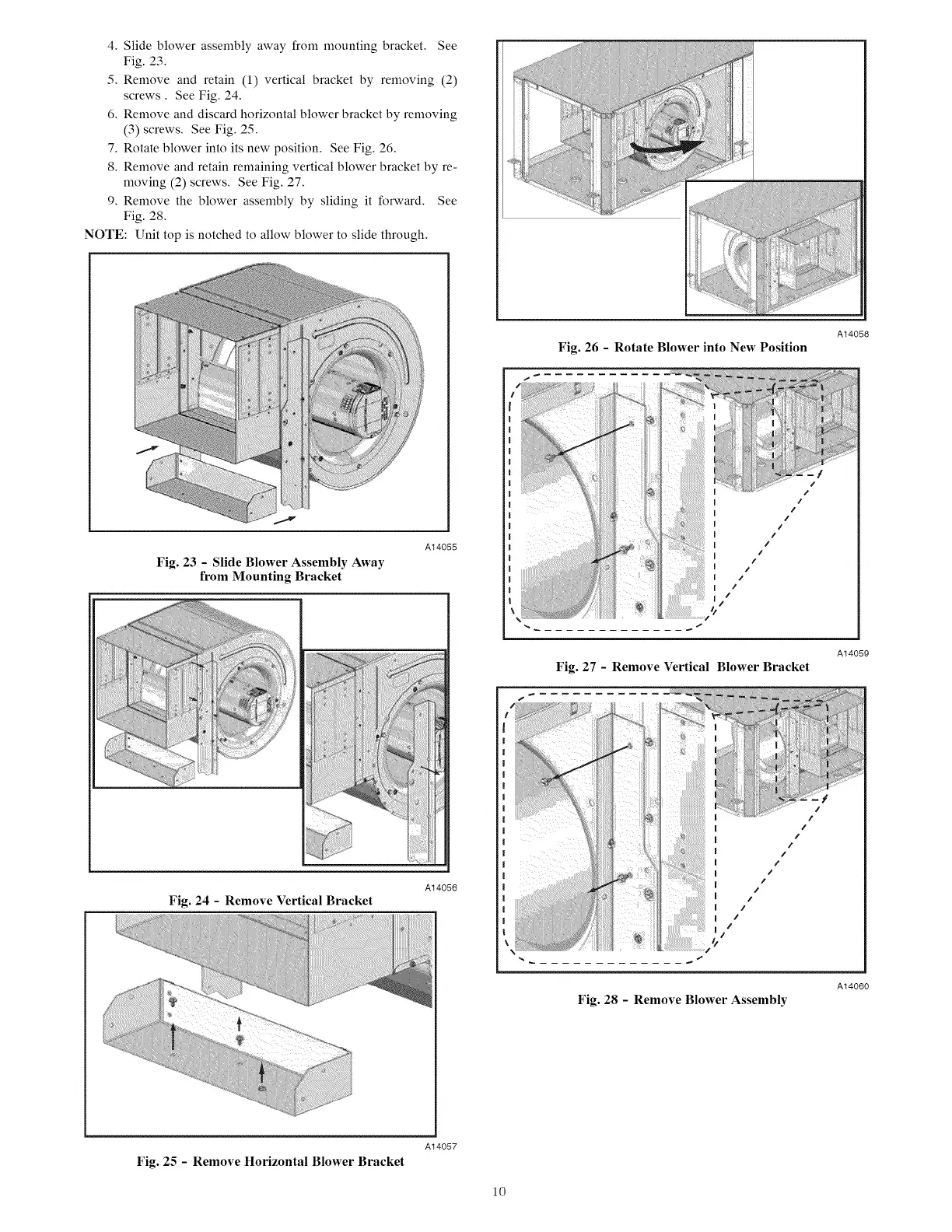

4. Slide blower assembly away from mounting bracket. See
Fig. 23.
5. Remove and retain (1) vertical bracket by removing (2)
screws. See Fig. 24.
6. Remove and discard horizontal blower bracket by removing
(3) screws. See Fig. 25.
7. Rotate blower into its new position. See Fig. 26.
8. Remove and retain remaining vertical blower bracket by re-
moving (2) screws. See Fig. 27.
9. Remove the blower assembly by sliding it forward. See
Fig. 28.
NOTE: Unit top is notched to allow blower to slide through.
J
Fig. 23 - Slide Blower Assembly Away
from Mounting Bracket
A14055
Fig. 24 - Remove Vertical Bracket
A14056
......
.......
Fig. 26 - Rotate Blower into New Position
A14058
i_i_i_i!i_ii!i_
__ii_i_iiii_ii_!
iii¸ ii!ii_:_!
Fig. 27 - Remove Vertical Blower Bracket
A14059
Fig. 28 - Remove Blower Assembly
A14060
A14057
Fig. 25 - Remove Horizontal Blower Bracket
10
