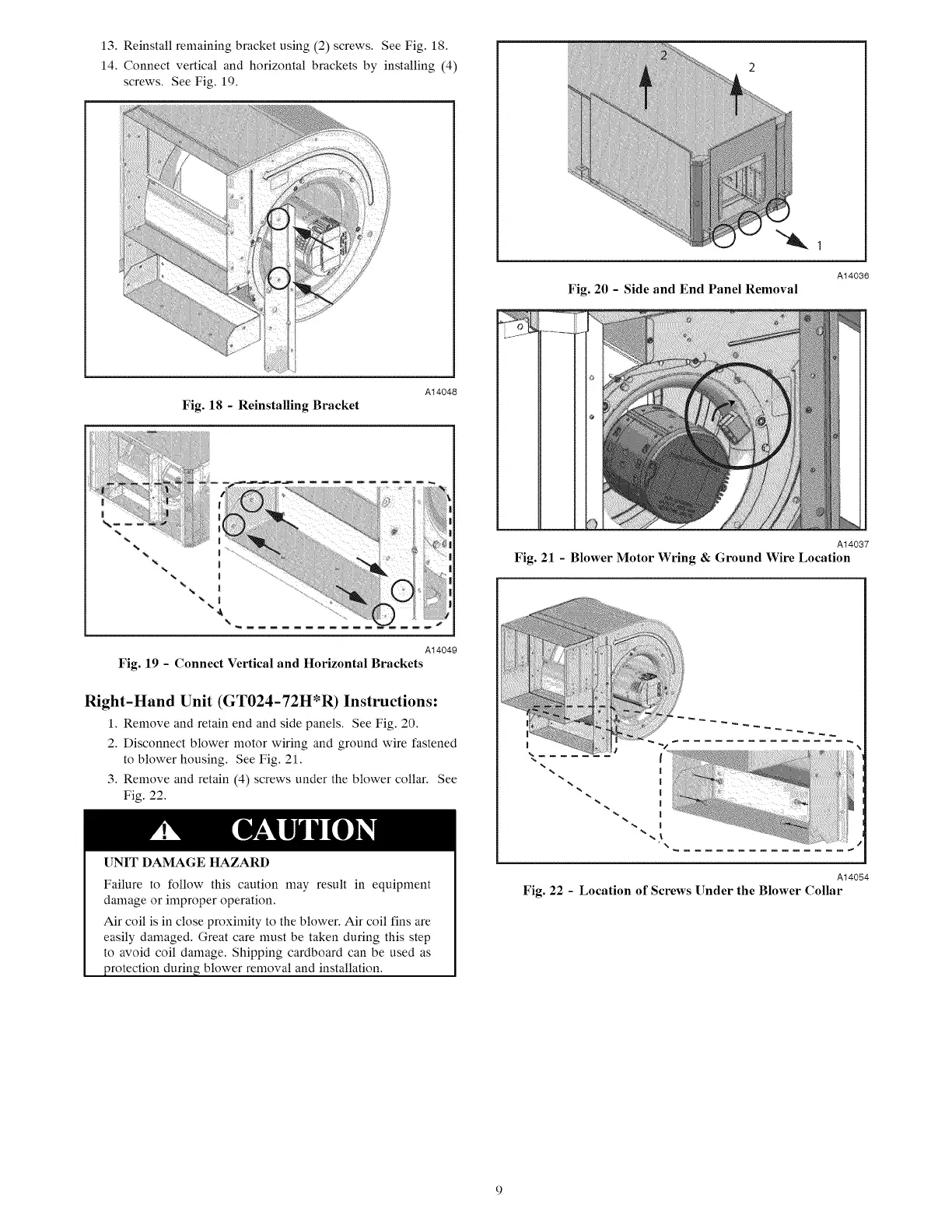

13. Reinstall remaining bracket using (2) screws. See Fig. 18.
14. Connect vertical and horizontal brackets by installing (4)
screws. See Fig. 19.
Fig. 20 - Side and End Panel Removal
A14036
A14048
Fig. 18 - Reinstalling Bracket
%
%
i¸' _ t! i_i_
A14049
Fig. 19 - Connect Vertical and Horizontal Brackets
Right-Hand Unit (GT024-72H*R) Instructions:
1. Remove and retain end and side panels. See Fig. 20.
2. Disconnect blower motor wiring and ground wire fastened
to blower housing, See Fig. 21.
3. Remove and retain (4) screws under the blower collar, See
Fig. 22.
[]NIT DAMAGE HAZARD
Failure to follow this caution may result in equipment
damage or improper operation,
Air coil is in close proxinfity to the blower. Air coil fins are
easily damaged. Great care must be taken during this step
to avoid coil damage. Shipping cardboard can be used as
protection during blower removal and installation,
A14037
Fig. 21 - Blower Motor Wring & Ground Wire Location
A14054
Fig. 22 - Location of Screws Under the Blower Collar

Sears GT Series Specifications

General

Heating Capacity	Varies by model, typically between 18, 000 BTU/h and 60, 000 BTU/h
Cooling Capacity	Varies by model, typically between 18, 000 BTU/h and 60, 000 BTU/h
SEER Rating	Varies by model, typically between 13 and 16
HSPF Rating	Varies by model, typically between 7.0 and 8.5
Stages	Single-stage or Two-stage (depending on the specific model)
Refrigerant	R-22 or R-410A (depending on the specific model and year of manufacture)
Warranty	Varies, typically 1-year parts and labor, 5-year compressor (check specific model details)
