© 2012 SeaStar Solutions Optimus 360 User’s Manual, Rev. C
1-5

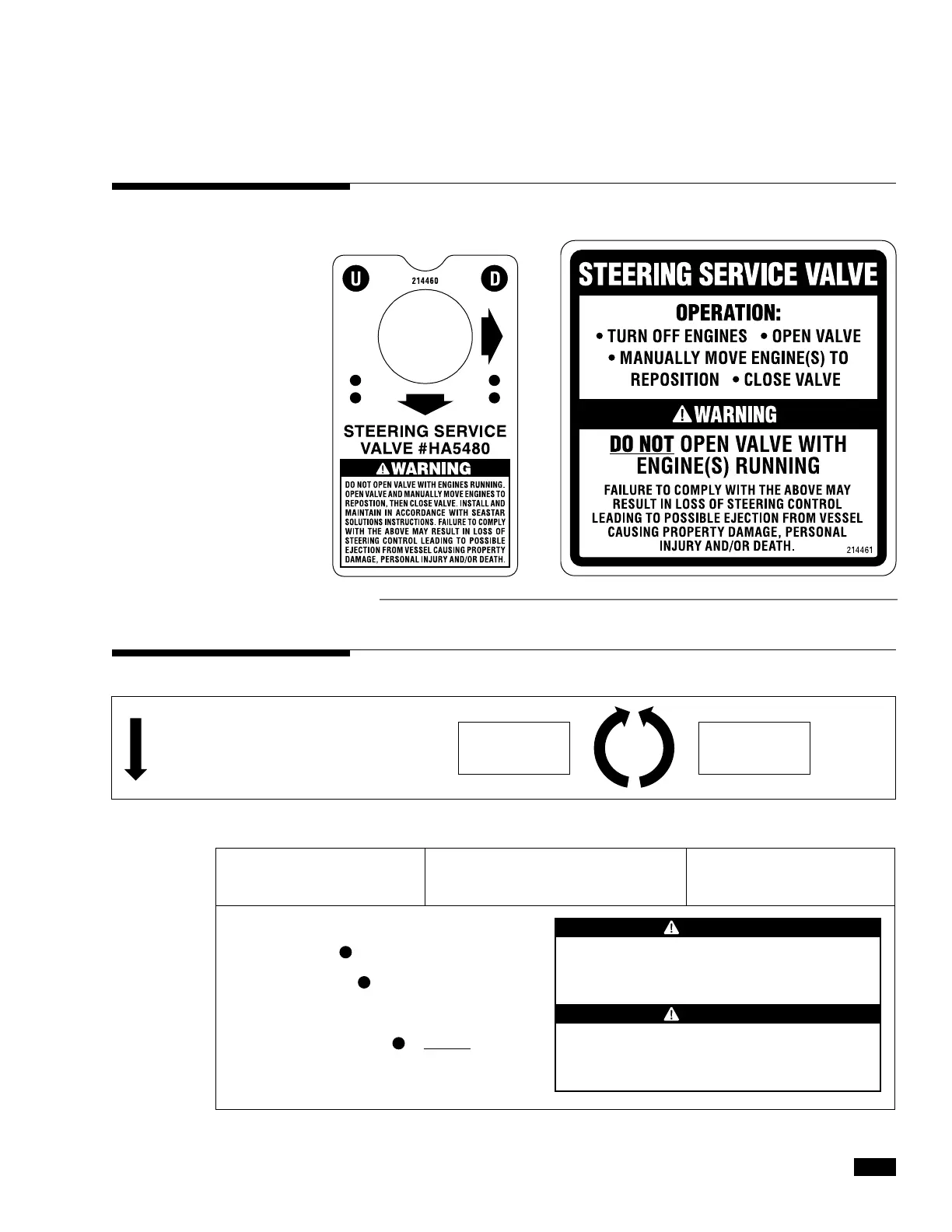

Safety Labels (continued)
Steering Service
Valve Labels
To be installed close to the service valve.
Figure 1-5. Steering service valve labels.
PID# 682049
A B
Insert appropriate
F, R, IDLE or INCREASE
decal here. Consult
installation manual.
Insert appropriate
F, R, IDLE or INCREASE
decal here. Consult
installation manual.
USING THE ACTUATOR OVERRIDE SYSTEM MAY SEVERELY LIMIT
YOUR BOATS CONTROL. IT SHOULD ONLY BE USED IN AN EMERGENCY
IF YOU ARE UNABLE TO CALL FOR ASSISTANCE. ALWAYS TRY
ALTERNATIVE CONTROLLING DEVICES. PROCEED WITH EXTREME
CAUTION, READ USER’S MANUAL, ALWAYS WEAR A PFD & LANYARD.
MANUAL OVERRIDE OPERATION
ACTUATOR
1. MOVE ALL LEVERS A IN THE DIRECTION OF ARROW TO
DISENGAGE DRIVE MECHANISM.
2. ROTATE "SHIFT" LEVER B CLOCKWISE, OR COUNTER-
CLOCKWISE TO MOVE CONTROL CABLE INTO DESIRED GEAR.
3. CONFIRM YOUR DESIRED GEAR IS ENGAGED
BEFORE APPLYING THROTTLE.
4. VERY SLOWLY ROTATE LEVER B ON THROTTLE ACTUATOR
TO “INCREASE” RPM. NO MORE THAN 1/2 TURN SHOULD
BE REQUIRED.
5. KEY OFF IGNITION TO SLOW AND STOP VESSEL.
U.S. COAST GUARD REQUIRES START-IN-GEAR PROTECTION.
IF YOUR ENGINE DOES NOT HAVE THIS FEATURE, THIS CONTROL
SYSTEM WILL PROVIDE START-IN-GEAR PROTECTION MEETING
U.S.C.G. REQUIREMENTS OF 33 CFR PART 183, SUB PART L.
CONSULT INSTALLATION MANUAL.
PID# 682048
Affix PORT/STARBOARD decal here,
consult installation manual.
Affix SHIFT/THROTTLE decal here,
consult installation manual.
WARNING
WARNING
Figure 1-6. Actuator A and B Locator Decal, PID# 682049.
Figure 1-7. Optimus 360 Actuator decal, PID# 682048.
