Handle Motion
The handle can be moved in any direction or rotated left or right.
When released the joystick will always snap back to center and put
the engine in neutral idle.
Moving the handle away from center or rotating it will cause the engines
to shift into the correct gear for the desired motion. Further handle
motion in the same direction will apply throttle and provide more thrust
in the chosen direction. The joystick is proportional and guided in
each axis.
Boost Button
Increases the power the engines can apply and may be turned on or
off at any time. It can be very handy when handling the boat in wind
or current. The system will remember the boost mode status so if it
is left on, it will be on again next time the joystick is activated.
A blue LED on the Boost button will illuminate when in boost mode.
Take Command Button
Activates the joystick and allows the joystick to take control of the
vessel. The joystick can only take control of the boat when the control
head levers are both in the neutral idle position.
The LED on the Take Command button is used to indicate joystick
status:

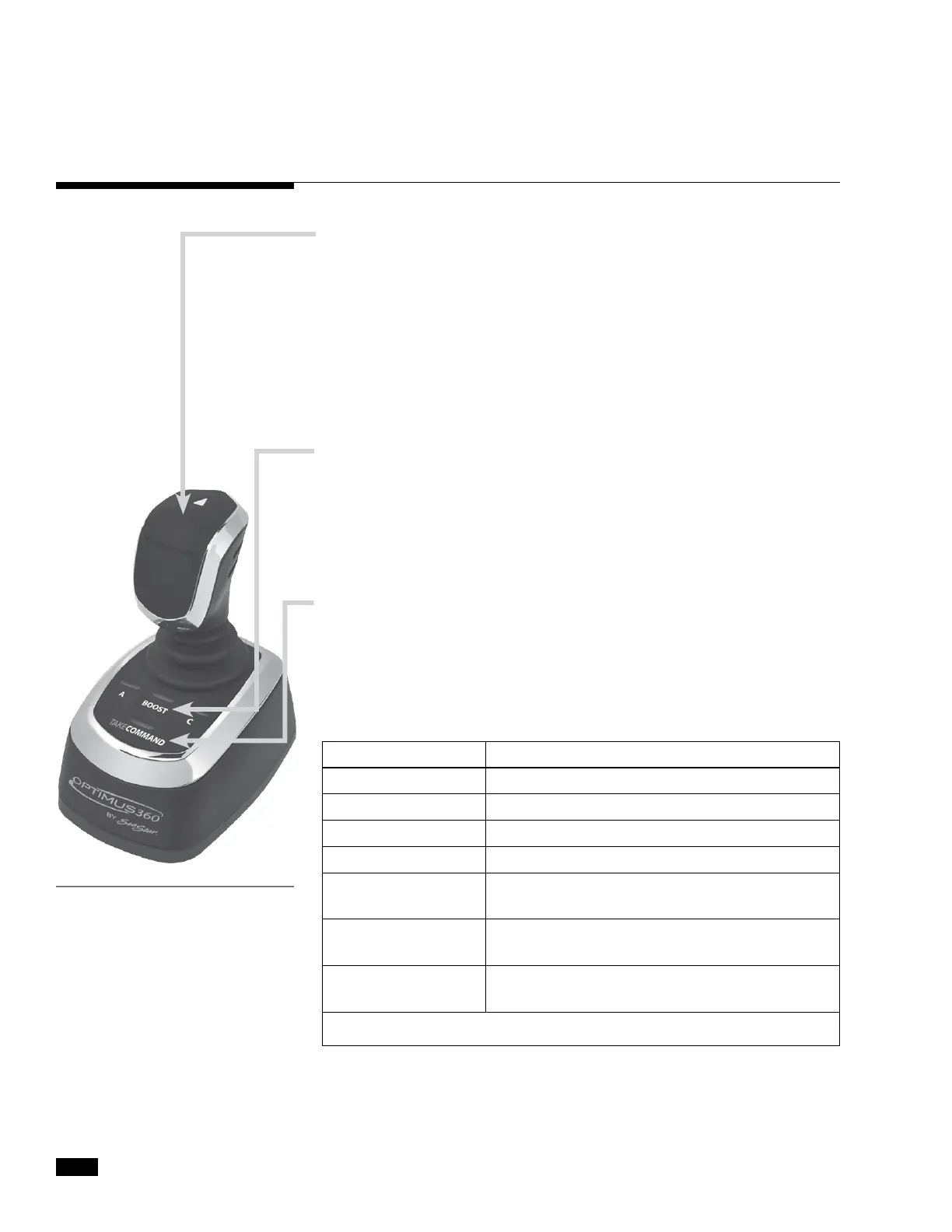

6.1 Joystick Fundamentals
Figure 6-1.
A and C Buttons
Reserved for future use. Not active at this time.
LED State Joystick Status
Off joystick has no power
Steady white joystick is powered but inactive
Steady blue joystick has control of the vessel
Slow flashing blue joystick is initializing rudder and EST system
Alternating red and
blue flashing
joystick has control of the vessel, but there is
an active non-critical warning fault*
Fast flashing red joystick has a critical fault* and is awaiting
transfer of control to a control head
Steady red joystick has a critical fault* and is not
available for operation
* See section 10 for fault handling information.
