Installation Instructions and Owner's Manual
ACTUATOR DOWN
RELAY
ACTUATOR UP
RELAY
ROCKER
SWITCH
CIRCUIT
BREAKER
HYDRAULIC
ACTUATOR
BATTERY
+
–
GREEN
BLACK
GREEN
BLUE
BLACK
RED
GREEN/WHITE
BLUE
RED
BLACK
BLACK
BLUE/WHITE
RED
RED
BLACK
BLACK
BLACK
BLACK
GREEN/WHITE 16 AWG WIRE POWER SUPPLY
10A FUSE
BLUE/WHITE

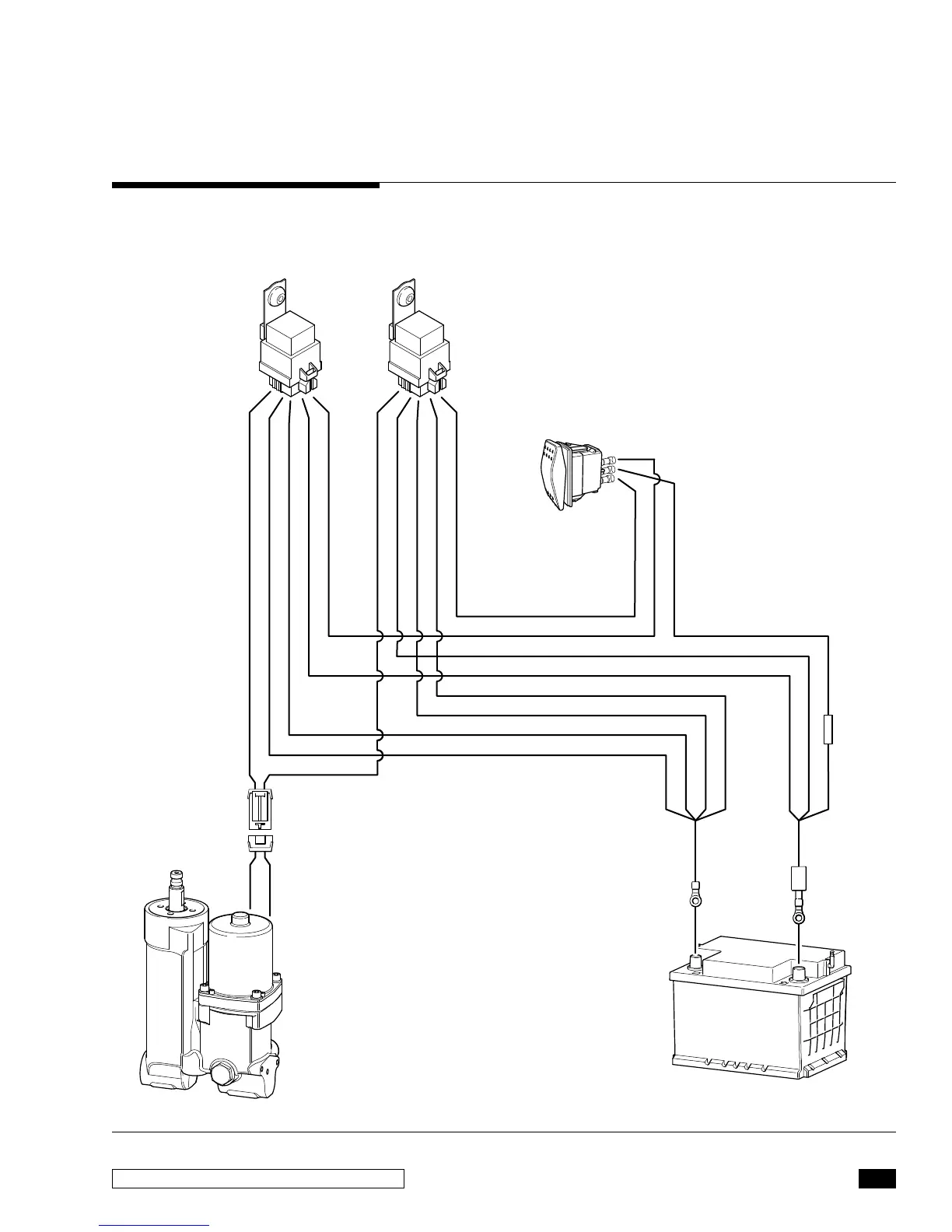

Main Wiring Diagram
Figure 11. Main Wiring diagram.
