12
SeaStar Hydraulic Jackplate
ROCKER
SWITCH
ROCKER
SWITCH
RELAY WIRING
HARNESS
GREEN/WHITE
SWITCH LEAD
BLUE/WHITE
SWITCH LEAD
TO 12V (+)
SOURCE
1. Cut an appropriate rectangular opening in the dashboard or
console panel where the rocker switch is to be mounted.
2. Route the switch leads from the relay wiring harness to the
hole in the dashboard.
3. Terminate the end of the switch leads with the supplied spade
terminals.
4. Route a fused (10A) 16AWG wire from a 12V (+) position on
the fuse panel or from the battery and terminate with a
supplied spade terminal.
5. Attach the wires to the spades on the back of the rocker
switch. The wire from the 12V (+) source should attach to the
CENTER spade on the rocker switch.
6. Do not seat the switch into the dash until after the rest of the
installation is complete and you have confirmed the Jackplate
direction is consistent with the switch direction.
If the Jackplate actuation direction
is inconsistent with the rocker
switch direction, swap the positions
of the GREEN/WHITE and BLUE/
WHITE wires on the switch spades.
NOTICE
Position the rocker switch so that it
is within easy reach of the operator.
NOTICE
The switch leads from the relay
wiring harness may not be long
enough to reach the rocker switch
position on the dashboard or
console. In this case the leads will
need to be extended.
NOTICE
CAUTION
Any additional wire spliced to the
Relay Wiring Harness must be
marine grade and meet SAE J1128.
CAUTION
Any wire from a 12V(+) source
must be protected with an
appropriate fuse or circuit breaker.
CAUTION
Ensure the harness has proper
strain relief and is routed to avoid
damage/pinching/chafing.

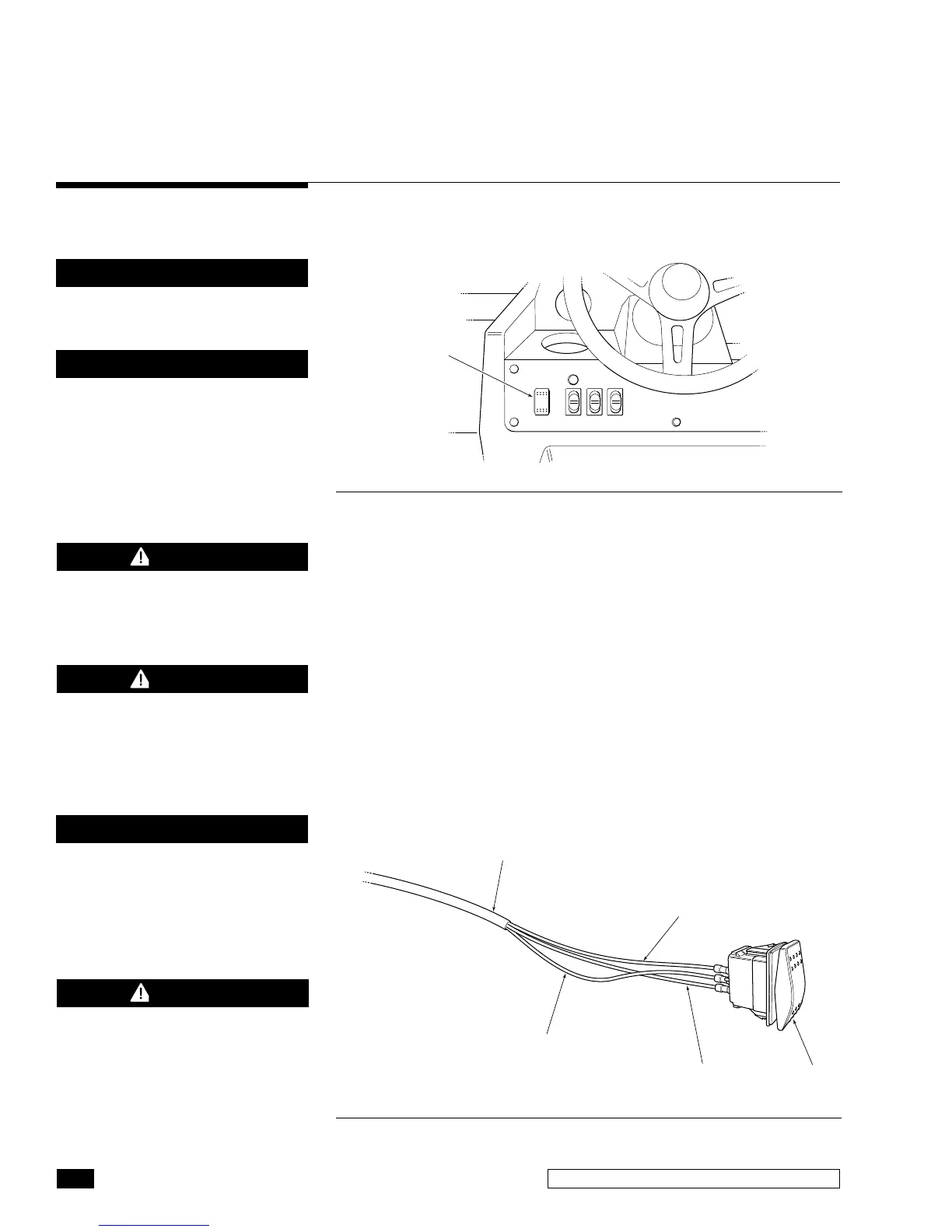

Figure 12. Rocker Switch on dash.
Figure 13. Rocker Switch connections.
2.4 Install Rocker Switch
