7
Installation Instructions and Owner's Manual
ENGINE SIDE OF
JACKPLATE
INSERT ENGINE BOLTS
AND WASHERS (SUPPLIED)
PRIOR TO MOUNTING
JACKPLATE TO TRANSOM
ADDITIONAL BOLTS PER ENGINE MANUFACTURER'S
RECOMMENDATION. SEE NOTICE
1/2" X 1-1/16"
OD WASHERS
ENGINE
MOUNTING
BOLTS
TRANSOM SIDE OF JACKPLATE
1. PRIOR to mounting the Jackplate to the transom, insert the
engine bolts into the engine side of the Jackplate. Use the
1/2” SAE washers supplied.
2.
Using connection hardware supplied by or approved by the outboard
engine manufacturer, mount the Jackplate to the transom.

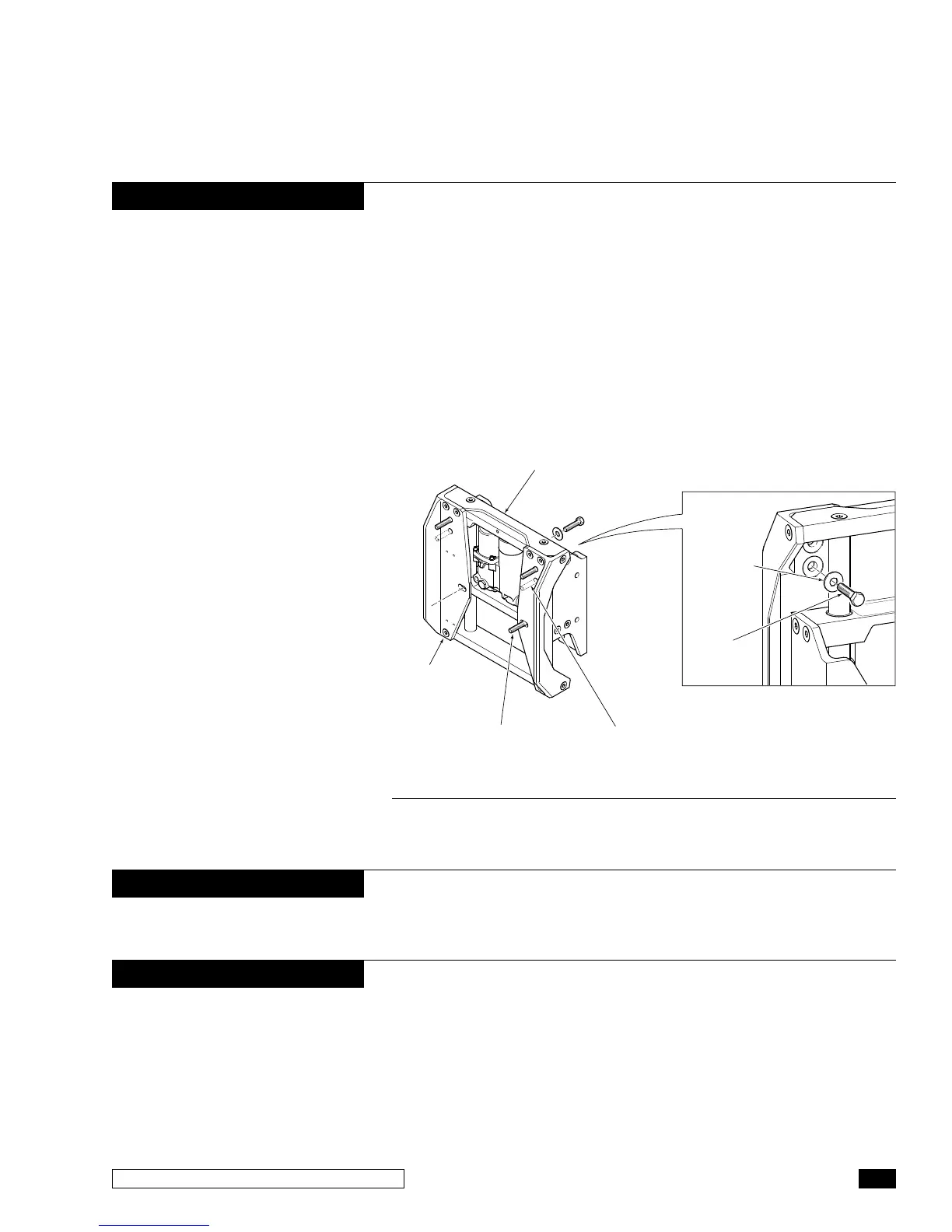

Figure 5. Engine bolt insertion.
Six bolts MUST be used for mounting engine to Jackplate if
recommended by engine manufacturer.
2.2 Mount Jackplate to Boat
The following procedure outlines the process of first mounting the
Jackplate on the boat, followed by installing the engine to the
Jackplate. If desired, the Jackplate can first be installed on the
engine, followed by installation on the boat. The order of installation
may be altered but individual steps must be followed and all
warnings and cautions must be followed.
NOTICE
Temporary connection of the harness will allow you to actuate the
Jackplate. This may assist in the installation of the engine bolts.
See Section 2.3.
NOTICE
NOTICE
