The essentials
Emergencies
F
u
ses

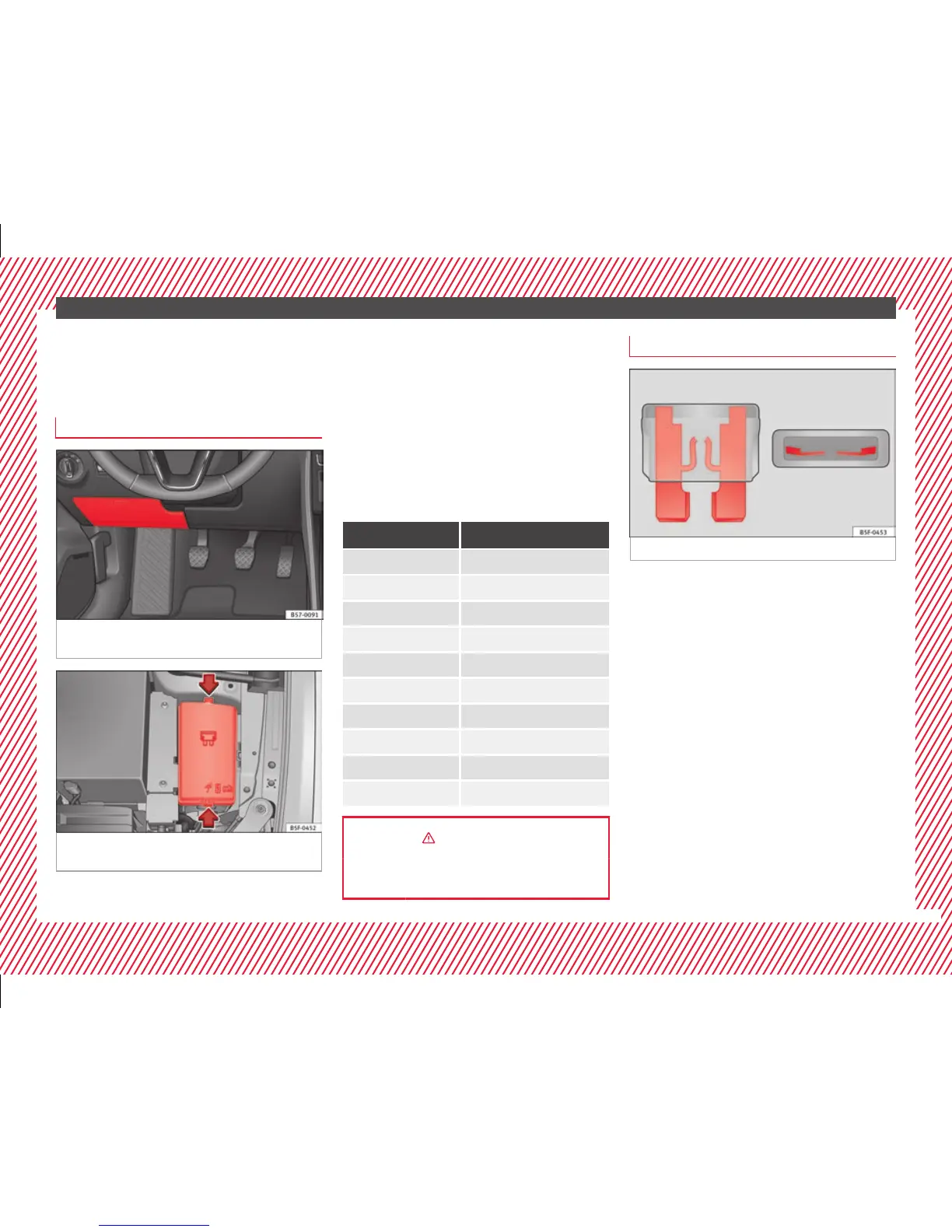

Fuse location
Fig. 64 On the driver-side dash panel: fuse
bo
x
cover
Fig. 65 In the engine compartment: fuse box
c
o
ver
Underneath the instrument panel
The f
u
se box is located behind the storage
compartment ››› Fig. 64.
In the engine compartment
Press the locking tabs to release the fuse box
cover ››› Fig. 65.
Identifying fuses situated below the dash
panel by colours
Colour Amp rating
Black 1
Purple 3
Light brown 5
Brown 7.5
Red 10
Blue 15
Yellow 20
White or transparent 25
Green 30
Orange 40
››› in Introduction on page 90
››› page 90
Replacing a blown fuse
Fig. 66 Image of a blown fuse
Preparation
●
Switch off the ignition, lights and all elec-
tric
al
equipment.
●
Open the corresponding fuse box
›››
page 91.
Identifying a blown fuse
A fuse is blown if its metal strip is ruptured
››› Fig. 66.
●
Point a lamp at the fuse to see if it has
blown.
To replace a fuse
●
Remove the fuse.
●
Replace the blown fuse by one with an
identical amperage rating (same colour and
markings) and identical size.
»
51
