Seca 264 - Installing the Push-In Scale

52 •
Installing the push-in
scale
ATTENTION!
Incorrect measurements due to installation
errors
If the push-in scale is installed incorrectly the
head slide cannot determine any usable
readings.
− Align the push-in scale so that the printing
remains visible when the scale is pushed into
the groove.
− Align the push-in scale so that the area which
shows the product number forms the bottom
end.
− Ensure that the push-in scale latches into
position under the end cap.

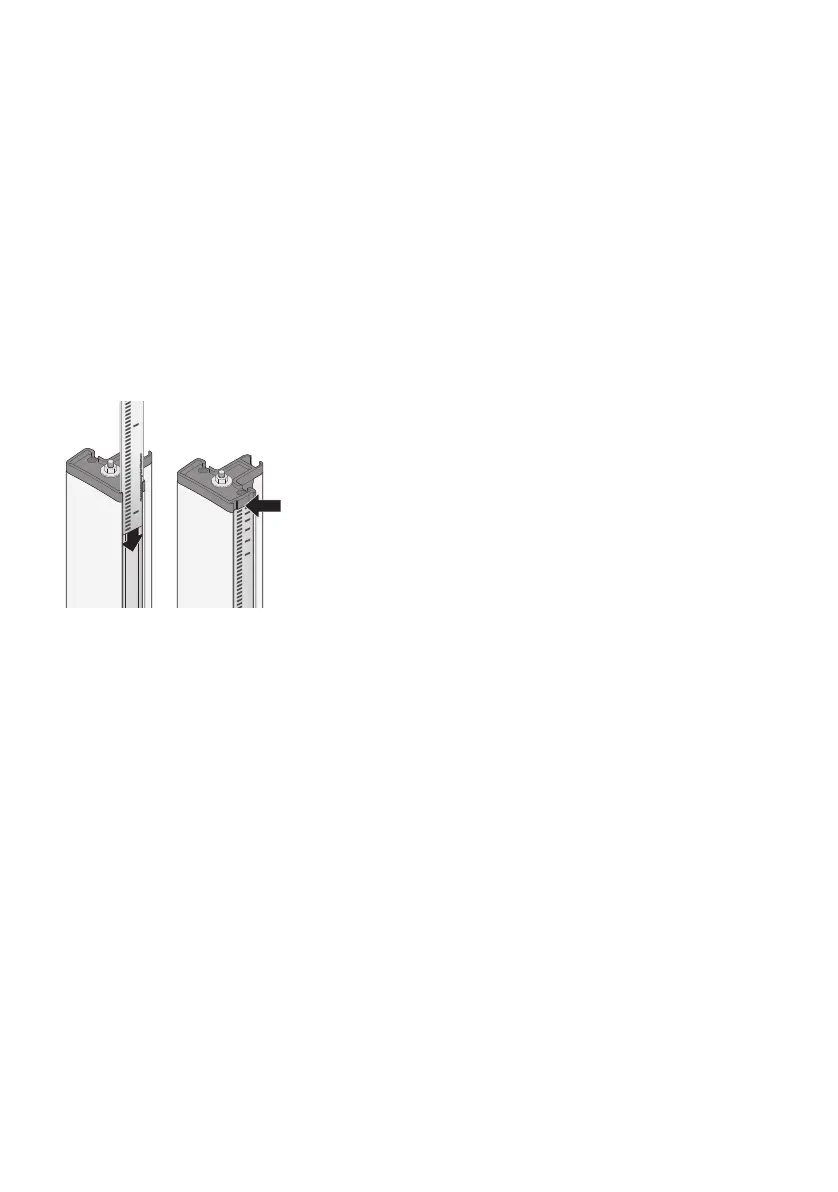

♦ Push the push-on scale into the groove in the side
of the column elements until the scale latches into
position under the end cap.
