Seca 264 - Installing the Slot Bolts

54 •
4. Remove the slot bolts from the wall brackets.
5. Mount the wall brackets using the screws (M6x60).
6. Use a spirit level to align the wall brackets
perpendicularly with each other.
7. Tighten the screws of the wall brackets.

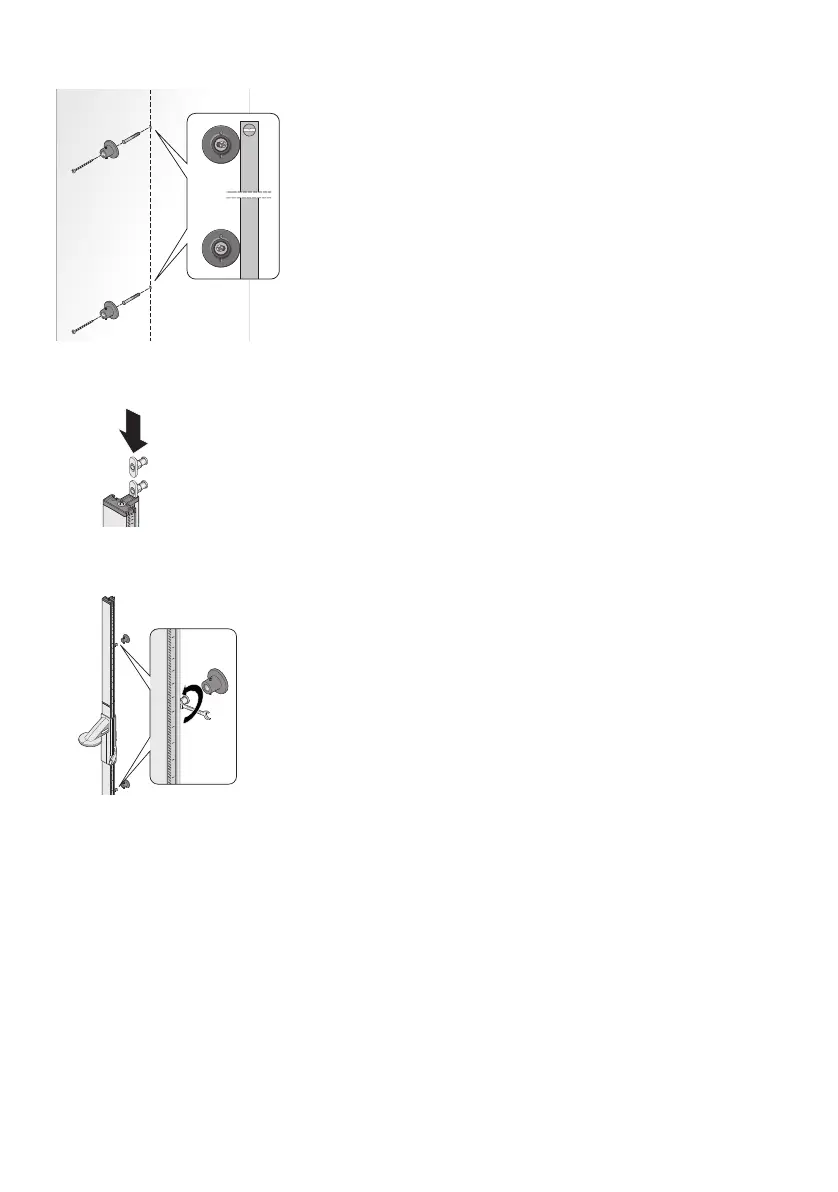

Installing the slot bolts To install the slot bolts, proceed as follows:
1. Insert the slot bolts into the groove of the column
elements.
2. Position the slot bolts in the groove:
– The distance between the slot bolts must
correspond to the spacing between the wall
brackets.
– The heel stop must be on the floor when the
device is positioned in the wall brackets.
3. Use an open-ended spanner (size 13) to tighten the
slot bolts in the groove.
